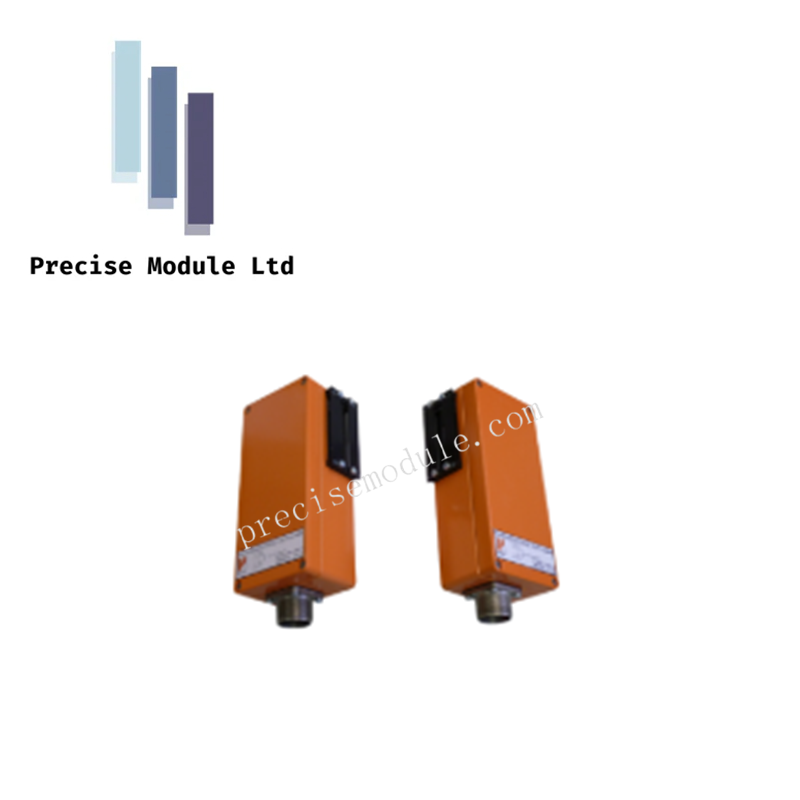

Fotoelektrik Pauly YV/R26/2/2M12/r1 Reflex-Optic Head

Description

The YV/R26/2/2M12/r1 reflex-optic head from Fotoelektrik Pauly is engineered for industrial automation tasks requiring long-range, non-contact detection. It offers reliable performance in harsh environments and supports both infrared and visible light transmission.

Specifications

• Product Type: Reflex-optic head

• Model: YV/R26/2/2M12/r1

• Manufacturer: Fotoelektrik Pauly

• Working Range (Without Pre-Amplifier): Up to 10 meters

• Working Range (With Pre-Amplifier): Extends to 25 meters

• Optional Range (With GR50S Reflector): Up to 50 meters

• Transmitting Light – Infrared LED: 850–880 nm (invisible spectrum)

• Transmitting Light – Red-light LED: 650 nm (visible spectrum)

• Optical Cable Length (Optional): Up to 40 meters

• Power Supply: Provided via control unit

• Control Output: Integrated within control unit

• Housing Material: Cast aluminum

• Protection Mode: IP65 (dustproof and water-resistant)

• Display: LED switch indicator

• Connection Mode: Terminal block

• Dimensions (W × H × D): Approx. 57 × 125 × 80 mm

• Ambient Temperature Range: –25°C to +100°C

Features

• Extended Detection Range: Operates up to 50 meters with reflector support

• Dual LED Transmission: Offers both infrared and red-light options for flexible sensing

• Rugged Construction: Cast aluminum housing ensures durability in industrial settings

• Environmental Protection: IP65 rating guards against dust and water ingress

• Integrated Control Output: Simplifies system wiring and signal processing

• Wide Temperature Tolerance: Functions reliably from –25°C to +100°C

• LED Indicator Display: Provides clear visual feedback for operational status

• Modular Cable Options: Supports up to 40 meters of optical cable for remote setups

• Compact Design: Fits easily into automation panels and sensor arrays

• Reliable Performance: Designed for continuous use in demanding automation environments
