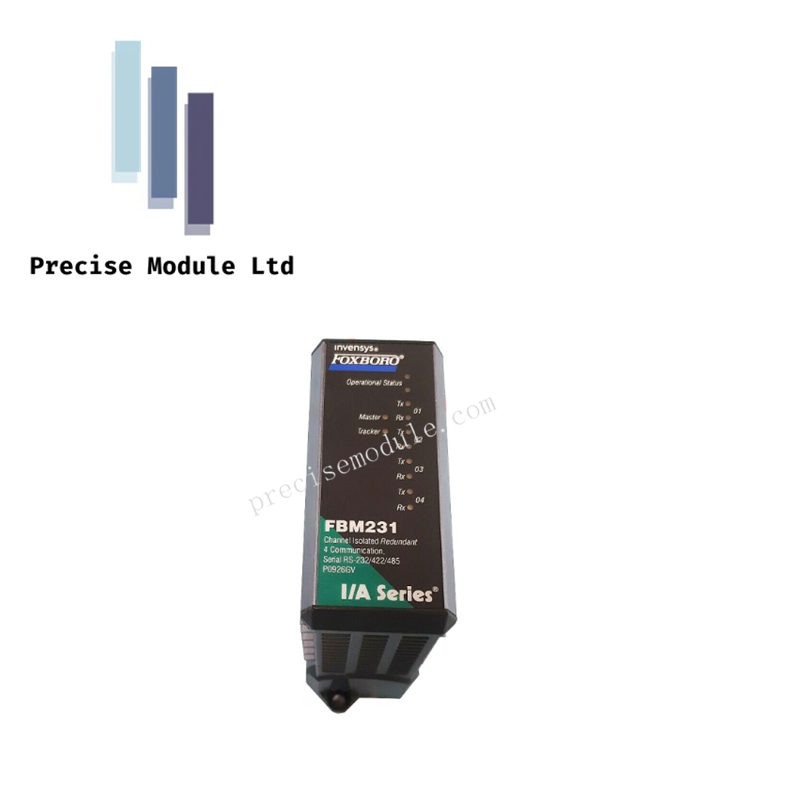

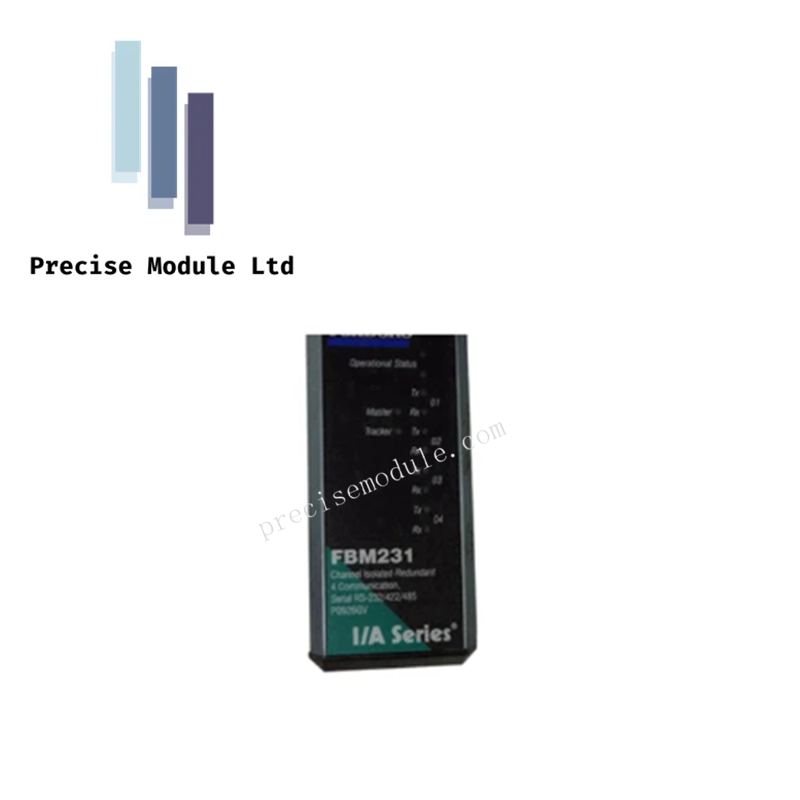

FOXBORO FBM231 P0926GV Field Device System Integrator Module

Description

The FBM231 P0926GV module from Foxboro is a field device system integrator designed for redundant Fieldbus communication. One module operates as the master while the second acts as a tracker, ensuring continuous operation and fault tolerance in critical control systems.

Specifications

• Model: FBM231 P0926GV

• Manufacturer: Foxboro

• Product Type: Field device system integrator module

• Operating Temperature: –20°C to +70°C (–4°F to +158°F)

• Storage Temperature: –40°C to +70°C (–40°F to +158°F)

• Relative Humidity: 5% to 95%, non-condensing

• Contamination Rating: Suitable for ISA Class G (harsh environments), tested to Standard 364-65, Class III

• Mounting Options:

  • Modular baseplate (horizontal or vertical DIN rail)

  • 19-inch rack with mounting kit

• Module Dimensions:

  • Height: 102 mm (4 in)

  • Width: 45 mm (1.75 in)

  • Depth: 104 mm (4.11 in)

• Module Weight: Approximately 284 g (10 oz)

• Termination Assembly Options:

  • P0926PA (Ring Lug): Approx. 363 g (0.8 lb)

  • P0926GH (Compression Screw): Approx. 272 g (0.6 lb)

Features

• Redundant Module Pairing: One module serves as master, the other as tracker for fail-safe operation

• Flexible Mounting: Supports DIN rail and 19-inch rack installations

• Harsh Environment Ready: Rated for Class G contamination and wide temperature ranges

• Compact Form Factor: Slim profile fits easily into dense control cabinets

• Modular Design: Integrates with Foxboro baseplates and termination assemblies

• Reliable Fieldbus Communication: Ensures uninterrupted data flow from field devices

• Multiple TA Options: Supports both ring lug and compression screw terminations

• Lightweight Construction: Easy to handle and install

• Industrial Durability: Built for long-term use in power, chemical, and process industries

• Field Proven: Trusted in mission-critical automation systems worldwide
