GE 369-HI-0-0-0-0-0-E Motor Management Relay Fast Shipping

Brand: GE Fanuc

Condition: 100% New Original

Payment Terms: T/T

Minimum Order Quantity: 1pc

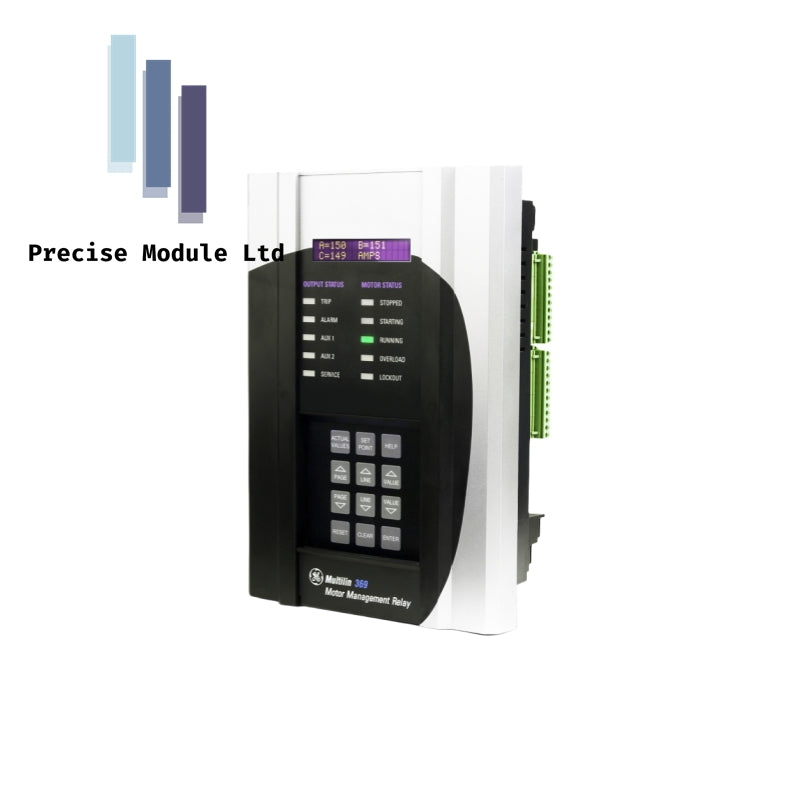

Product Description: GE 369-HI-0-0-0-0-0-E Motor Management Relay

The GE 369-HI-0-0-0-0-0-E is a sophisticated motor protection relay designed to provide comprehensive protection for medium and large motors. This device is engineered to ensure the longevity and efficiency of motor operations by monitoring key parameters and providing timely interventions in the event of anomalies. It integrates advanced protection, control, and monitoring functions into a single, user-friendly package, making it an ideal solution for industries such as oil and gas, power generation, water treatment, and manufacturing. With its robust construction and advanced diagnostic capabilities, the GE 369-HI-0-0-0-0-0-E helps in minimizing downtime and reducing maintenance costs.

Features:

• Comprehensive Motor Protection: Provides protection against overloads, phase imbalances, ground faults, and other common motor issues.
• Advanced Monitoring: Real-time monitoring of motor conditions, including temperature, current, and voltage.
• User-Friendly Interface: Intuitive display and configuration options for ease of use.
• Diagnostic Capabilities: Built-in diagnostic tools for easy troubleshooting and maintenance.
• Communication Options: Supports multiple communication protocols for seamless integration into existing systems.
• Flexible Configuration: Easily configurable to meet the specific needs of various applications.
• Event Logging: Detailed event logging to help in analyzing and improving motor performance.

Technical Specifications:

• Input Voltage: 24-48 VDC, 48-125 VDC, 110-120 VAC, 220-240 VAC
• Frequency: 50/60 Hz
• Current Inputs: 1 A and 5 A nominal
• Overload Protection: Adjustable from 0.1 to 6.0 times the full load current
• Ground Fault Protection: Sensitivity range from 1% to 60% of the motor's full load current
• Operating Temperature: -20°C to +60°C
• Communication Ports: RS485, Ethernet (optional)
• Dimensions: 6.7 x 6.3 x 7.5 inches (170 x 160 x 190 mm)
• Weight: 6.5 lbs (3 kg)
