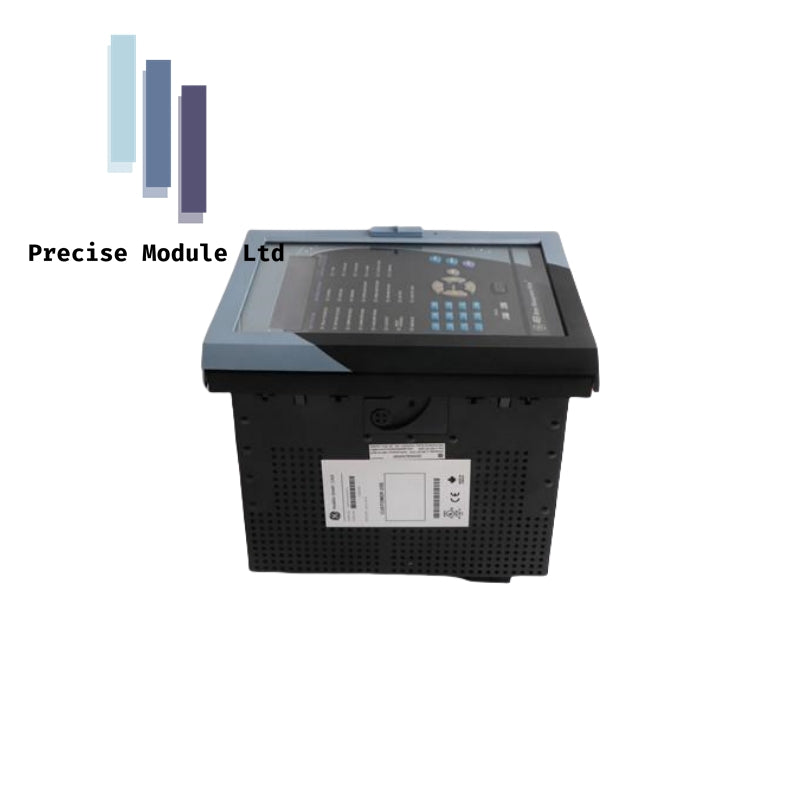

GE 469-P5-HI-A20-E Motor Protection Relay Preferential Price

Brand: GE Fanuc

Condition: 100% New Original

Payment Terms: T/T

Minimum Order Quantity: 1pc

Product Description: GE 469-P5-HI-A20-E Motor Protection Relay

The GE 469-P5-HI-A20-E is a sophisticated motor protection relay designed for high-performance applications in industrial environments. It is part of the GE Multilin 469 series, which is known for providing comprehensive protection and control for medium and large motors. The relay is engineered to enhance motor performance and reliability by offering advanced diagnostics, automation, and communication features. It is equipped with an intuitive interface for easy configuration and monitoring, making it a valuable asset for ensuring operational efficiency and reducing downtime. The GE 469-P5-HI-A20-E is particularly suitable for applications requiring precise motor protection, including overload, short circuit, and ground fault protection.

Features

• Advanced Protection Functions: Provides comprehensive protection including overload, short circuit, ground fault, phase unbalance, and undercurrent.
• High Accuracy: Ensures precise monitoring and control with high-accuracy current and voltage measurements.
• Flexible Communication: Supports multiple communication protocols such as Modbus RTU, DNP 3.0, and IEC 61850 for seamless integration into various control systems.
• User-Friendly Interface: Features a large LCD display and intuitive keypad for easy configuration and real-time monitoring.
• Diagnostics and Monitoring: Advanced diagnostics capabilities help in identifying and troubleshooting issues, thereby reducing maintenance time.
• Programmable Logic: Customizable logic allows for tailored control schemes to meet specific application requirements.
• Rugged Design: Built to withstand harsh industrial environments, ensuring reliable operation under extreme conditions.

Technical Specifications

• Control Power Supply: 90-300 VDC or 70-265 VAC
• Current Input: 1A and 5A selectable
• Voltage Input: 0-300 V phase-to-neutral, 0-600 V phase-to-phase
• Frequency: 50/60 Hz
• Communication Ports: RS485, RS232, Ethernet
• Protocols Supported: Modbus RTU, DNP 3.0, IEC 61850
• Operating Temperature: -40°C to +60°C
• Storage Temperature: -40°C to +85°C
• Dimensions: 282mm x 208mm x 216mm
• Weight: Approximately 4.5 kg
