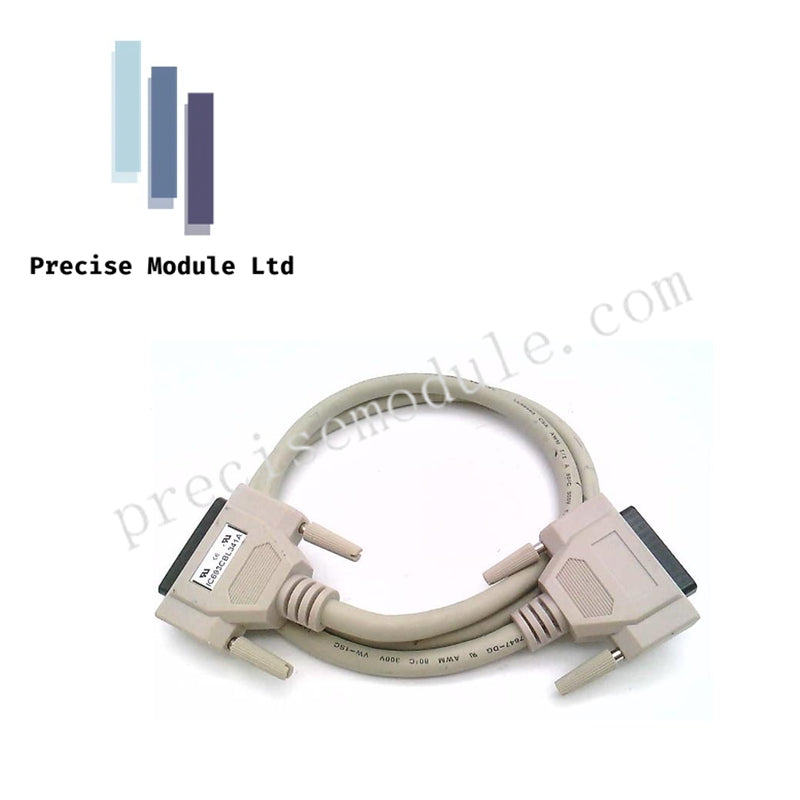

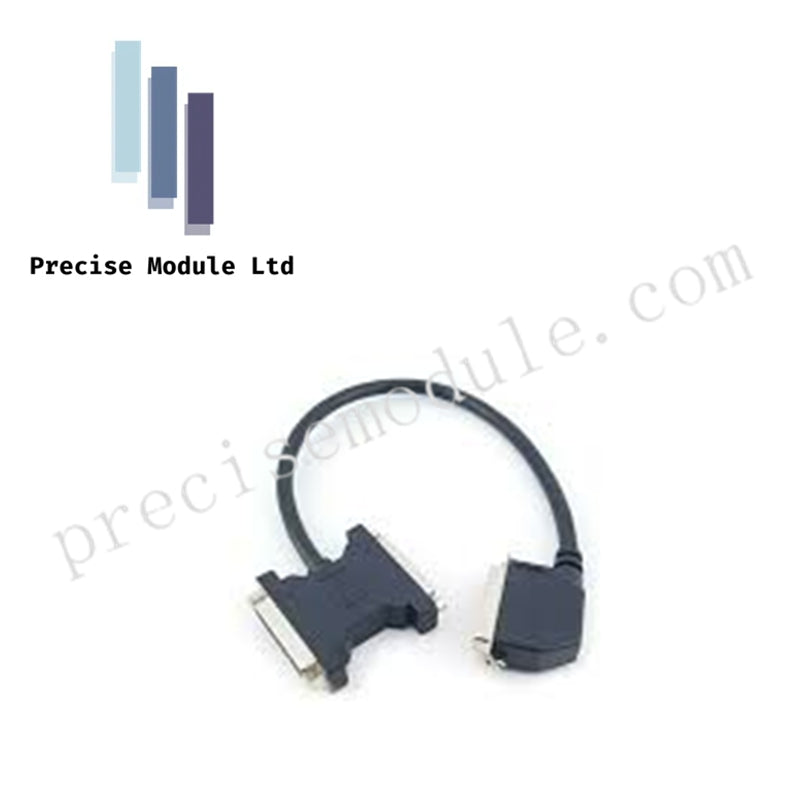

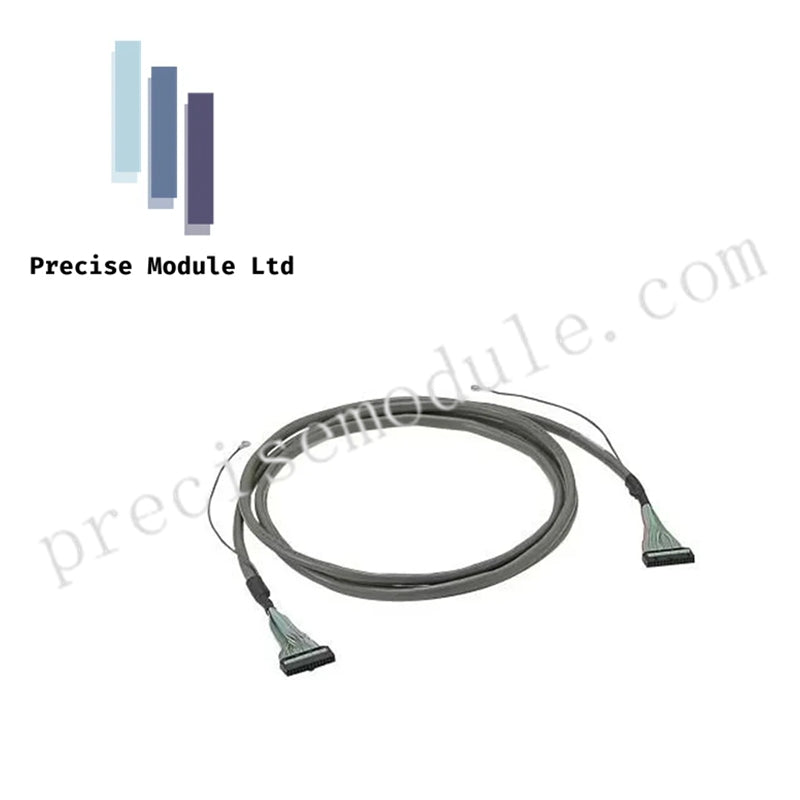

GE Fanuc IC693CBL341 Shielded I/O Interface Cable for Series 90-30 PLC, 3ft

Product Description:

The GE Fanuc IC693CBL341 is a high-quality Shielded I/O Interface Cable designed specifically for the GE Fanuc Series 90-30 and PACSystems RX3i PLC systems (now supported by Emerson Automation). This 3-foot (1-meter) cable assembly enables easy connection between high-density I/O modules and external terminal blocks or remote termination panels, making it an essential component for expanding your automation system.

The IC693CBL341 cable is equipped with a 40-pin female Fujitsu-style connector on one end, which plugs directly into the face of compatible Series 90-30 I/O modules. The other end of the cable features a pigtail-style blunt-cut termination with tinned wires, which can be custom-wired into a terminal strip or specific distribution block.

Key Features:

• High-Density Connectivity:
  Supports up to 32 discrete I/O points in a compact 40-pin configuration, ideal for applications that require high-density input/output capabilities.

• Shielded Protection:
  The cable features braided shielding with a drain wire, reducing electromagnetic interference (EMI) and ensuring the integrity of low-voltage DC signals, especially when routed near power lines.

• Rugged Construction:
  Built for industrial environments, the cable includes strain-relief molding at the connector head to prevent physical damage during installation and use.

• Color-Coded Wires:
  Each of the 40 conductors is color-coded, following the standard Telco/Fujitsu color scheme for easier point-to-point wiring and fewer chances of cross-wiring.

Technical Specifications:

Compatibility and Usage:

This cable is ideal for connecting high-density I/O modules in the Series 90-30 system and can be used with the following modules:

• IC693MDL654: 24 VDC Input Module (32 Points)

• IC693MDL655: 24 VDC Input Module (32 Points)

• IC693MDL752: 24 VDC Output Module (32 Points)

• IC693MDL753: 24 VDC Output Module (32 Points)

It is especially useful in scenarios where space and wiring density are critical, and it ensures that high-speed, high-voltage signals are managed with minimal interference.

Installation Best Practices:

• Bend Radius:
  Avoid sharp bends at the connector exit. Leave at least 2 inches (50 mm) of clearance for strain relief to prevent damage to the cable.

• Grounding:
  Properly ground the shield drain wire at the PLC chassis or terminal rail to maintain noise immunity and prevent electromagnetic interference.

• Labeling:
  Given that this cable contains 40 individual wires, it is strongly recommended to use the GE color-code chart provided in the Series 90-30 I/O Module Specifications Manual during installation. This will help avoid incorrect wiring and ensure proper channel configuration.

• Cable Length Options:
  If you need a longer cable, alternatives like IC693CBL327 (10 feet) or IC693CBL328 (50 feet) are available, both with the same 40-pin configuration.
