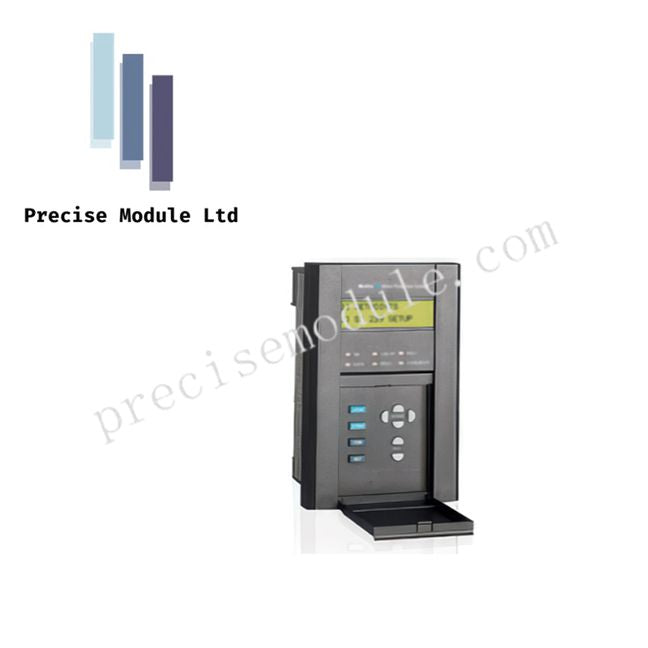

GE GE239 Heavy-Duty Engine / Motor Protection Relay | Industrial Control

Product Description

Overview

The GE239 is a high-performance industrial engine or motor protection relay designed to safeguard three-phase AC motors and associated mechanical systems. It delivers comprehensive protection against overloads, phase imbalance, short circuits, and mechanical faults, while providing advanced monitoring, diagnostics, and maintenance capabilities.

Although manufacturing of the GE239 has been discontinued, compatible alternatives include the GE339, GE859, GE869, and P24 Agile relays.

This model is widely deployed in industrial environments such as power plants, manufacturing facilities, and process control systems where reliability, precision, and safety are critical. A Harsh Environment Conformal Coating option is available for extreme conditions.

Key Features

• Compact Design: Reduces installation space and simplifies integration into control panels.

• Advanced Motor Protection: Uses thermal models and selectable trip curves to prevent motor damage.

• Flexible Settings: Multiple setpoint groups for customized protection strategies.

• Built-In Simulation: Facilitates testing and verification without interrupting operations.

• Temperature Monitoring: Optional RTD inputs allow real-time asset health monitoring.

• Communication Ready: Supports Modbus RTU™ for seamless data access.

• Field Upgradeable: Flash memory enables software updates for evolving control requirements.

Protection & Control Functions

• Thermal overload protection with 15 selectable curves

• Phase short circuit and mechanical jam detection

• Single-phasing and current imbalance monitoring

• Ground fault trip and alarm

• Overtemperature protection via thermistor or optional RTD

• Undercurrent monitoring and breaker failure detection

• Multi-speed motor supervision and start-up management

• Trip/alarm/auxiliary outputs for integration with control logic

Monitoring & User Interface

• Status display for current, temperature, and operational conditions

• Fault diagnosis with last five trip records

• Optional analog output for process control feedback

• RS485 serial port connectivity

• Keypad with 40-character illuminated display and 6 LED indicators

• Compatible with EnerVista Setup software for configuration and diagnostics

Technical Specifications

Applications

• Complete protection of small to medium-sized motors

• Pumps, conveyors, compressors, fans

• Sawmills, mining operations, and heavy industrial machinery

• Gas turbine or engine-driven generator systems

Comparison & Alternatives

• GE239 vs GE339/859/869/P24 Agile: Modern relay alternatives provide updated digital control, enhanced diagnostics, and extended environmental ratings.

• Engine vs Relay Function: GE239 may refer to either the relay for motor protection or a medium-speed industrial engine used in marine and power generation. Confirm the intended use before selection.

FAQ

Q1: Can the GE239 operate in harsh environments?
A: Yes, it is designed for high vibration, temperature variations, and electrical noise.

Q2: What motors or equipment is it compatible with?
A: Small to medium-sized three-phase AC motors, pumps, fans, and compressors.

Q3: Are there replacement options?
A: Yes, consider the GE339, GE859, GE869, or P24 Agile relays for new installations.

Q4: How does it simplify maintenance?
A: Built-in simulation, fault logging, and digital communication enable streamlined diagnostics and testing.
