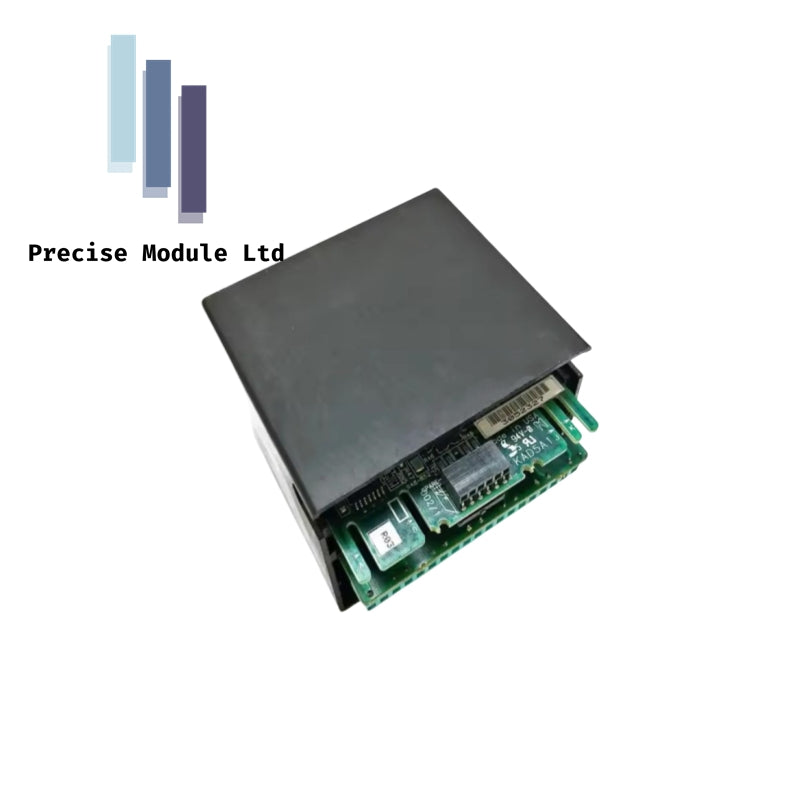

GE IC670ALG310 Rx7i PACSystem Isolated Analog Output Module

Brand: GE Fanuc

Condition: 100% New Original

Payment Terms: T/T

Minimum Order Quantity: 1pc

Product Description: GE IC670ALG310 Rx7i PACSystem Isolated Analog Output Module

The GE IC670ALG310 is an analog input module from the GE Fanuc VersaMax I/O series, designed to offer flexible and reliable analog signal processing for various industrial automation applications. This module features eight single-ended analog input channels, which can be used for either voltage or current signals. It supports input ranges of 0-10V, ±10V, 0-20mA, and 4-20mA, making it suitable for a wide range of sensors and transducers used in industrial processes.

The IC670ALG310 is known for its high accuracy and resolution, ensuring precise data acquisition essential for control and monitoring systems. The module is engineered to provide robust performance even in harsh industrial environments, thanks to its high immunity to electrical noise and temperature variations. The compact and modular design of the VersaMax I/O series allows for easy installation and scalability, making it ideal for both small-scale and large-scale automation systems. Additionally, the module supports various diagnostic features that help in troubleshooting and maintenance, enhancing overall system reliability and uptime.

Features

• Eight Analog Input Channels: Supports eight single-ended analog inputs for versatile application.
• Multiple Input Ranges: Compatible with 0-10V, ±10V, 0-20mA, and 4-20mA input signals.
• High Accuracy and Resolution: Ensures precise data acquisition for critical control and monitoring tasks.
• Noise Immunity: Designed to operate reliably in environments with high electrical noise.
• Modular Design: Facilitates easy installation, expansion, and maintenance.

Technical Specifications

• Number of Channels: 8 single-ended
• Input Signal Ranges: 0-10V, ±10V, 0-20mA, 4-20mA
• Resolution: 12 bits
• Input Impedance: 10 MΩ for voltage inputs; 250 Ω for current inputs
• Accuracy: ±0.1% of full scale
• Isolation: 500V between field and logic side
• Update Rate: 10 ms per channel
• Power Supply: 24 VDC
• Operating Temperature: -20°C to +60°C
• Dimensions: 110 mm x 70 mm x 60 mm
• Weight: 150 g
