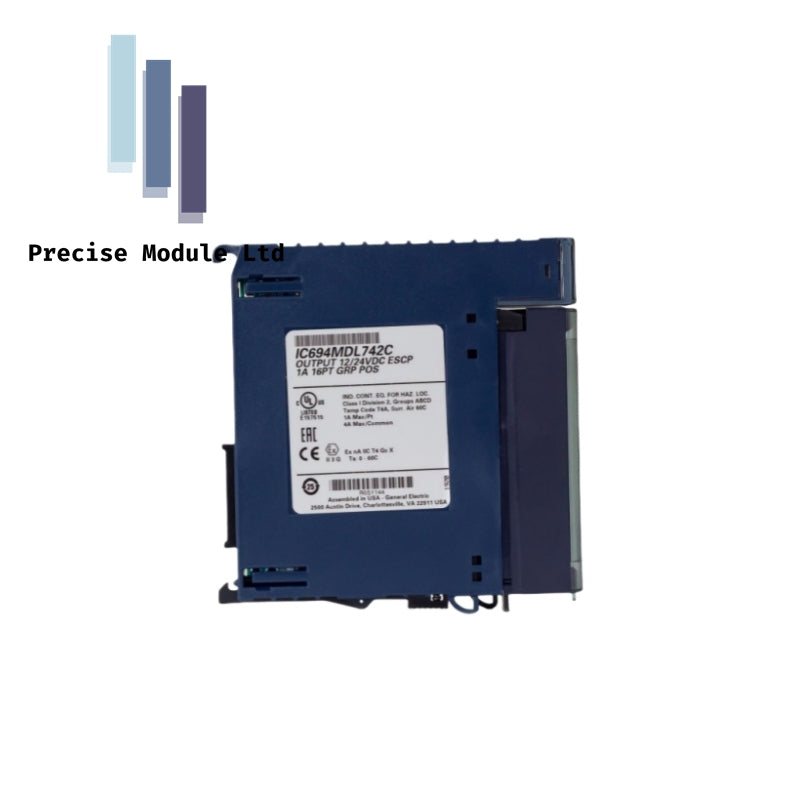

GE IC694MDL742 Rx3i DC Voltage Output Module New Arrival

Brand: GE Fanuc

Condition: 100% New Original

Payment Terms: T/T

Minimum Order Quantity: 1pc

Product Description: GE IC694MDL742 Rx3i DC Voltage Output Module

The GE IC694MDL742 is a 12/24-volt DC Positive/Negative Logic Input Module designed for use within the RX3i PACSystem. It features 16 input points, providing a compact and efficient solution for industrial automation applications. This module is ideal for applications requiring high-speed inputs, ensuring reliable and precise control of various processes. The IC694MDL742 supports positive and negative logic, making it versatile and adaptable to different wiring configurations. Its design emphasizes ease of installation and maintenance, with features such as LED indicators for each input point, aiding in quick troubleshooting and system monitoring. The module’s robust construction ensures durability and longevity, making it suitable for harsh industrial environments.

Features

• Versatile Logic Support: Compatible with both positive and negative logic inputs, allowing for flexible integration into various system configurations.
• High-Speed Inputs: Designed to handle high-speed signals, making it suitable for applications requiring quick response times.
• Compact Design: The 16 input points are housed in a compact module, optimizing space within control panels.
• LED Indicators: Each input point is equipped with an LED indicator, facilitating easy monitoring and troubleshooting.
• Robust Construction: Built to withstand demanding industrial environments, ensuring long-term reliability and performance.
• Ease of Installation: Simple to install with clear terminal labeling, reducing setup time and potential errors.
• RX3i PACSystem Compatibility: Seamlessly integrates with GE's RX3i PACSystem, providing a cohesive and efficient automation solution.

Technical Specifications

• Input Voltage Range: 12/24 VDC
• Number of Input Points: 16
• Input Current: 7 mA per point
• Response Time: 0.5 ms for On to Off, 1 ms for Off to On
• Input Impedance: 3.4 kΩ
• Logic Levels: Positive and Negative logic
• Positive Logic: 0 to +5 VDC (Low), +15 to +30 VDC (High)
• Negative Logic: 0 to +5 VDC (High), +15 to +30 VDC (Low)
• Isolation: 1500 VDC
• Backplane Power Consumption: 120 mA @ 5 VDC
• Operating Temperature Range: 0°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Dimensions: 50.8 mm  x 118 mm  x 70 mm
