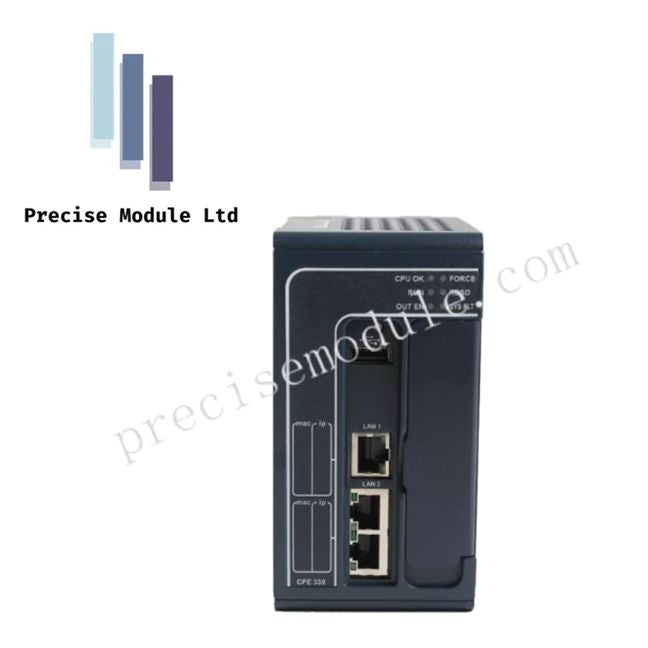

GE IC695CPE330 PACSystems RX3i CPU Controller High-Speed Processor

Product Description

Overview

The IC695CPE330 from GE PACSystems RX3i is a high-performance rack-mounted central processing unit designed for complex automation tasks. It combines a 1 GHz dual-core processor with 64 MB of user memory, making it ideal for high-speed logic execution, large-scale data handling, and multi-tier industrial connectivity. This CPU supports extensive I/O, network protocols, and redundancy options, providing engineers with flexibility for demanding applications.

Key Features

• 1 GHz dual-core Intel processor for fast control and data processing

• 64 MB of configurable user memory and 64 MB of non-volatile flash storage

• Two independent 10/100/1000 Mbps Ethernet ports plus one additional internal port

• Supports up to 48 simultaneous SRTP server connections and 16 Modbus TCP servers

• OPC-UA server with five concurrent sessions, 12,500 variables, and ten subscriptions per session

• PROFINET I/O controller support for up to 32 devices, update rates from 1 ms to 512 ms

• Hot standby redundancy and dual IP addresses for critical uptime

• Achilles Level 2 certified for industrial cybersecurity

• USB 2.0 A interface for removable data storage

• HART pass-through for asset management and monitoring

• Compatible with Ladder Diagram, Structured Text, Function Block, and C programming

Applications

The IC695CPE330 excels in applications requiring multi-discipline control such as:

• Discrete manufacturing and process automation

• Motion control and robotics synchronization

• Industrial IoT and edge computing

• Redundant networked control systems with high-speed data exchange

Technical Specifications

FAQ

Q: Can the IC695CPE330 run both discrete and motion control simultaneously?
A: Yes, it is capable of multi-discipline control including discrete, process, and motion applications.

Q: What is the maximum number of I/O devices supported via PROFINET?
A: Up to 32 devices, with update rates ranging from 1 ms to 512 ms depending on device count.

Q: Does it support remote monitoring?
A: Yes, via OPC-UA server, Modbus/TCP, and EGD protocols for industrial IoT and cloud integration.

Q: Can it be replaced while the system is powered?
A: The module supports hot-swappable configurations depending on the backplane setup.
