Overview

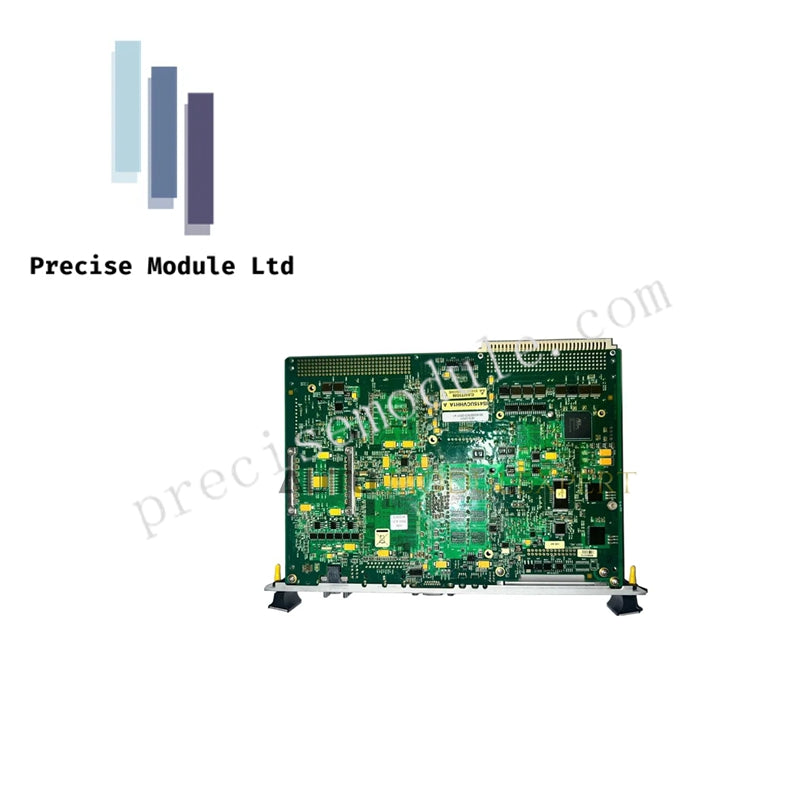

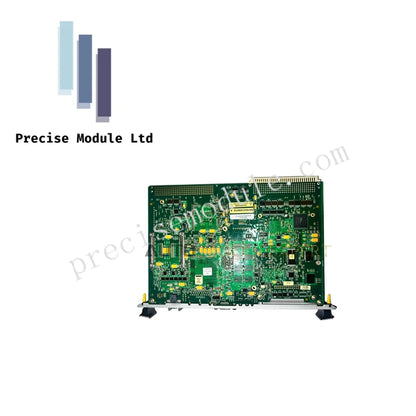

The GE IS400UCLIH1A is a Unit Control Layer (UCL) Processor board designed for Mark VIe and Mark VIeS (Safety) control systems. This high-performance processor is built for mission-critical industrial applications such as gas and steam turbine control, where reliability and speed are paramount. The IS400UCLIH1A provides precise computational control, offering real-time processing of turbine control loops, advanced diagnostics, and multiple redundancy features to ensure continuous operation even in the case of a fault.

Key Features

1. High-Speed Processing
   The IS400UCLIH1A features an Intel-based high-speed microprocessor, capable of executing control loops at fast task rates of 10ms to 40ms, ensuring responsive control in demanding industrial environments. Running on the QNX Neutrino real-time operating system, it offers deterministic performance and robust immunity to software failures.

2. Triple Redundant Communication (IONet)
   Equipped with three Ethernet ports dedicated to IONet, the processor ensures triple-redundant communication. This design provides three independent communication paths (R, S, and T), preventing interruptions in control caused by cable failures or network issues, which is critical for high-availability applications like turbine control.

3. Integrated Diagnostics and Status Indicators
   The IS400UCLIH1A includes LED status indicators for real-time feedback on key operational parameters:

• Status/Fault Indicators: Displays the overall health of the processor.

• Ethernet Link/Activity: Indicates the connectivity status to the IONet.

• Flash Access: Monitors data read and write activity.

4. Flexible Software Integration
   The IS400UCLIH1A is programmable and configurable using GE ControlST software suite, including ToolboxST. It supports online editing, enabling engineers to modify application logic in real-time without taking the system offline, which is critical for maintaining continuous turbine operation.

5. Safety and Reliability
   In Mark VIeS configurations, the IS400UCLIH1A meets the SIL 2/SIL 3 standards, providing functional safety for Safety Instrumented Systems (SIS), including emergency shutdown applications. This ensures that the control system can respond safely and accurately during critical situations.

Technical Specifications

Applications

The GE IS400UCLIH1A processor board is integral to control systems in various industrial applications, particularly for turbine control in power generation. Specific use cases include:

• Gas Turbine Control: Managing critical variables such as fuel flow, combustion monitoring, and exhaust temperature.

• Steam Turbine Control: Regulating speed, load, and managing auxiliary systems such as extraction valves.

• Balance of Plant (BOP): Coordination of auxiliary systems in large-scale power plants, ensuring optimal performance and efficiency.

• Safety Instrumented Systems (SIS): In the Mark VIeS configuration, the IS400UCLIH1A provides functional safety for emergency shutdowns and other critical safety operations in industrial settings.

FAQ

Q: What is the role of the IS400UCLIH1A in turbine control systems?
A: The IS400UCLIH1A serves as the primary computational engine for managing turbine operations, including fuel flow control, monitoring combustion conditions, and ensuring safety and efficiency through real-time control loops.

Q: How does the IS400UCLIH1A ensure reliability in case of network failures?
A: The IS400UCLIH1A features triple-redundant Ethernet communication (IONet), ensuring that if one communication path fails, two other independent paths are still available, preventing interruptions in control.

Q: What is the maximum power input for the IS400UCLIH1A?
A: The IS400UCLIH1A operates with a nominal input of 28 VDC, with an input voltage range of 18 to 30 VDC, making it adaptable to a wide range of industrial systems.

Q: Can the IS400UCLIH1A be used for safety-critical applications?
A: Yes, in Mark VIeS configurations, the IS400UCLIH1A supports SIL 2 and SIL 3 standards, making it suitable for safety-critical applications such as emergency shutdowns and functional safety monitoring.
