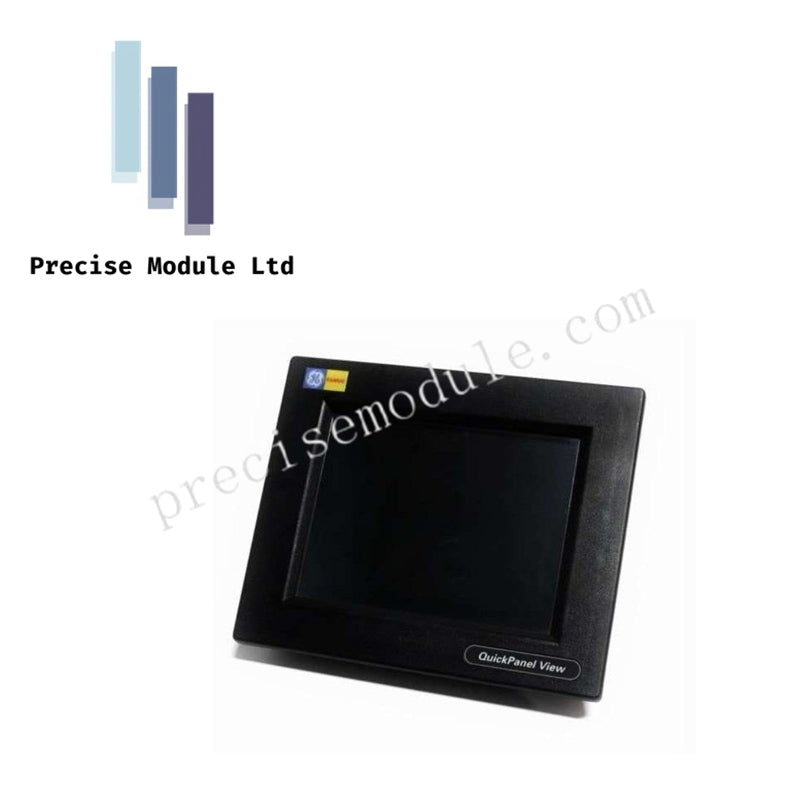

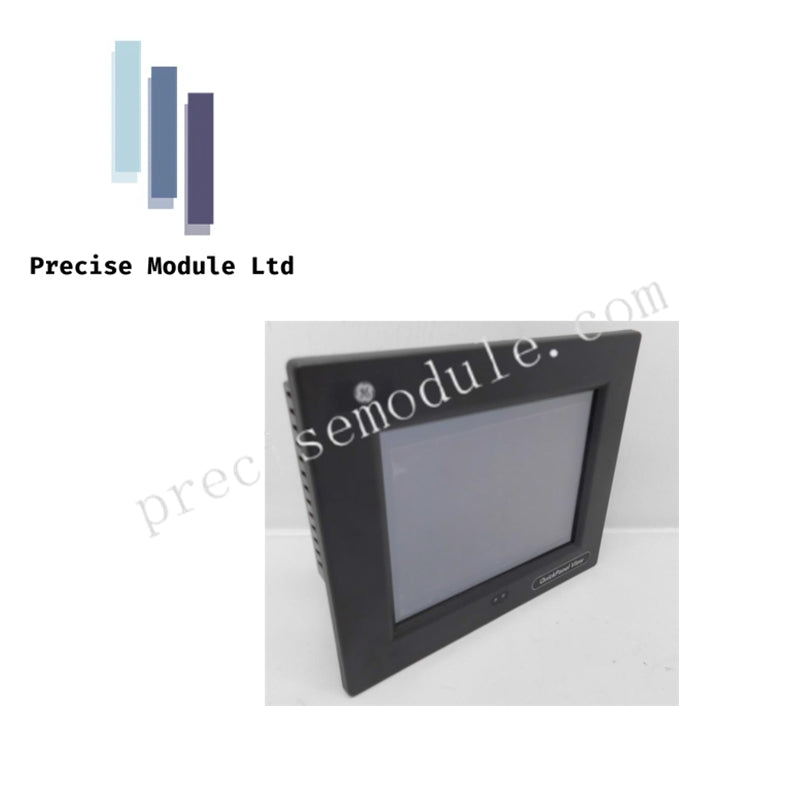

GE IC754VGI08CTD QuickPanel+ 8" HMI Operator Interface Panel

GE IC754VGI08CTD QuickPanel+ 8" HMI Operator Interface Panel

  • Manufacturer: GE

  • Product No.: IC754VGI08CTD

  • Condition：in Stock

  • Product Type: IC754VGI08CTD

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 720g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The IC754VGI08CTD from GE QuickPanel+ series is an 8-inch color touchscreen HMI designed for seamless integration with GE PACSystems PLCs. This compact panel delivers real-time visualization, operator interaction, and process monitoring in demanding industrial environments.

Processing and Performance

  • CPU: 1.0 GHz Freescale i.MX535, ARM Cortex A8

  • Operating System: Windows Embedded Compact 7 (WEC7)

  • Handles high-resolution graphics and complex HMI applications without lag

  • Supports fast response to alarms and operational changes

Display and Touch

  • Display: 8-inch TFT LCD, 16 million colors

  • Resolution: 800 x 480 pixels (WVGA)

  • Touchscreen: Projected Capacitive (P-Cap) multi-touch for gesture control

  • LED backlight with typical lifespan of 50,000 hours

Memory and Storage

  • RAM: 512 MB DDR2

  • Flash Storage: 256 MB SLC NAND for OS and user applications

  • Non-volatile SRAM: 512 KB for critical data retention

Connectivity and Communication

  • Dual 10/100 Mbps Ethernet ports for network redundancy or separate LAN/WAN connections

  • Serial Ports: RS-232 and RS-485 for legacy devices

  • USB 2.0 Type-A for peripherals, Mini USB Type-B for programming

  • SD/SDHC slot for additional storage or data logging

  • Protocol Support: Modbus RTU/TCP, Ethernet/IP, DF1, optional Profibus

Environmental and Installation Features

  • Panel Mounting: Slim profile ideal for limited-space control panels

  • Protection Rating: IP65 front panel, NEMA 4X

  • Operating Temperature: 0°C to 55°C

  • Certifications: UL, CE, Class I Div 2 for hazardous locations

Technical Specifications

Feature Specification
Processor 1.0 GHz ARM Cortex A8
Display 8" TFT LCD, 16M Colors
Resolution 800 x 480 WVGA
Touchscreen Projected Capacitive Multi-Touch
Operating System Windows Embedded Compact 7
RAM 512 MB DDR2
Flash Storage 256 MB SLC NAND
Non-volatile Memory 512 KB SRAM
Ethernet 2 x 10/100 Mbps
Serial Ports RS-232, RS-485
USB Type-A and Mini-B
Expansion SD/SDHC Slot
Power Supply 24V DC ±25%, 1.2A
Protection IP65 Front / NEMA 4X
Operating Temp 0–55°C
Certifications UL, CE, Class I Div 2

Applications

  • Integrated control and monitoring for GE PACSystems RX3i, RX7i, and Series 90-70 PLCs

  • Real-time process visualization and alarm management

  • Compact panels for control rooms or machinery interfaces

FAQ

Q: Can the IC754VGI08CTD interface with non-GE PLCs?
A: Yes, it supports standard industrial protocols including Modbus RTU/TCP and Ethernet/IP.

Q: What touch technology does it use?
A: It features a durable projected capacitive multi-touch screen supporting gestures like pinch and zoom.
