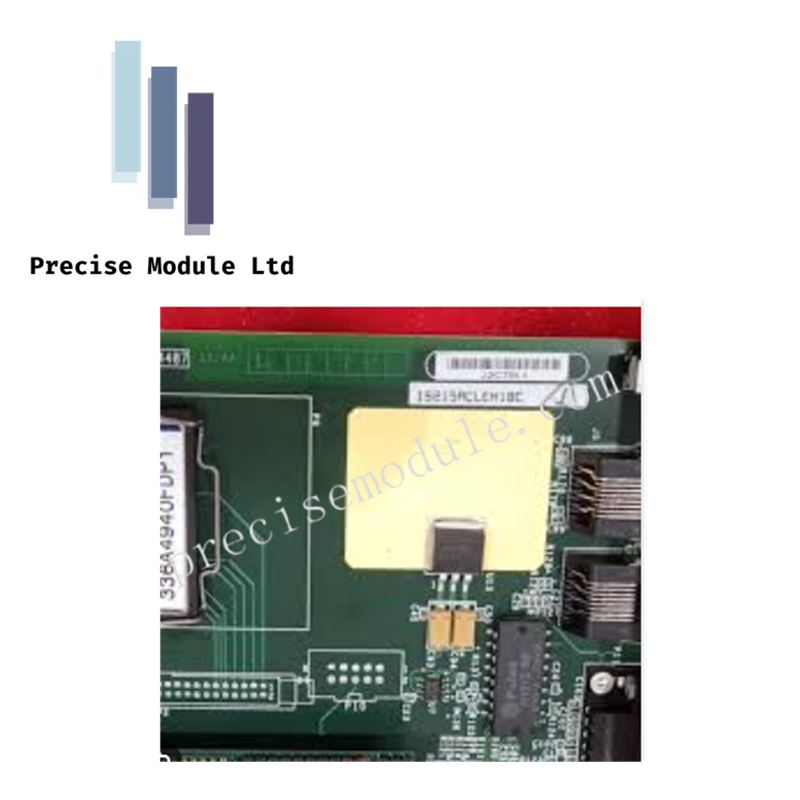

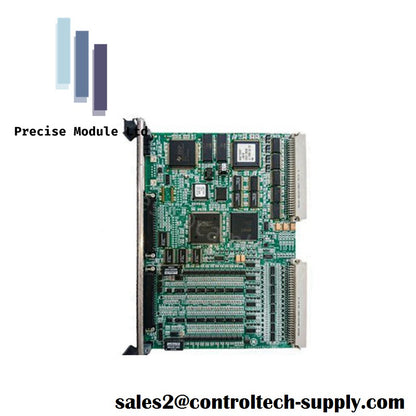

GE IS200ACLEH1BCB(IS215ACLEH1B) Application Control Layer Module

Technical Overview

The IS200ACLEH1BCB (often identified by the assembly part number IS215ACLEH1B) functions as the primary Application Control Layer (ACL) module within the General Electric Mark VI and EX2100 ecosystems. This high-speed, microprocessor-based controller is engineered to bridge the gap between human-machine interfaces (HMI) and the deterministic control layer of steam and gas turbines. By integrating advanced real-time processing capabilities with robust communication protocols, the IS200ACLEH1BCB manages complex sequencing, alarm handling, and synchronization tasks. It is specifically designed to slide into the EX2100 exciter board rack, where it facilitates high-speed data exchange via Ethernet and the proprietary ISBus, ensuring total system integration and operational safety.

Detailed Technical Specifications

The following specifications define the hardware architecture and memory mapping of the IS200ACLEH1BCB (Revision H1BCB):

• Manufacturer: General Electric (GE Power / Industrial Systems)

• Module Type: Application Control Layer (ACL) Controller

• System Series: Mark VI Control / EX2100 Excitation

• Processor Architecture: High-speed industrial microprocessor for deterministic logic

• Memory Configuration:

• Main Application Memory: 128 MB (Supports complex control algorithms)

• DRAM: 8 MB (Dedicated to high-speed data buffering)

• BIOS / Firmware Flash: 4 MB (For system boot and core low-level logic)

• Communication Interfaces:

• Ethernet: 10/100BaseT for HMI and peer-to-peer plant networking

• ISBus: Proprietary high-speed serial bus for intra-rack communication

• Redundancy: Native support for Dual and Triple Modular Redundancy (TMR) architectures

• Hardware Form Factor: Custom rack-mount module for EX2100/Mark VI frames

• Physical Dimensions: 14.75 cm (H) x 9.50 cm (W) x 3.50 cm (D)

• Unit Weight: 0.8 kg (1.76 lbs)

System Role and Redundancy Logic

The IS200ACLEH1BCB is critical for maintaining high availability in power generation environments. In redundant configurations, the ACL module synchronizes its internal state with a secondary or tertiary module, allowing for bumpless failover in the event of a processor or communication fault. While it resides in the EX2100 rack, it frequently acts as the primary gateway for excitation data to reach the Mark VI turbine controller, ensuring that the generator's electrical output is perfectly harmonized with the turbine's mechanical speed and torque.
