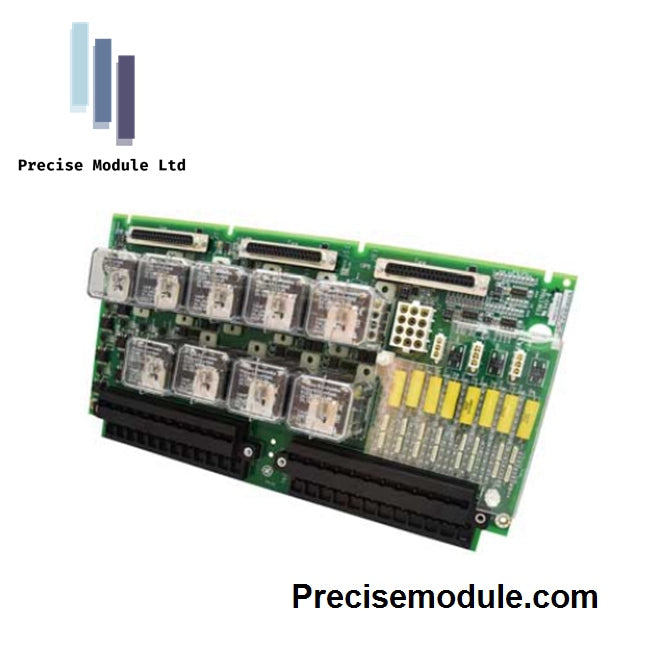

The GE IS200ECTBG1ADE is an Exciter Contact Terminal Board designed for integration into the Mark VI Speedtronic turbine control system. This module serves as a critical interface component, facilitating reliable signal termination and communication within the exciter control architecture. Engineered by GE Industrial Systems, it ensures robust connectivity for contact inputs and outputs essential for turbine regulation.
Technical Specifications
Model Number:IS200ECTBG1ADE
Functional Abbreviation: ECTB
Manufacturer: GE Industrial Systems
Product Line: Mark VI Speedtronic
Product Type: Exciter Contact Terminal Board
Operating Voltage: 24 VDC
Current Rating: 2 A
Communication Interface: RS485
Power Source: Control rack backplane
Operating Temperature: -30°C to +65°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% RH, non-condensing
Design and Construction
The GE IS200ECTBG1ADE is manufactured as a normal assembly with a standard non-conformal PCB coating. It is designed to operate efficiently with low power consumption, drawing power directly from the control rack backplane. The board features a specific revision history, with Functional Revision A, Functional Revision D, and Artwork Revision E, indicating a mature and tested hardware design.
