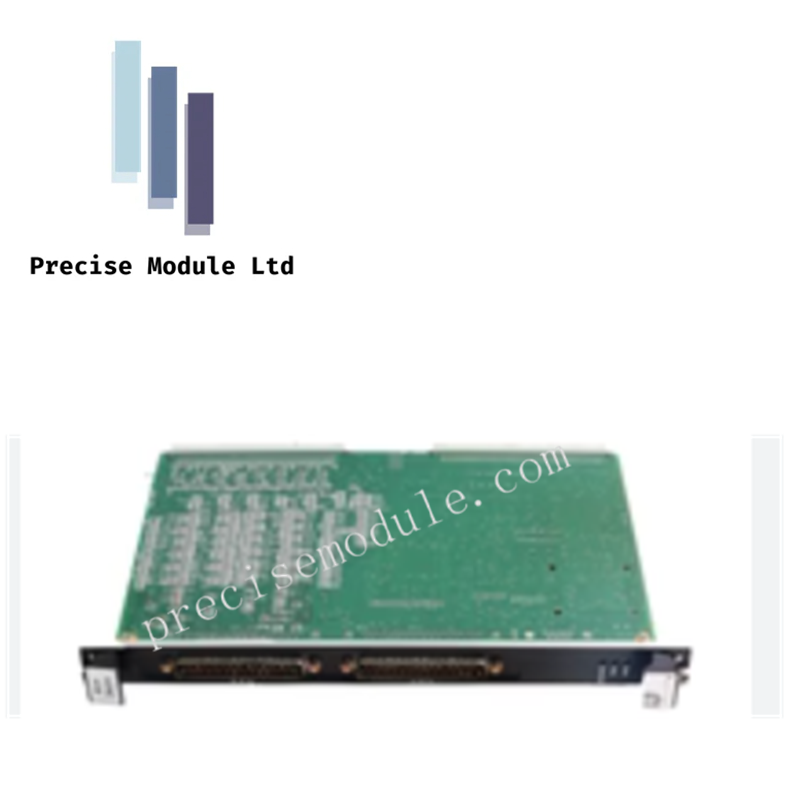

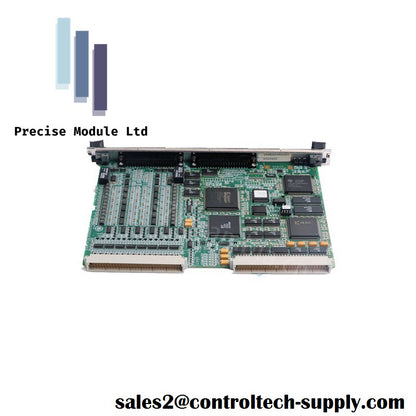

GE IS200EHPAG1BBA Exciter Gate Pulse Amplifier Board

Product Description

The IS200EHPAG1BBA is a high-performance Gate Pulse Amplifier board designed for the GE Mark VIe excitation control system. This module distinguishes itself with a fiber-optic interface, providing immunity to electromagnetic interference (EMI) and ensuring reliable signal transmission in electrically noisy industrial environments. It receives firing commands via fiber optics from the ESEL board and converts them into high-current gate drive pulses to trigger Silicon Controlled Rectifiers (SCRs).

Engineered for robust operation, the IS200EHPAG1BBA features a high isolation voltage rating (>2500V RMS) between the control and power sections. It supports a switching frequency of up to 20 kHz and includes comprehensive monitoring features such as SCR conduction feedback, fan rotation sensing, and thermal tracking. The board is designed to protect the power bridge by triggering alarms at 76°C and fault trips at 87°C, ensuring the longevity and stability of the excitation system.

Technical Specifications

• Model Number: IS200EHPAG1BBA

• Product Type: Gate Pulse Amplifier Board

• System Compatibility: GE Mark VIe Excitation Control

• Input Interface: Fiber-Optic (Tx/Rx) from ESEL Board

• Gate Drive Output: +15V / -8V (Typical)

• Peak Gate Current: >2A

• Switching Frequency: Up to 20 kHz

• Power Supply: 125 VDC Nominal (from EPDM module)

• Isolation Voltage: >2500V RMS (Control-to-Power)

• Dimensions: 16 cm × 16 cm × 12 cm

• Weight: 0.5 kg

• Operating Temperature: -20°C to +70°C

• Country of Origin: USA

Protection & Monitoring Features

• EMI Immunity: Fiber-optic connection eliminates signal degradation caused by electrical noise.

• Thermal Management:

• Alarm Threshold: Activates at 76°C.

• Trip Threshold: Triggers system shutdown at 87°C.

• System Diagnostics: Monitors SCR conduction feedback to verify proper firing and detects cooling fan rotation to ensure adequate airflow.

• High Isolation: Provides robust electrical isolation to protect sensitive control logic from high-voltage transients.
