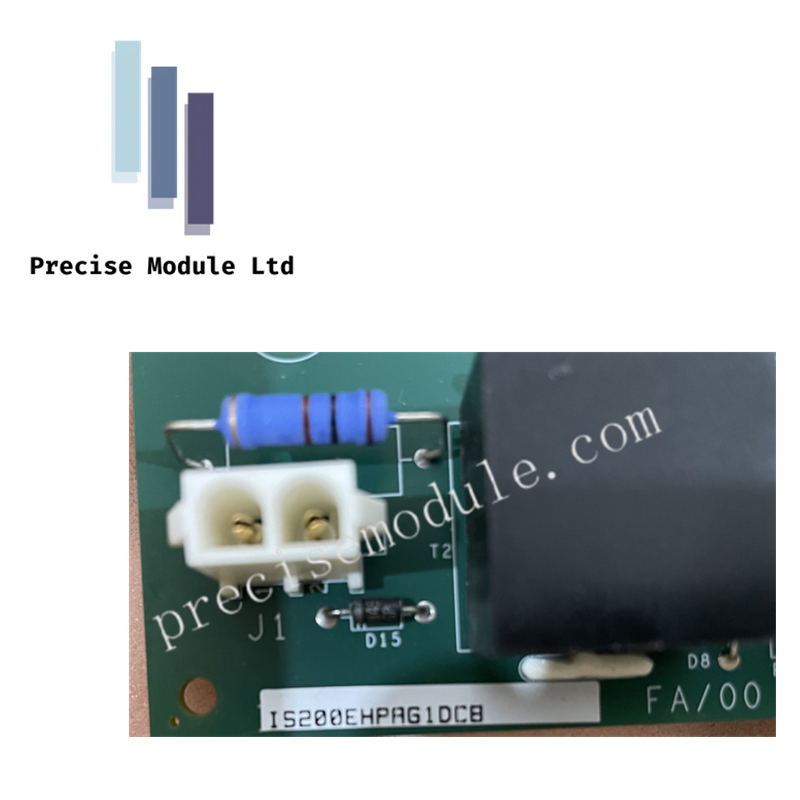

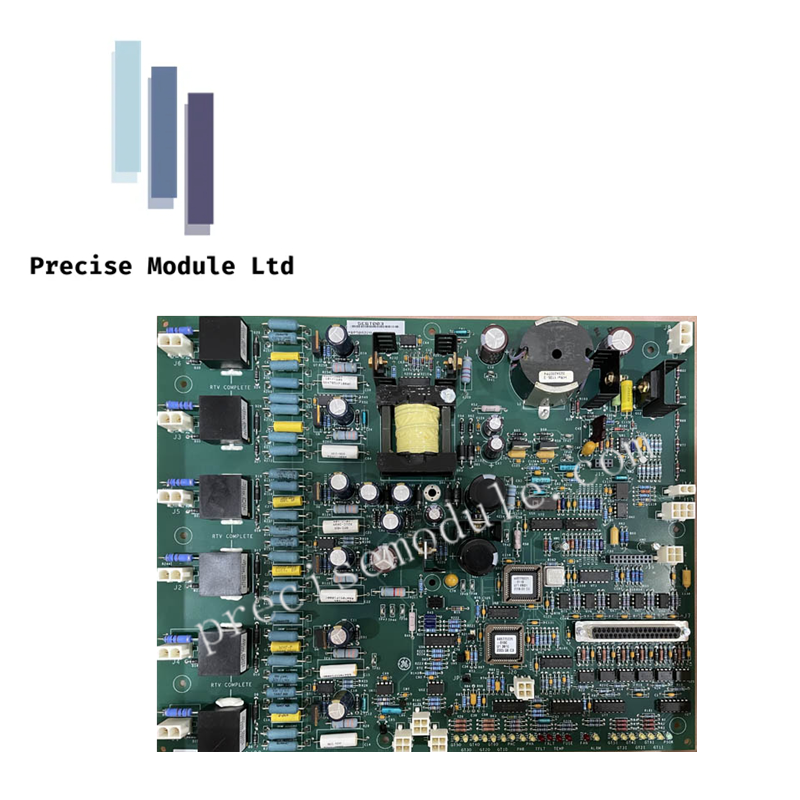

GE IS200EHPAGIDAB Gate Pulse Amplifier

Product Description

The IS200EHPAG1DAB is a critical component within the GE EX2100e excitation control system, designed specifically for 100mm form-factor applications. This Gate Pulse Amplifier board serves as the primary interface between the digital control logic and the high-power section of the excitation system. It receives low-voltage firing commands from the ESEL control board and amplifies them to drive the gates of six Silicon Controlled Rectifiers (SCRs) within the power bridge.

Beyond simple gate driving, the IS200EHPAG1DAB provides essential feedback loops for system stability. It monitors current conduction to verify SCR firing and manages thermal protection by tracking bridge temperature and cooling fan operation. In retrofit scenarios, it interfaces with thermal switches mounted on SCR heatsinks to prevent catastrophic failure due to overheating, ensuring the reliability of the generator excitation system.

Technical Specifications & Features

• Product Family: GE EX2100e Excitation Control System

• Board Function: Gate Pulse Amplifier (GPA)

• Form Factor: 100mm Board

• Drive Capability: Controls firing pulses for six (6) SCRs

• Input Interface: Receives gate commands directly from the ESEL board

• Feedback Monitoring:

• Current conduction verification

• Bridge airflow verification (via fan rotation sensors)

• Bridge temperature monitoring (via RTD)

• Thermal Protection Logic:

• Supports thermal switch feedback for retrofit applications

• Alarm Trigger: 170°F (76°C)

• Trip/Fault Trigger: 190°F (87°C)

Applications

• Generator Excitation Systems: Primary use in controlling the excitation field of synchronous generators.

• Power Bridge Control: Acts as the driver stage for SCR power bridges in static excitation systems.

• Retrofit Projects: Designed to interface with existing bridge assemblies, accepting feedback from legacy thermal switches for upgraded protection.
