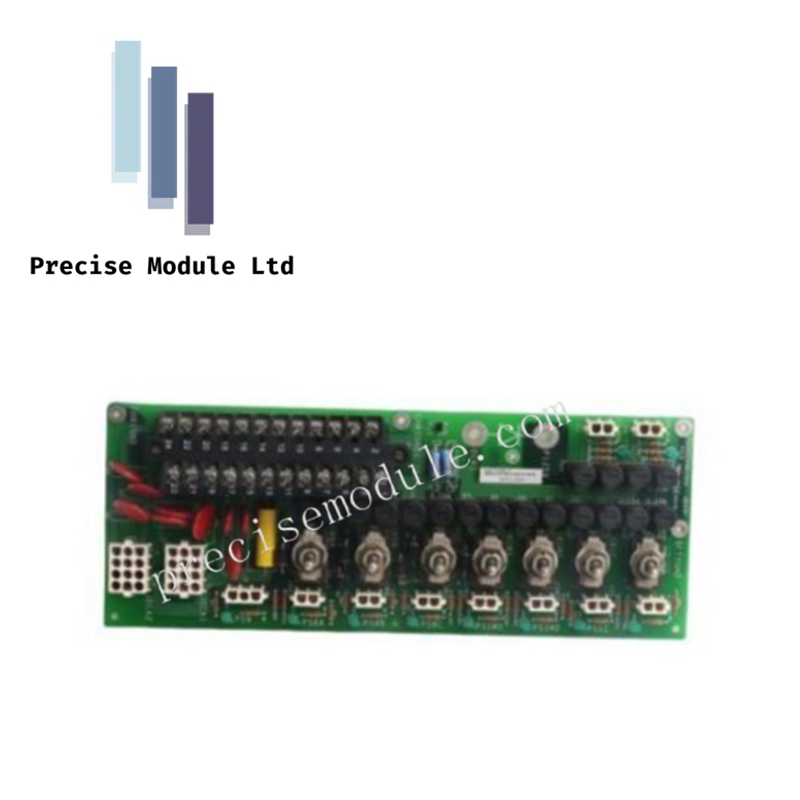

GE IS200EPDMG1BAA GENERAL ELECTRIC NEW Reliable Power Distribution Module

Product Description

The GE IS200EPDMG1BAA is a robust Exciter Power Distribution Module engineered for the EX2100 excitation control system. This unit acts as the central backbone for power management, receiving 125 VDC from station batteries and accommodating 120 VAC inputs for backup scenarios. Designed for ease of installation and maintenance, it ensures the reliable distribution of power to critical exciter components, including Gate Pulse Amplifier Boards (EGPA) and Exciter Terminal Boards (EXTB).

Technical Specifications

• Model Number: IS200EPDMG1BAA

• Manufacturer: General Electric (GE)

• Product Type: Exciter Power Distribution Module

• Series: EX2100

• Input Voltage: 125 VDC (Primary), 120 VAC (Backup)

• Color: Green

• Dimensions: 16 cm x 16 cm x 12 cm (6.4" x 6.4" x 4.8")

• Weight: 1 kg (2.2 lbs)

• Country of Origin: United States (USA)

• Warranty: 12 Months

Operational Features

The GE IS200EPDMG1BAA is equipped with advanced monitoring capabilities, providing real-time feedback on voltage levels, current consumption, and overall power system health. This functionality allows for proactive maintenance and efficient troubleshooting. The module features board-mounted terminal blocks and specific connectors (JDACA1/JDACA2) for seamless integration with external AC to DC converters (DACA).
