GE IS200TTURH1CFD | Mark VIe | Turbine Terminal Board | Speed

Overview

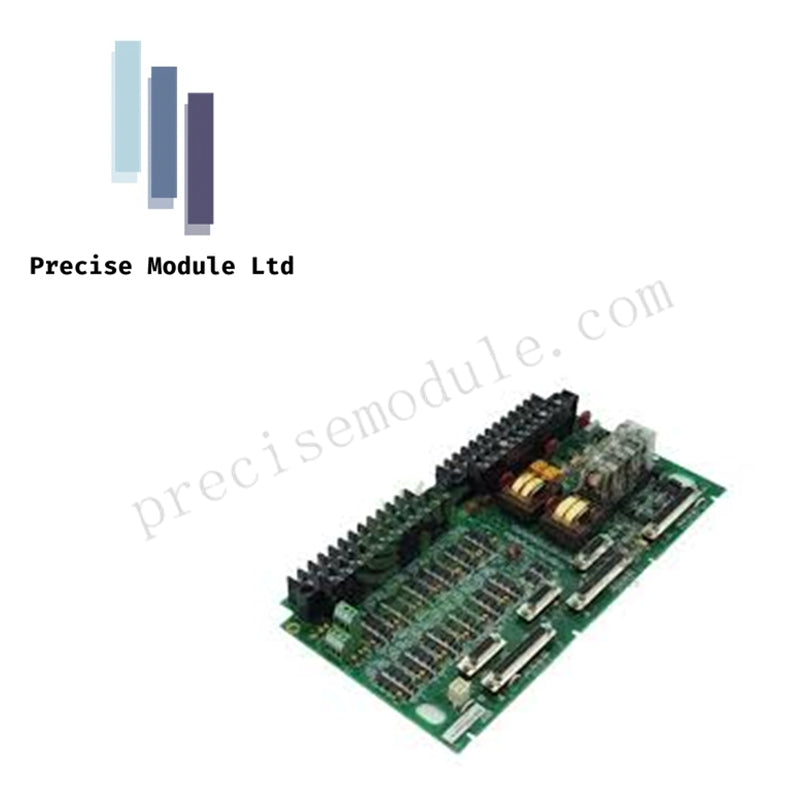

The GE IS200TTURH1CFD is a specialized Turbine Terminal Board used within the Mark VIe Control System. Designed to manage critical turbine feedback signals, this board acts as the physical interface for turbine speed sensing, synchronization, and shaft monitoring. When paired with the IS230TNTRH1C I/O pack, it digitizes the turbine’s operational data, ensuring accurate signal transmission to the control system. This module is essential for applications where precision in turbine operation is required, such as gas and steam turbines in power generation facilities.

Key Features

1. Precision Signal Inputs
   The IS200TTURH1CFD is equipped to handle high-precision turbine signals, including:

• Passive Speed Inputs: Interfaces with magnetic pickups to measure turbine RPM accurately.

• Active Speed Inputs: Supports active proximity probes for enhanced accuracy in speed monitoring.

• Generator Voltage/Frequency: Monitors the voltage and frequency of the generator, crucial for synchronization with the grid.

• Shaft Voltage/Current Monitoring: Specialized circuits detect shaft voltage to protect against electrical discharges that could damage turbine bearings.

2. Mounting and Integration
   The board is designed to be mounted in various cabinet configurations, ensuring flexibility in industrial setups:

• Form Factor: Available in double-width or standard vertical terminal block configurations.

• Termination: Features two sets of 24 screw terminals for easy field wiring connections.

• I/O Pack Compatibility: Supports integration with IS230TNTRH1C or IS200TNTR series I/O packs via D-type connectors for digital signal conversion.

3. Redundancy and Reliability
   The IS200TTURH1CFD is built to withstand industrial environments, with support for multiple redundancy configurations:

• Simplex, Dual, or TMR (Triple Modular Redundant) setups, ensuring continuous turbine operation even in the event of a component failure.

• Filtering: The board includes high-frequency noise filters and surge protection to maintain signal integrity in environments with high electrical noise.

4. Durability and Environmental Resistance
   Designed for harsh industrial conditions, the IS200TTURH1CFD is engineered to withstand extreme temperatures and environmental factors:

• Operating Temperature: Ranges from 0°C to +60°C (32°F to 140°F).

• Storage Temperature: Can be stored between -40°C and +85°C.

• Humidity: Supports a humidity range of 5% to 95% non-condensing.

• Vibration Resistance: Designed to meet seismic and operational vibration resistance standards according to GE Mark VIe specifications.

• Conformal Coating: The CFD suffix indicates a special conformal coating to protect the PCB from chemical exposure and corrosion, particularly in harsh industrial environments.

Module Comparison: IS200TTURH1CFD vs. IS230TNTRH1C

Environmental and Operating Limits

The IS200TTURH1CFD is designed to function reliably under demanding conditions typically found in power plants and other industrial environments. The following environmental specifications apply:

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Humidity Range: 5% to 95% non-condensing

• Vibration Resistance: Meets industrial standards for seismic and operational vibration resistance

• Conformal Coating: Designed for protection against environmental contaminants such as dust, moisture, and corrosive chemicals (CFD option).

Application Use Cases

The IS200TTURH1CFD is commonly used in high-performance turbine control systems. Typical applications include:

• Gas and Steam Turbine Power Generation: For accurate speed sensing, synchronization, and shaft voltage monitoring.

• Turbine Protection: Prevents mechanical failures by continuously monitoring critical turbine parameters such as speed, shaft voltage, and flame detection.

• Industrial Automation: Integrated into large-scale power plants and industrial facilities where turbine control and protection are essential.

Maintenance and Handling Tips

1. ESD Sensitivity: Handle with care as the board contains sensitive electronic components. Always use an anti-static wrist strap when handling.

2. Visual Inspection: Inspect for physical damage or signs of wear, particularly around wiring terminals and connectors.

3. Firmware Compatibility: Ensure that the IS200TTURH1CFD board is paired with compatible I/O packs (e.g., IS230TNTRH1C) to ensure correct signal translation and system operation.

4. Conformal Coating Maintenance: Check periodically for signs of wear or damage to the coating, which could affect the board's protection in harsh environments.

Troubleshooting & Common Questions

Q: What kind of turbine data does the IS200TTURH1CFD board handle?
A: The IS200TTURH1CFD processes high-precision signals for turbine speed, synchronization, and shaft voltage, crucial for safe and efficient turbine operation.

Q: Can the IS200TTURH1CFD be used in dual-redundant configurations?
A: Yes, the IS200TTURH1CFD supports Simplex, Dual, and TMR (Triple Modular Redundant) configurations, providing flexibility for high-availability systems.

Q: What is the difference between the IS200TTURH1CFD and the IS230TNTRH1C?
A: The IS200TTURH1CFD is a terminal board used for signal termination and conditioning, while the IS230TNTRH1C is an I/O pack that digitizes and communicates the signals to the Mark VIe control system.
