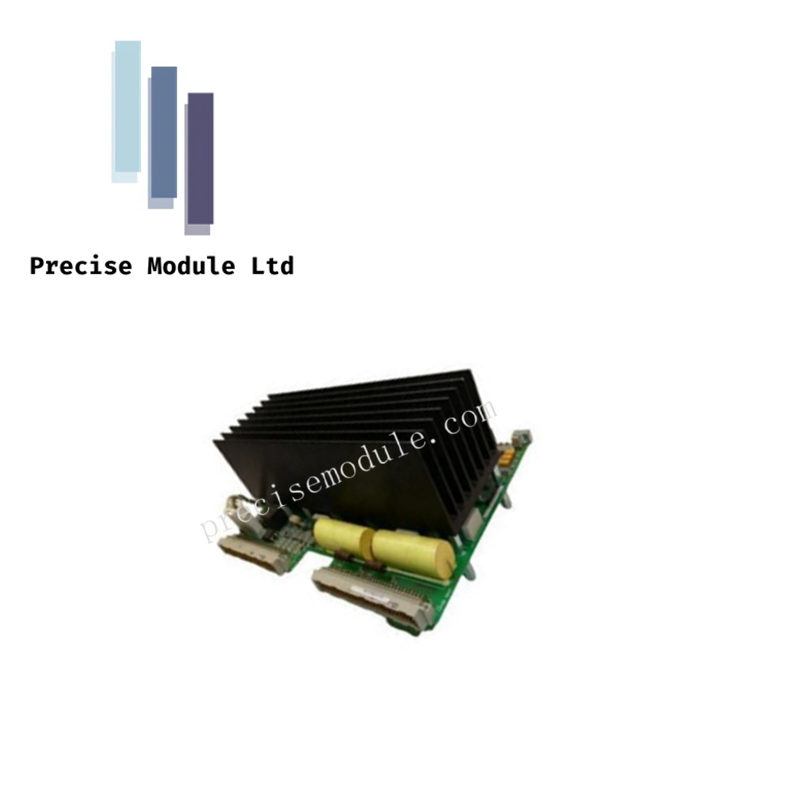

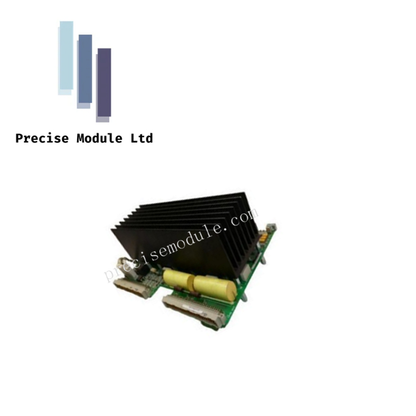

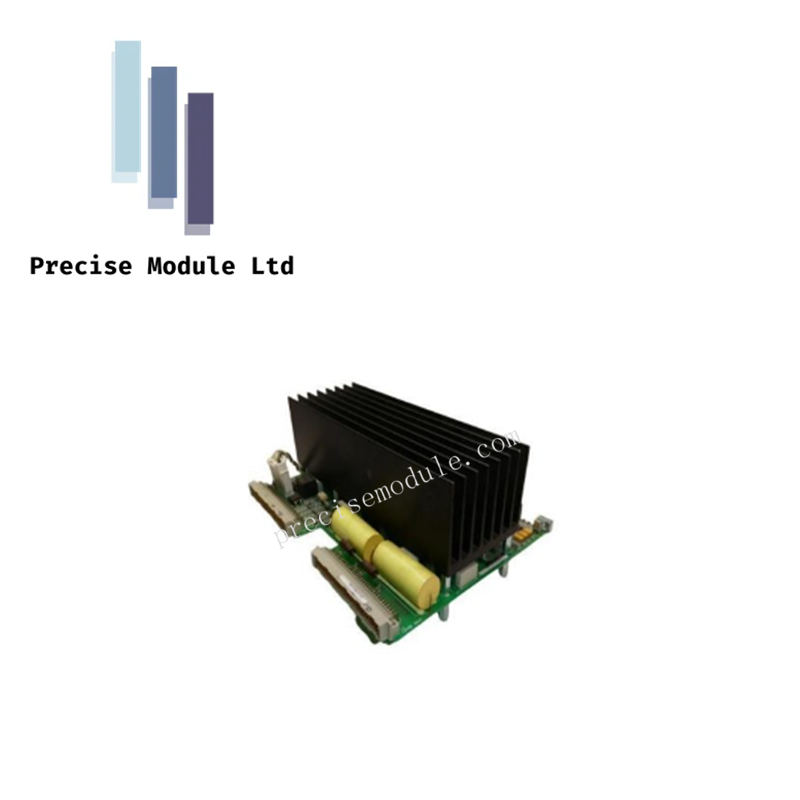

GE IS215VPROH1BD Speedtronic MarkVI RTD CARD

Description

The IS215VPROH1BD RTD input card from GE is designed for Speedtronic Mark VI turbine control systems. It enables accurate temperature monitoring using multiple RTD sensors, ensuring reliable performance in critical industrial environments.

Specifications

• Model: IS215VPROH1BD

• System Compatibility: GE Speedtronic Mark VI

• Input Type: RTD (Resistance Temperature Detector)

• Number of Inputs: 10 RTD channels

• Resolution: 24-bit analog-to-digital conversion

• Sensor Types Supported: 100-ohm platinum RTDs (e.g., PT100)

• Mounting: DIN rail or panel mount

• Power Supply: 28 VDC nominal

• Operating Temperature: –30°C to +65°C

• Humidity Range: 5% to 95%, non-condensing

• Dimensions: Approx. 330 mm × 100 mm × 40 mm

• Weight: Around 0.8 kg

• Connector Type: Terminal block interface

• Shielding: EMI/RFI protected for industrial environments

Features

• High-Resolution Monitoring: 24-bit conversion ensures precise temperature readings

• Multi-Channel Input: Supports up to 10 RTD sensors for broad coverage

• Speedtronic Integration: Seamlessly connects with Mark VI control architecture

• Wide Sensor Compatibility: Accepts standard PT100 and similar RTD types

• Robust Environmental Tolerance: Operates reliably in high humidity and temperature

• DIN Rail Mounting: Simplifies installation in control cabinets

• EMI Shielding: Protects signal integrity in noisy industrial settings

• Stable Power Handling: Operates efficiently at 28 VDC

• Compact Design: Saves space while offering high input density

• Trusted Performance: Proven reliability in turbine and process control systems
