GE IS220PTURH1B Turbine I/O Pack | IS230TNTRH1C Mark VIe Module

Product Description

Overview

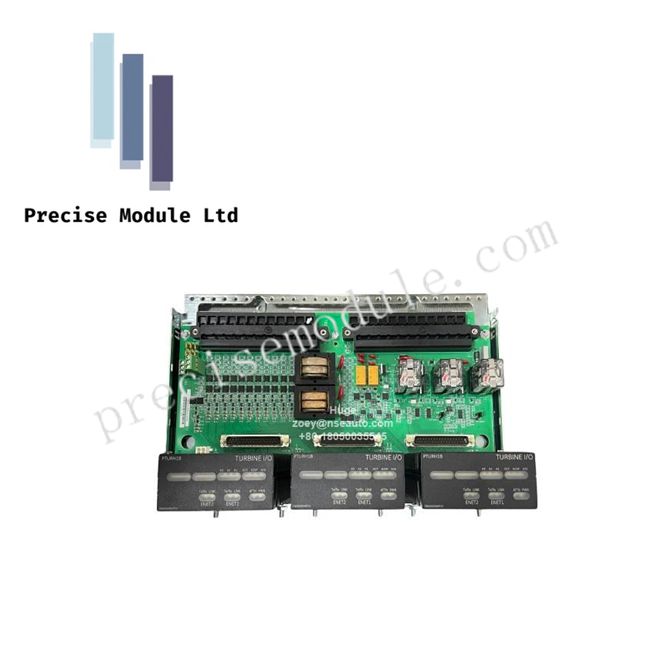

The GE IS220PTURH1B (IS230TNTRH1C) is a dedicated Primary I/O Trip Pack for Mark VI and Mark VIe Speedtronic turbine control systems. Designed for gas and steam turbine protection, this module interfaces with field sensors through IS200TRPAS1A terminal boards, providing precise signal acquisition and control. It is compatible with both simplex and Triple Modular Redundant (TMR) configurations to maintain uninterrupted turbine safety operations.

Functional Highlights

• Primary Turbine Protection: Executes overspeed detection and emergency trip commands.

• High-Speed Signal Acquisition: Captures pulse inputs from magnetic pickups and proximity sensors for real-time turbine control.

• Redundant Architecture: Supports simplex, dual, or TMR setups to ensure continuous operation during maintenance or component failure.

• Integrated Communication: Dual 100 Mbps IONet Ethernet ports allow deterministic communication with Mark VIe controllers.

• Field Diagnostics: Onboard LEDs and IR diagnostic port facilitate local testing and troubleshooting.

• Environmental Resilience: Conformal-coated PCB and rugged chassis allow operation in -40°C to +70°C conditions.

Performance Characteristics

1. Precision Speed and Overspeed Monitoring

• Handles high-frequency pulses from MPUs and proximity sensors.

• Delivers speed readings across a wide dynamic range, from slow turning gear to high-speed turbine overspeed conditions.

• Accuracy within ±0.5% for precise governing and synchronization.

2. Comprehensive Turbine Signal Processing

• Supports shaft voltage/current monitoring to prevent bearing damage.

• Processes flame detection, potential transformer (PT), and breaker status inputs.

• Converts analog signals to digital data for the main controller in real-time.

3. Protection and Trip Logic

• Embedded independent hardware/software logic ensures rapid response to overspeed events.

• Interfaces with up to two turbine breakers for fast shutdown.

• Supports ±3 Hz slip range for stable speed control.

4. Communication and Maintenance

• Dual 100 Mbps full-duplex Ethernet ensures time-synchronized control communication.

• Hot-swappable in redundant setups, allowing replacement without system downtime.

• LED indicators for Power, Ethernet link, I/O health, and breaker status.

Technical Specifications

Applications

• Gas and steam turbine speed monitoring and overspeed protection

• Turbine primary I/O interface with Mark VI/VIe controllers

• Turbine breaker control and shaft voltage/current monitoring

• Redundant TMR systems for high-reliability turbine operations

FAQ

Q: Can this PTUR pack be used in TMR configurations?
A: Yes, it supports simplex, dual, and Triple Modular Redundant (TMR) setups for maximum operational safety.

Q: What sensors are compatible?
A: Magnetic pickups, proximity sensors, and flame detectors are supported.

Q: Is it suitable for extreme environments?
A: Yes, it operates from -40°C to +70°C and features a conformal-coated PCB for protection.

Q: How is it connected to turbine terminal boards?
A: It interfaces directly with IS200TRPAS1A terminal boards for field wiring and signal conditioning.
