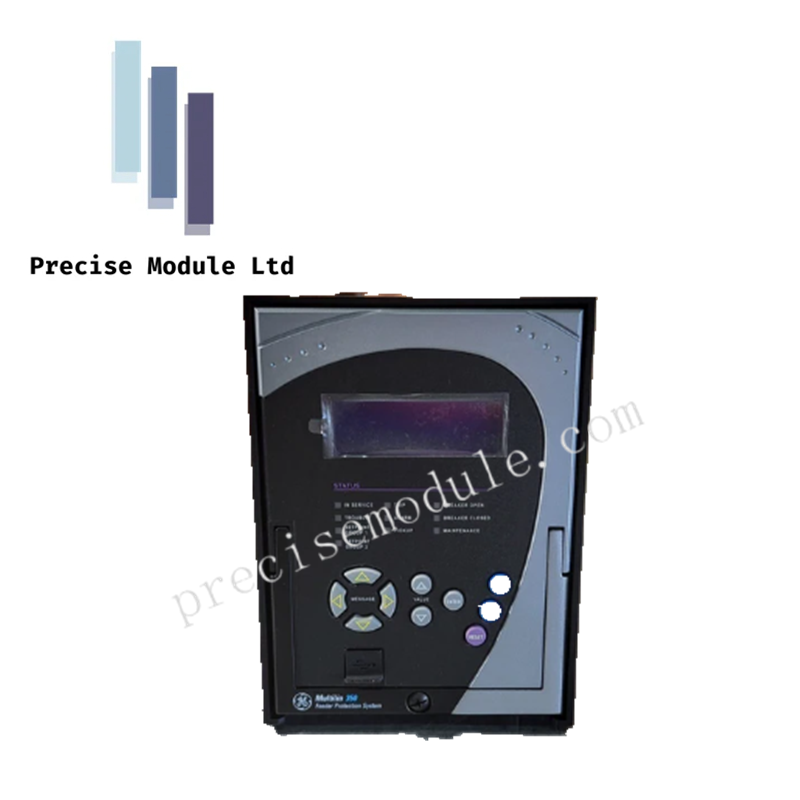

GE Multilin 350-E-P5-G5-H-E-M-N-P-SN-P- N Advanced Feeder Protection System

Product Description

The GE Multilin 350-E-P5-G5-H-E-M-N-P-SN-P-N is a member of the renowned Multilin 3 Series, specifically engineered to provide comprehensive protection, control, and monitoring for feeder applications in medium to high-voltage industrial and utility environments. This advanced protection system combines cost-effective hardware with field-proven algorithms to prevent false trips while ensuring rapid response to actual fault conditions.

This high-specification model features a multi-shot recloser, cold load pickup, and multiple setting groups, making it highly adaptable to varying load conditions. It excels in data management with extensive oscillography buffers and high-speed USB data transfer for post-fault analysis. Designed for global deployment, it operates reliably in extreme temperatures ranging from -40°C to +70°C and supports industry-standard protocols including Modbus RTU and DNP 3.0.

Technical Specifications

• Manufacturer: GE Fanuc / GE Multilin

• Model Number: 350-E-P5-G5-H-E-M-N-P-SN-P-N

• Product Type: Advanced Feeder Protection System

• Current Inputs: * Phase: Three-phase 5A CT secondaries (P5)

• Ground: 5A Ground input (G5)

• Power Supply: High-range (H): 100–240V AC / 125–250V DC

• Control Logic: Multi-shot recloser, Cold Load Pickup (CLP), and Hierarchical password security

• Communication:

• Front: USB 2.0 (115 kbps transfer rate)

• Rear: RS485 supporting Modbus RTU & DNP 3.0

• Protection Performance:

• Frequency Resolution: 0.01 Hz

• Phase Overcurrent Multiplier: 0.5 to 20.0 (Adjustable in 0.1 steps)

• Event Recording: Oscillography buffers (1x192, 3x64, or 6x32 configurations)

• Hardware: * Contact Material: Silver-Alloy Form-C Relays

• Mounting: Panel mount

• Environmental: -40°C to +70°C; Up to 95% non-condensing humidity

• Net Weight: 5.5 kg (5500g)

• Origin: USA

Application Scenarios

The Multilin 350 series is the preferred choice for:

• Utility Distribution: Protecting overhead and underground feeders with precise reclosing logic.

• Industrial Facilities: Safeguarding power distribution to large-scale motor control centers and plant substations.

• Renewable Energy: Monitoring and protecting grid-tie points for wind and solar farms.

• Fault Analysis: Utilizing high-resolution oscillography to determine root causes of system disturbances.
