H4135A| HIMA | Safety-Related Relay

Manufacturer: HIMA
Product No.: H4135A
Condition：in Stock
Product Type: Safety-Related Relay
Product Origin: Germany
Payment:T/T, Western Union
Weight: 80g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

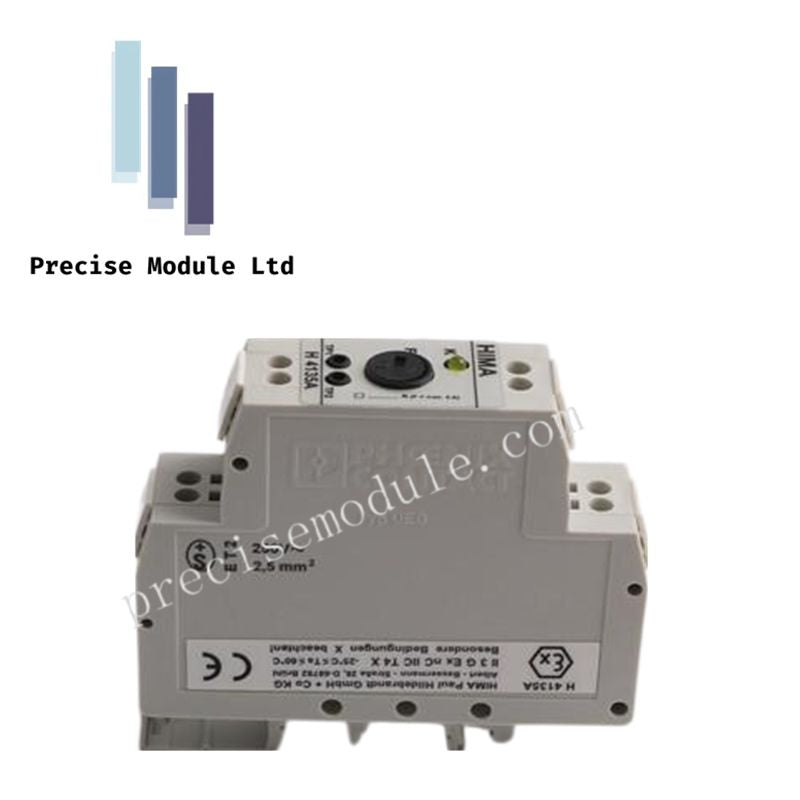

HIMA H4135A Safety Relay Module

Overview

The HIMA H4135A is a compact and high-integrity safety relay module designed for integration into HIMatrix and HIQuad safety systems. Certified to SIL 3 under IEC 61508, it ensures reliable execution of safety functions such as emergency shutdowns, interlocks, and process automation control loops.

With its robust housing, gold-plated relay contacts, and rapid response time, the H4135A delivers consistent performance in demanding industrial environments including oil & gas, chemical processing, and power generation. Its lightweight structure and DIN rail mounting enable easy installation and space efficiency within safety cabinets.

Technical Specifications

Feature	Specification
Model Number	H4135A
Product Type	Safety-Related Relay
Input Voltage	24 VDC (−15% to +20%), ≤ 40 mA
Output Type	Floating normally open (NO) contact
Switching Time	8 ms
Reset Time	6 ms
Bounce Time	1 ms
Contact Material	AgNi, hard gold-plated
Switching Voltage	≥ 5 V to ≤ 250 VAC / ≤ 127 VDC
Switching Current	≥ 10 mA to ≤ 4 A
Switching Capacity	AC: ≤ 500 VA (cos φ > 0.5), ≤ 830 VA (cos φ > 0.9) DC: ≤ 120 W @ 30 V, ≤ 50 W @ 70 V, ≤ 25 W @ 127 V
Mechanical Life	≥ 30 million operations
Electrical Life	≥ 250,000 operations (resistive load, ≤ 0.1 cycles/sec)
Protection Class	IP20 (IEC/EN 60529)
Ambient Temperature	−25°C to +60°C
Mounting Type	DIN rail
Dimensions (W × H × D)	Approx. 2 cm × 7 cm × 8 cm
Weight	0.08 kg
Safety Certification	SIL 3 (IEC 61508)
Country of Origin	Germany
