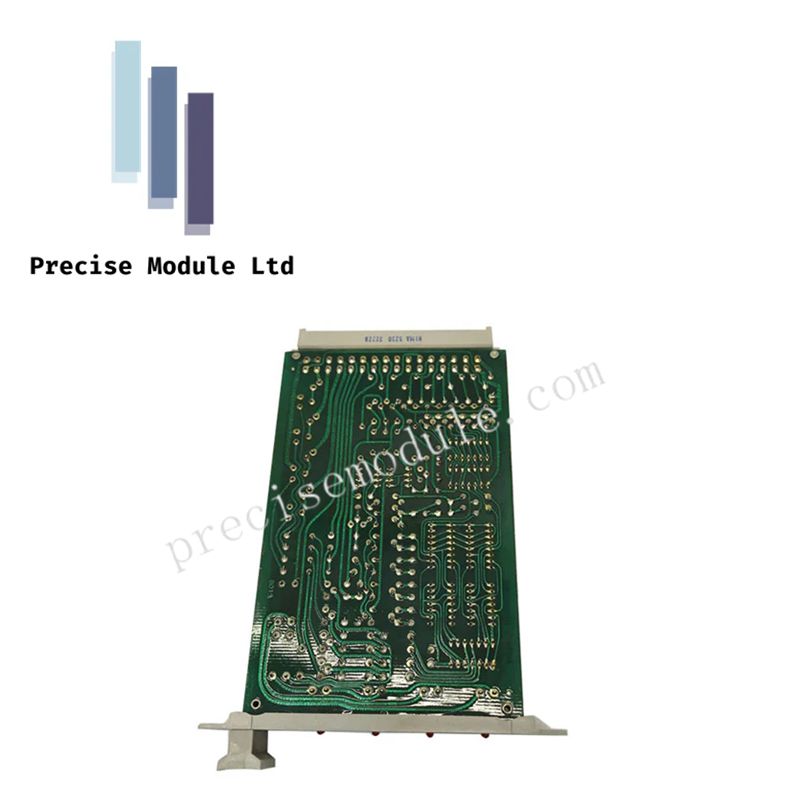

HIMA M3410 Safety Relay Module

Manufacturer: HIMA
Product No.: M3410
Condition：in Stock
Product Type: Safety Relay Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 160g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

HIMA M3410 Safety Relay Module

Overview

The HIMA M3410 is a microprocessor-based safety relay module developed for integration into HIMax and HIMatrix systems. It enhances safety performance by providing signal monitoring, fault detection, and rapid emergency response, making it essential for SIL 3 and PL e applications.

This module supports 8 digital inputs and 4 relay outputs, offering fast response times of less than 10 ms and reliable 1500 V RMS isolation. With its compact design, rugged build, and compliance with IEC 61508 and EN ISO 13849-1, the M3410 module is widely deployed in emergency shutdowns, fire and gas safety, and machine protection within industries such as oil & gas, chemicals, and power generation.

Technical Specifications

Feature	Specification
Model Number	M3410
Manufacturer	HIMA
Product Type	Safety Relay Module
Digital Inputs	8 channels
Relay Outputs	4 channels
Input Voltage	24 V DC
Output Voltage	24 V DC
Contact Rating	2 A @ 24 V DC
Response Time	≤ 10 ms
Isolation	1500 V RMS (channel-to-ground)
Safety Certification	SIL 3 (IEC 61508), PL e (EN ISO 13849-1)
Dimensions (H × W × D)	72 mm × 144 mm × 100 mm
Weight	0.16 kg
Mounting Type	Horizontal or vertical panel mount
Protection Class	IP20
Operating Temperature	−20°C to +60°C
Storage Temperature	−40°C to +85°C
Humidity	5–95% RH (non-condensing)
Shock Resistance	10 g (11 ms half-sine)
Vibration Resistance	1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz)
