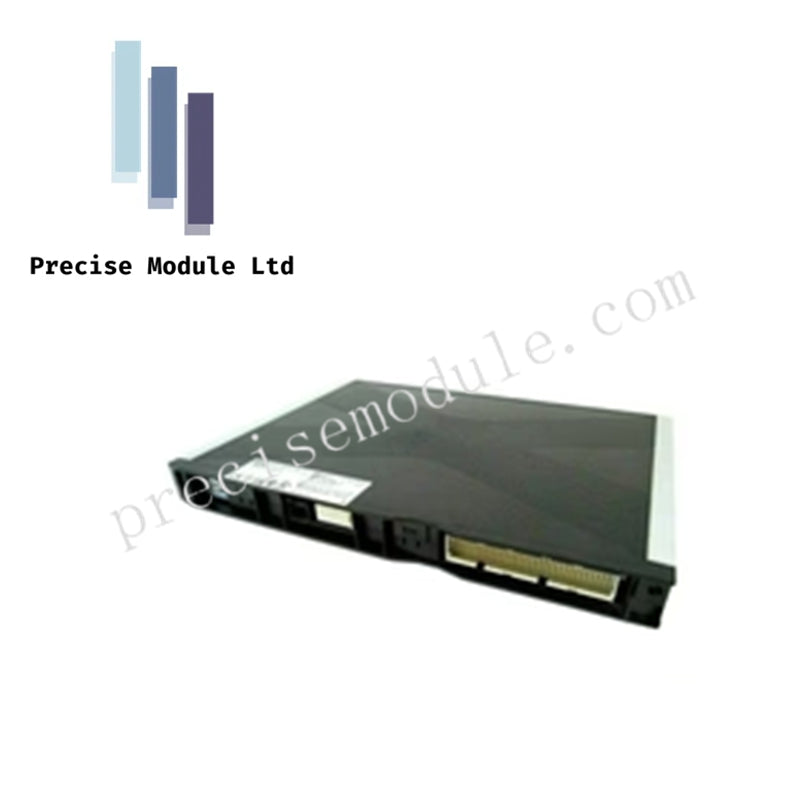

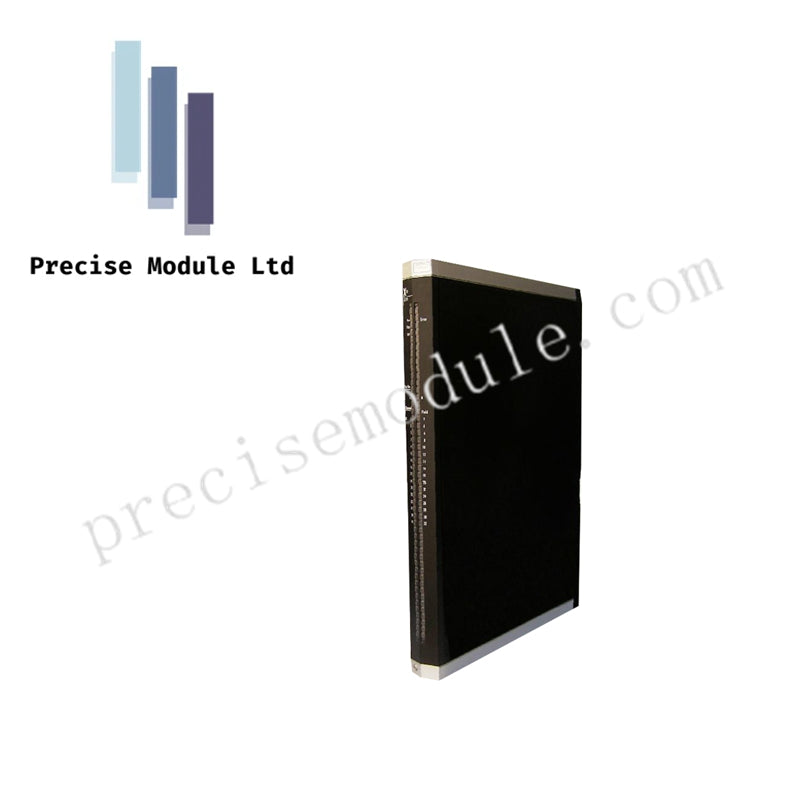

HIMA X-AI 32 01 32-Channel Analog Input Module for SIL 3 Safety Systems

Product Description:

The HIMA X-AI 32 01 is a high-density 32-channel Analog Input Module for the HIMax scalable safety platform, designed for critical industrial applications that require SIL 3 safety integrity, including Emergency Shutdown (ESD), Fire and Gas (F&G), and Burner Management Systems (BMS). This module is ideal for environments that demand constant availability and can be replaced or reconfigured without stopping the controller, ensuring "Availability for Life."

It supports 4-20 mA signals and offers integrated transmitter supply for each channel, allowing it to directly power 2-wire or 3-wire field transmitters. The X-AI 32 01 is built for high reliability with features like advanced diagnostics, redundancy options, and hot-swapping capability, making it a flexible solution for safety-critical systems.

Key Features:

• SIL 3 Certified:
  Meets IEC 61508 and EN ISO 13849-1 standards for safety-critical applications, ensuring the highest levels of integrity and reliability.

• High Density:
  Offers 32 analog inputs in a single slot, optimizing cabinet space and reducing the need for multiple modules, making it ideal for systems with high I/O density.

• Redundancy Ready:
  Supports redundant configurations (1oo2 or 2oo3) for maximum availability. It can be paired with a redundant connector board for added safety and reliability.

• Hot-Swappable:
  The X-AI 32 01 can be inserted or removed while the system is live (under power), which facilitates maintenance without disrupting the operation of the system.

• Advanced Diagnostics:
  Continuous self-testing of A/D converters and internal power rails ensures that the system remains operational. It also features line monitoring for detecting open circuits and short circuits.

Technical Specifications:

Field Wiring and Connector Boards:

• Field Wiring Options:

  • 2-Wire: The module provides the loop power (L+) and measures the return current on the same circuit.

  • 3-Wire: The module provides a dedicated power supply (L+) and common (L-), measuring the signal on a third wire.

• Connector Board Options:

  • X-CB 008 01: Standard version for non-redundant wiring.

  • X-CB 008 02: For redundant wiring, connecting two modules to the same sensors.

  • X-CB 008 03: Pre-assembled cable plugs for quicker cabinet integration.

The X-AI 32 01 does not have terminals on the module itself. It requires a Base Plate and a specific Connector Board to handle the field wiring.

Maintenance & Diagnostics:

The X-AI 32 01 includes LED indicators to assist with diagnostics and troubleshooting:

• Run (Green): The module is operating normally.

• Err (Red): Indicates an internal fault or configuration error.

• Channel LEDs (Yellow): Flashing lights indicate field-side errors, such as current out of range or line breaks.

For HART communication (with smart field instruments), the X-HART 32 01 sidecar module is required, or HART tunneling must be configured within the SILworX software.
