HIMA Z7308 Z 7308 Shunt Adapter Module – Analog Input Interface

Manufacturer: HIMA
Product No.: Z7308
Condition：in Stock
Product Type: Shunt Adapter Module – Analog Input Interface
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

HIMA Z7308 Shunt Adapter Module

Overview

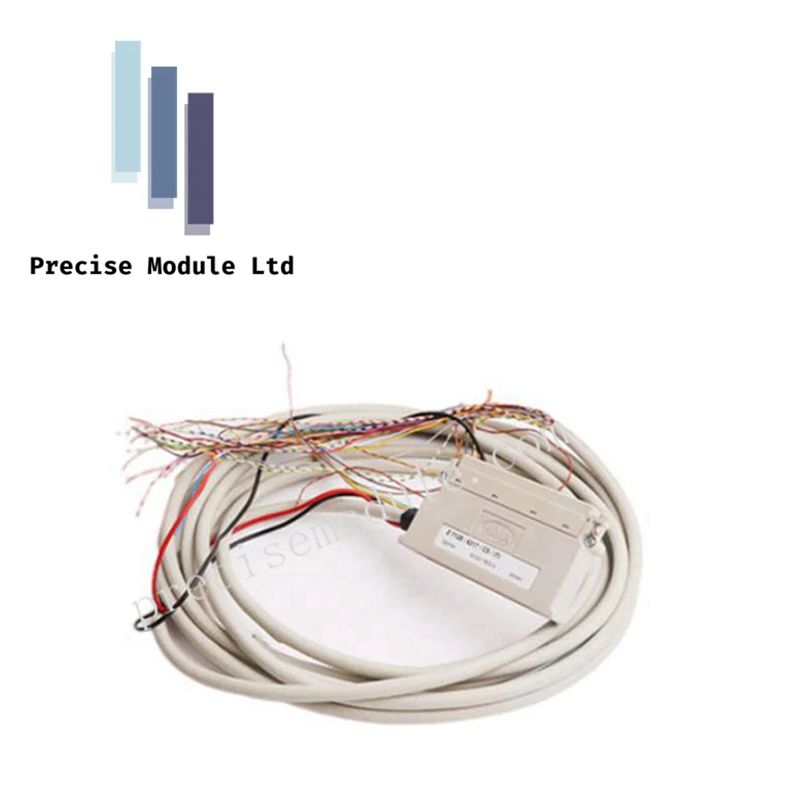

The HIMA Z7308 is a plug-in shunt adapter module designed for use with HIMatrix F35 controllers and F3 AIO 8/4 01 remote I/O modules. It supports analog input signal conditioning by providing voltage division, shielding, and overvoltage protection. With its rugged design, the Z7308 adapter ensures reliable performance in safety-critical applications such as process automation, machine protection, and environmental monitoring.

Its compact size, durable coating for dust and humidity resistance, and precise input handling make it an excellent choice for facilities requiring accurate and safe analog signal processing.

Technical Specifications

Feature	Specification
Model Number	Z7308
Manufacturer	HIMA
Function	Shunt adapter for analog inputs
System Compatibility	HIMatrix F35, F3 AIO 8/4 01
Supported Signal Types	Contacts with resistors, analog transmitters
Transmitter Supply Terminals	Sa, Sb
Analog Input Terminals	Ia+, Ia− / Ib+, Ib−
Reference Pole	Shared ground for analog channels
Maximum Power Loss per Branch	0.6 W @ Imax = 20 mA
Overvoltage Protection	UI max ≤ 30 V
Cable Resistance	RL < 30 Ω
Operating Temperature	0°C to +60°C
Storage Temperature	−40°C to +85°C
Humidity	5–95% RH (non-condensing)
Dimensions (H × W × D)	35 mm × 23 mm × 25 mm
Weight	1.5 kg
Mounting Type	Plug-in for HIMatrix chassis
Protection	Coated for dust and humidity resistance
Certifications	CE, FCC
Country of Origin	Germany
