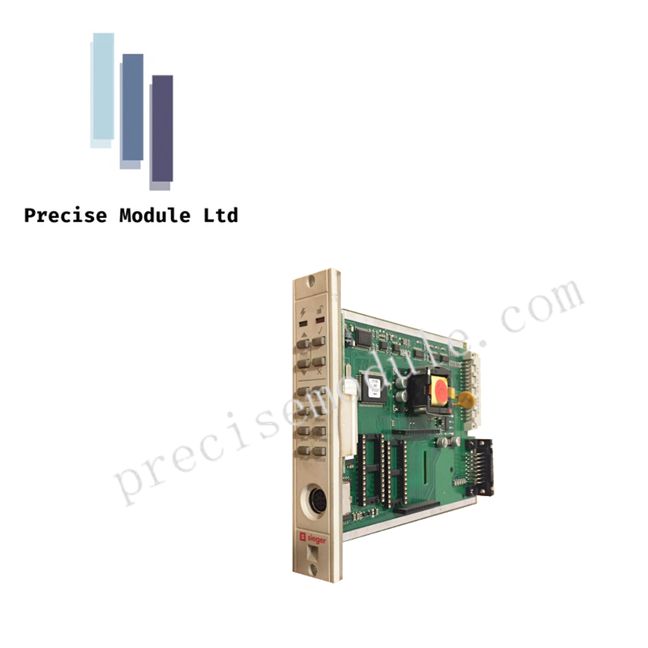

Honeywell 05701-A-0361 Series 57 Engineering Card Gas Detection Module

Honeywell 05701-A-0361 Series 57 Engineering Card Gas Detection Module

  • Manufacturer: Honeywell

  • Product No.: 05701-A-0361

  • Condition：in Stock

  • Product Type: Engineering Card, Gas Detection Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 152g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Product Description

Overview

The Honeywell 05701-A-0361 Engineering Card is a dedicated communication and control module designed for integration within the Honeywell Series 5700 gas detection system. It serves as a central interface for configuring, commissioning, and maintaining connected gas detector modules. The front panel features tactile pushbuttons for real-time status checks, calibration verification, and operational testing, while an onboard clock tracks calibration history and maintenance reminders.

Key Features and Functions

  • Front Panel Display: Multi-segment LEDs provide instantaneous gas readings.

  • Status Indicators: Separate LEDs indicate “Power On,” “Unlocked,” and channel alarm status.

  • Push-Button Controls: Up/Down navigation, Accept/Reject for commands, and combined buttons for printing or exporting data.

  • Alarm and Signal Management: Supports multiple alarm levels with relay logic for both normally energized and de-energized configurations.

  • Self-Diagnostics: Continuous internal testing ensures module reliability and detects sensor or hardware faults.

  • Inhibit Mode: Enables calibration and maintenance without triggering system-wide alarms.

  • Environmental Protection: RFI/EMI immunity suitable for harsh industrial environments.

Technical Specifications

Feature Specification
Part Number / Model 05701-A-0361
Brand Honeywell
Product Type Engineering Card / Gas Detection Module
System Compatibility Series 5700 / 5701 Rack
Input Type 4–20 mA (standard) or bridge input
Display Units %LEL, ppm, v/v (user selectable)
Power Supply 18–32V DC
Power Consumption 1.5 W typical
Operating Temperature -5°C to +55°C
Dimensions Height 132 mm × Width 25 mm × Depth 170 mm
Weight 152 g
LED Indicators Power On (Green), Unlocked (Red)
Push-Button Functions Up/Down, Accept/Reject, Print (Up + Down)
Safety Integrity Suitable for SIL-rated systems
Communication Single-channel input with high-resolution digital processing

Applications

This module is ideal for chemical plants, refineries, and other hazardous industrial sites requiring continuous gas monitoring. It ensures fail-safe operation and reliable data acquisition for toxic, flammable, or oxygen gas sensors.

FAQ

Q: Can the 05701-A-0361 be hot-swapped?
A: Only if firmware and hardware revisions match the existing rack configuration to avoid system errors.

Q: What alarm levels does it support?
A: It supports three programmable alarm setpoints (A1, A2, A3) with configurable relay logic.

Q: Does it require external calibration devices?
A: Calibration can be performed via onboard controls; external devices are optional for advanced calibration verification.

Similar Models: The 05701-A-0362 offers dual-channel monitoring, while 05701-A-0360 supports older Series 5700 legacy sensor types.
