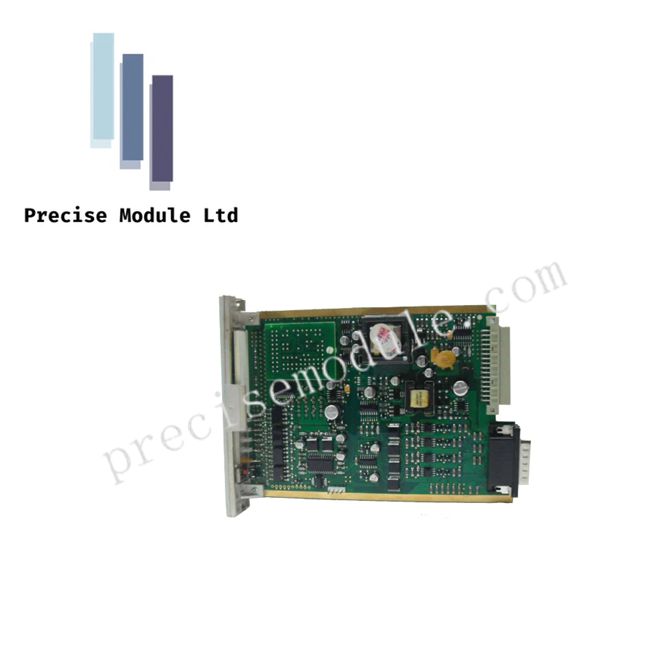

Honeywell 05704-A-0145 4-Channel Control Card | System 57

Product Description

Overview
The Honeywell 05704-A-0145 is a precision 4-channel control card designed for the System 57 gas detection platform. This module enables simultaneous monitoring and management of up to four gas sensors, providing control, display, and alarm functions for toxic, flammable, and oxygen gas detection systems. Engineered for reliability and compact integration, it is suitable for industrial safety systems where accurate, real-time gas measurement is critical.

Key Features

Quad-Channel Monitoring
The card supports four independent input channels, allowing multiple gas sensors to be integrated within a single System 57 rack. This high-density design reduces space requirements and optimizes installation costs for large-scale safety systems.

Advanced Alarm Handling
Each channel provides three configurable alarm levels (A1, A2, A3). Alarms can be set as rising or falling, latching or non-latching, with optional time delays to avoid false triggers.

Intuitive Display and Indicators
The front panel includes a backlit LCD for real-time gas readings and LED indicators for quick visual confirmation of alarms or hardware faults.

Accurate Signal Processing
High-resolution analog-to-digital conversion ensures minimal measurement error. The module continuously monitors its internal circuitry and sensor loops, generating fault alarms if anomalies are detected.

Ease of Maintenance
The 05704-A-0145 is hot-swappable, allowing replacement or installation without disrupting the operation of other modules. Configuration can be performed using the front panel or engineering software tools.

Technical Specifications

Applications

The Honeywell 05704-A-0145 is widely used in industrial environments requiring reliable gas detection and alarm management:

• Oil & Gas Platforms: Hydrogen sulfide or combustible gas monitoring

• Chemical Facilities: Toxic gas detection and process safety

• Water Treatment Plants: Chlorine or ozone monitoring

• Manufacturing and Confined Spaces: Oxygen depletion monitoring

FAQ

Q: How many gas sensors can this module support?
A: Up to four independent gas sensors per module.

Q: Can the card be replaced while the system is powered?
A: Yes, it is hot-swappable without affecting other modules.

Q: What types of alarms does it support?
A: Three per channel, configurable as low, high, or fault, with rising/falling and latching/non-latching options.

Q: Is it compatible with other System 57 modules?
A: Yes, it is designed for System 57 racks and works with standard Honeywell gas detection modules.
