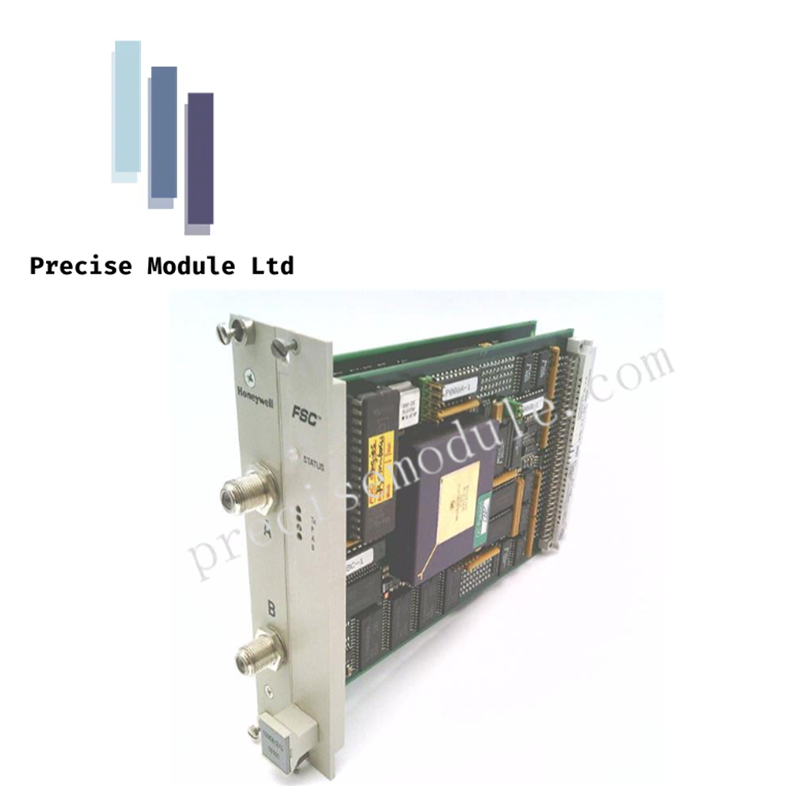

Honeywell 10008/2/U Communication Module

Configured for communication processing within Honeywell FSC safety control systems, the Honeywell 10008/2/U (10008/2/U Communication Module) provides direct data exchange between safety controllers, serial communication networks, and Ethernet-connected devices. The module manages protocol handling, message transfer, and communication buffering functions for FSC architectures requiring deterministic data communication and safety system integration.

Hardware Specifications

Channel-to-Channel Isolation and Communication Management

The 10008/2/U module functions as a communication interface between FSC safety controllers and external industrial networks. The module supports simultaneous communication through dual RS-485 ports and a dedicated Ethernet interface, allowing integration with supervisory systems, operator stations, and distributed field devices.

Communication services include Modbus RTU over RS-485 and Modbus TCP/IP over Ethernet. The module manages message processing, data transfer, and communication diagnostics while maintaining separation between communication functions and safety logic execution.

The communication architecture allows information exchange between FSC systems and connected automation infrastructure without affecting controller execution tasks.

Modbus Communication and Network Integration

The module supports both serial and Ethernet communication paths for integration of external devices into FSC environments. The dual RS-485 interfaces support multidrop network configurations, while the Ethernet interface enables high-speed communication with network-based systems.

Communication rates up to 115.2 kbps are supported on RS-485 networks, while Ethernet operation supports standard 10 Mbps and 100 Mbps communication environments. Proper network configuration and cable routing practices assist in maintaining communication stability in industrial applications.

The module is commonly applied in safety management, process control, and industrial automation systems where reliable controller-to-device communication is required.

Frequently Asked Questions

Q: Which communication protocols are supported by the 10008/2/U module?
A: The module supports Modbus RTU through RS-485 interfaces and Modbus TCP/IP through the Ethernet port.

Q: How many communication ports are available?
A: The module provides two RS-485 communication ports and one 10/100 Mbps Ethernet port.

Q: What supply voltage is required for operation?
A: The module requires a 5 VDC power supply rated at 2 A.

Field Installation Guidelines

• Verify compatibility with the installed FSC system revision before installation.

• Ensure the 5 VDC power source meets the specified current requirement.

• Route RS-485 and Ethernet cables separately from high-current power circuits.

• Apply appropriate shielding and grounding methods for communication cabling.

• Follow RS-485 network termination requirements according to the communication topology.

• Inspect cable connectors and communication ports before energizing the system.

• Verify communication diagnostics and network connectivity after commissioning.
