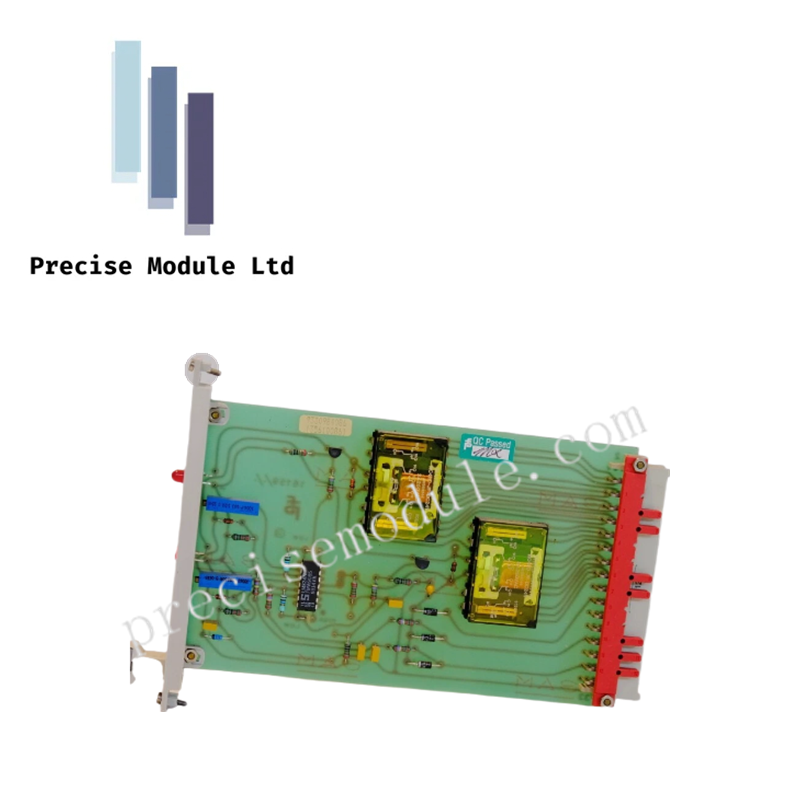

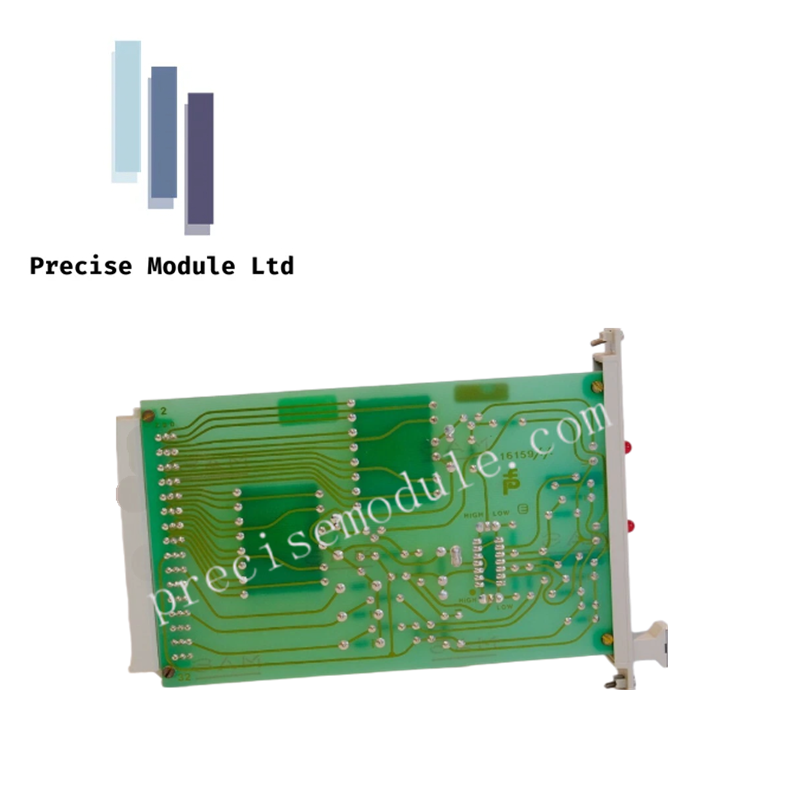

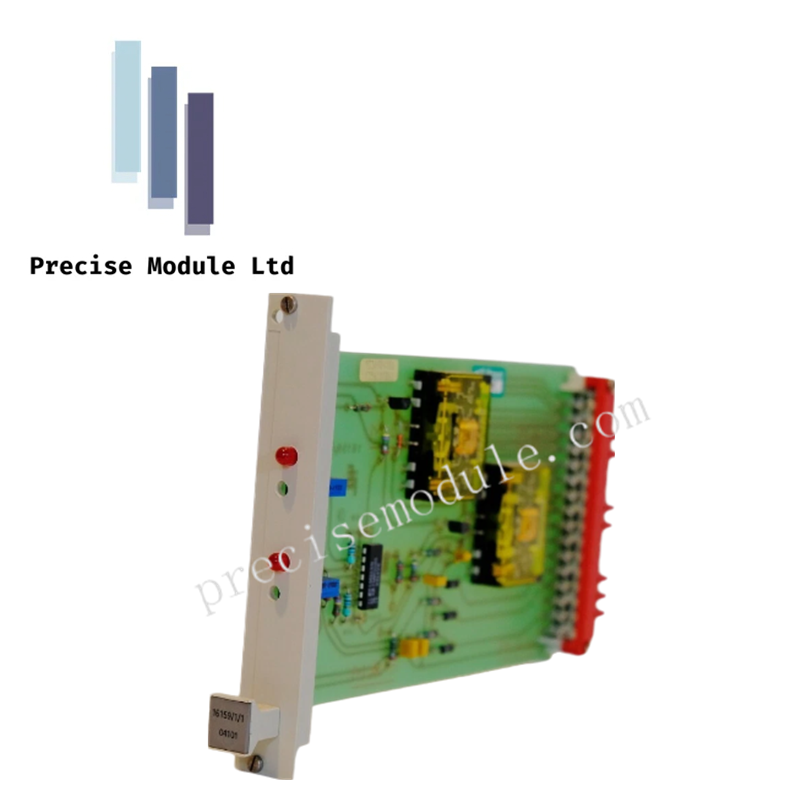

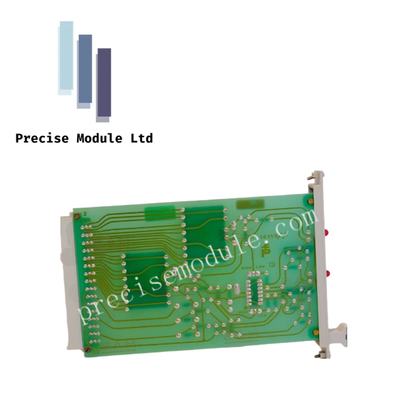

Honeywell 16159/1/1 Digital Input Module

Honeywell 16159/1/1 Digital Input Module

The Honeywell 16159/1/1, also cataloged as the 16159 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within Honeywell process control and safety system architectures.

Hardware Specifications

Channel-to-Channel Isolation and Fieldbus Connectivity

The module enforces channel-to-channel isolation, ensuring that each input remains electrically independent under high-voltage field conditions. Integration with Modbus RTU and ASCII protocols allows deterministic communication across FOUNDATION Fieldbus or Profibus PA networks, supporting distributed control system architectures without signal degradation.

Frequently Asked Questions

Q: Can the module handle mixed AC and DC inputs simultaneously? A: No. Input voltage rating is hardware-specific; modules must be configured for either DC or AC operation.

Q: Is hot-swapping supported in Honeywell racks? A: No. Modules must be de-energized before insertion or removal to avoid rack bus disruption.

Q: How is hardware supervision implemented? A: Each input channel is continuously monitored for integrity, ensuring fail-safe detection of wiring faults or contact failures.

Field Installation Guidelines

• Maintain shield bonding at designated termination points; avoid multiple ground references.
• Route input wiring separately from high-current conductors to minimize EMI.
• Confirm correct voltage configuration before energizing the module.
• Ensure connectors are properly seated to maintain isolation integrity.
• Install within Honeywell-approved enclosures for environmental protection.
