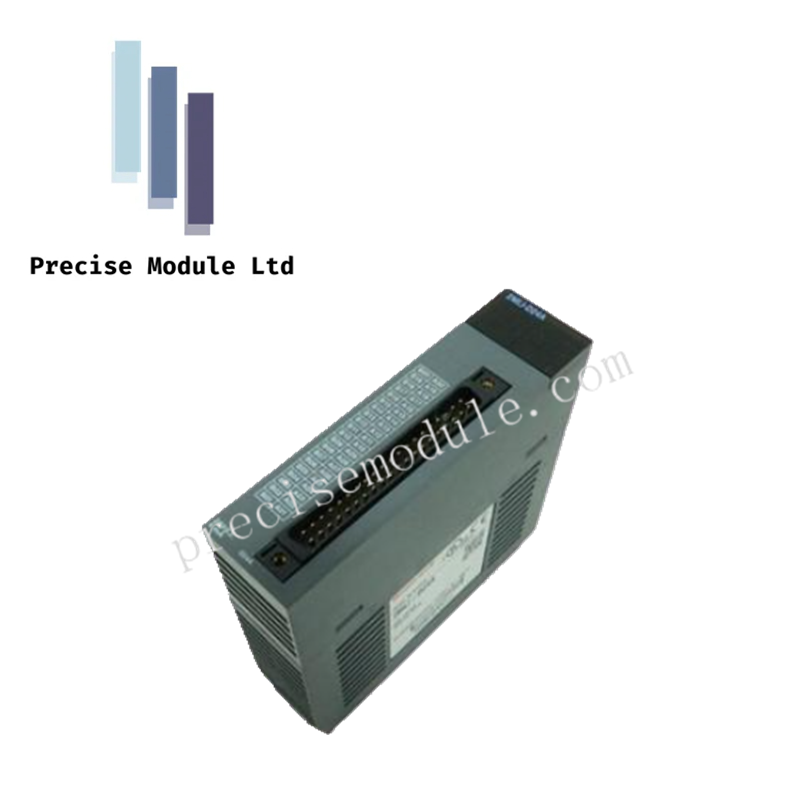

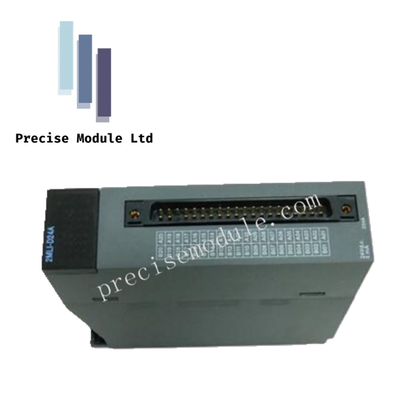

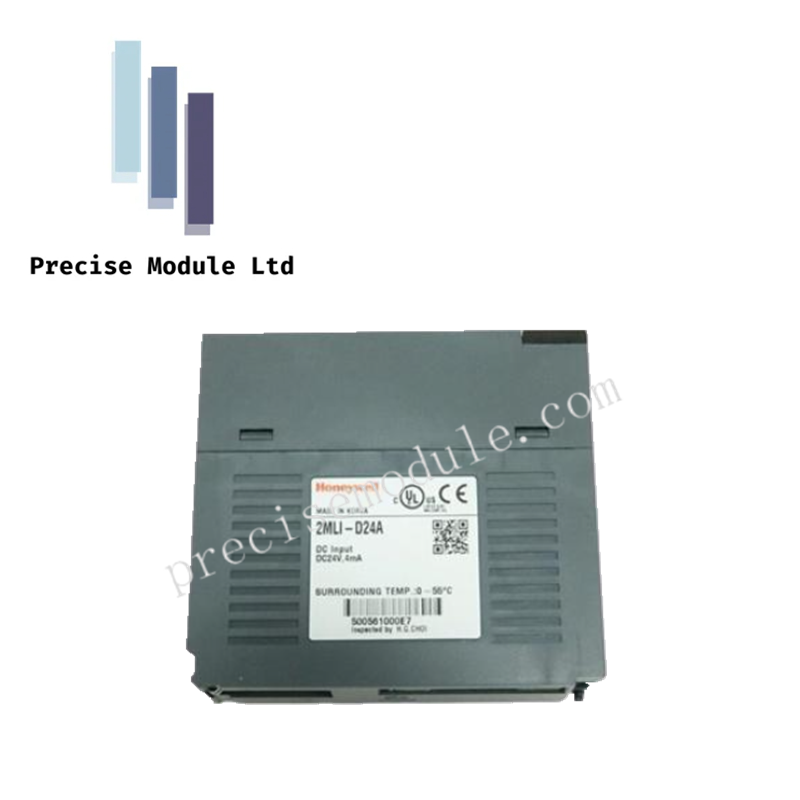

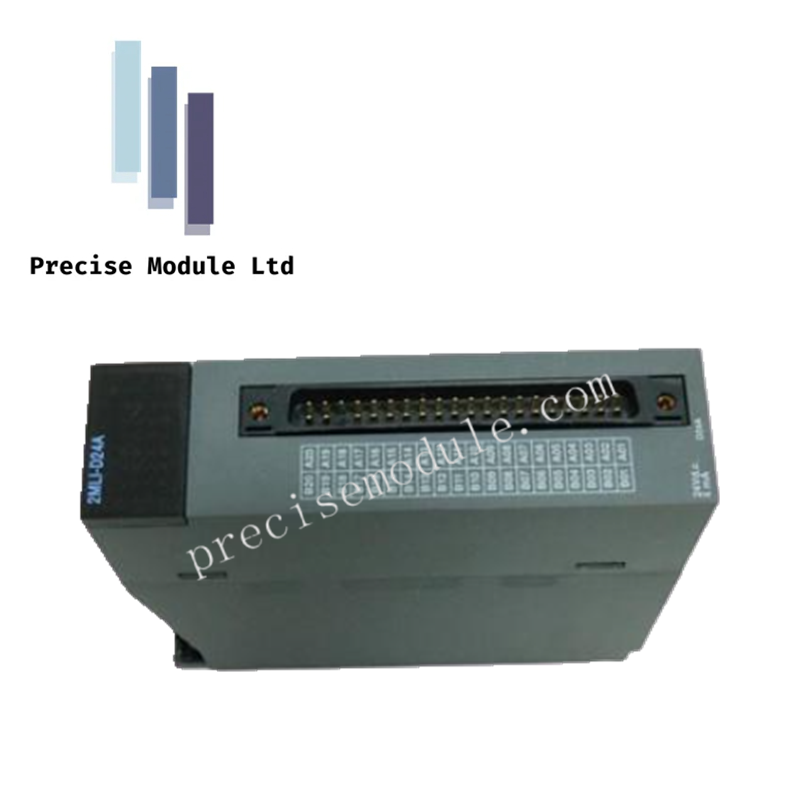

Honeywell 2MLI-D24A Digital Input Module

Honeywell 2MLI-D24A Digital Input Module

Configured for 24 VDC discrete‑signal acquisition in MasterLogic systems, the Honeywell 2MLI-D24A (2MLI-D24A digital input module) provides direct electrical execution for 32‑point sourcing and sinking input channels using photo‑coupler isolation.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

Although the 2MLI‑D24A processes discrete 24 VDC signals rather than analog loops, its photo‑coupler isolation aligns with Honeywell’s mixed‑signal backplane behavior. The isolation design suppresses cross‑talk between adjacent channels, preventing transient coupling from nearby analog modules handling 4‑20 mA HART loops. This ensures deterministic state detection even in high‑density wiring environments where noise propagation is common.

Frequently Asked Questions

Q: Can the 2MLI‑D24A be hot‑swapped? A: The module should not be inserted or removed under power. Live extraction may interrupt backplane scanning and cause channel dropouts.

Q: Does the module require external current‑limiting devices? A: No. The photo‑coupler input structure handles standard 24 VDC sourcing and sinking configurations without additional series components.

Q: How does isolation affect mixed wiring bundles? A: Photo‑coupler isolation reduces conductive coupling, improving signal stability when discrete and analog wiring share the same routing path.

Field Installation Guidelines

Route 24 VDC digital wiring separately from high‑voltage conductors to reduce induced noise. Maintain consistent stripping lengths and proper screw‑terminal torque to ensure stable compression. Use shielded cable only when required by the controller’s grounding scheme; terminate shields at a single point to avoid circulating currents. Verify each input channel’s continuity and polarity before commissioning.
