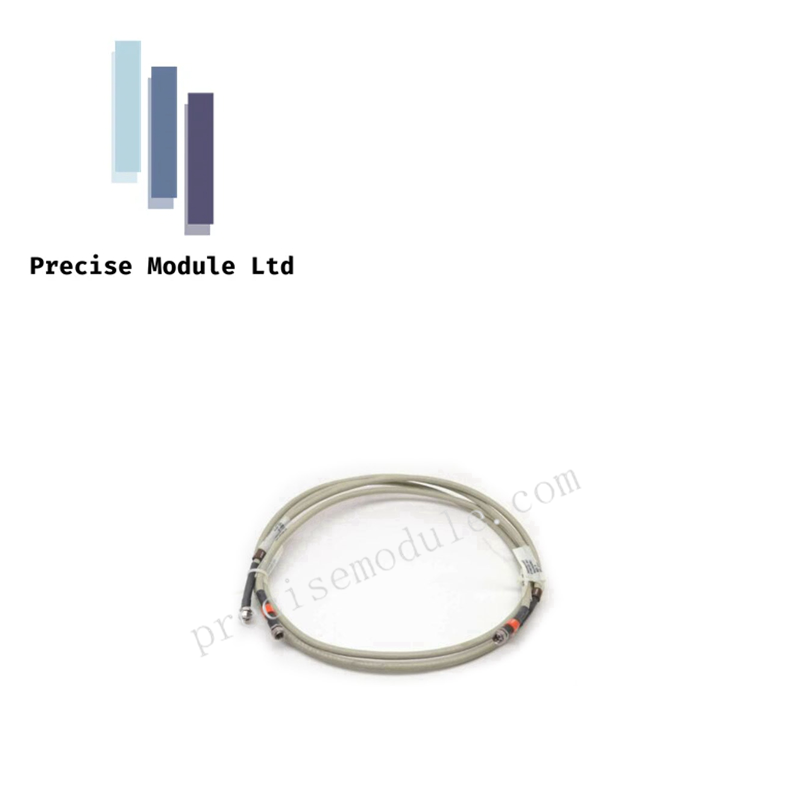

Honeywell 51195153-002 Control Network Cable

Honeywell 51195153-002 Control Network Cable

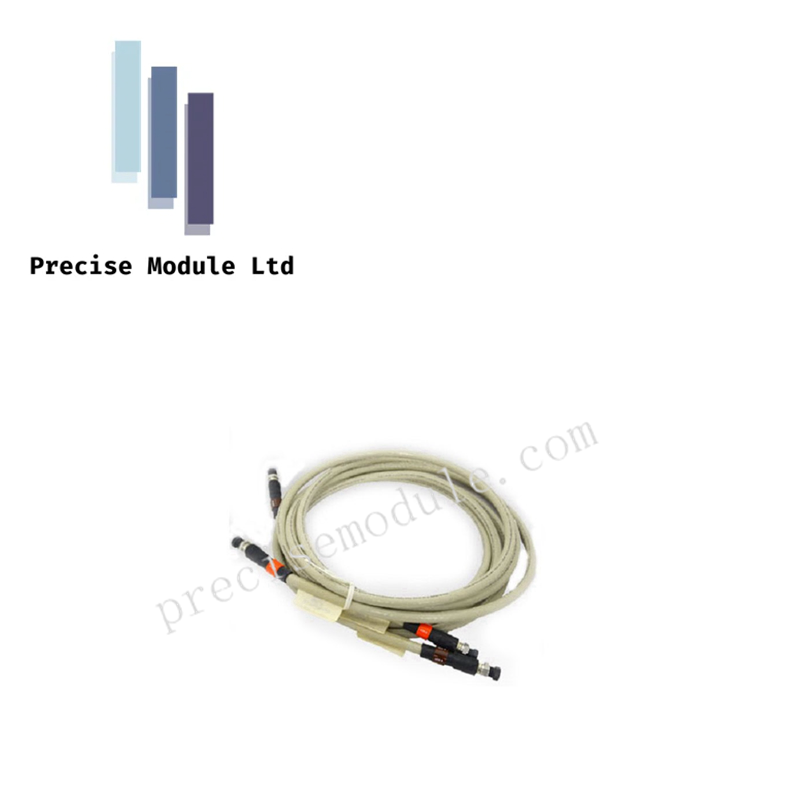

The Honeywell 51195153-002, also cataloged as the MU-NKD002 coaxial cable set, operates as a Universal Control Network (UCN) drop cable for node-to-trunk connectivity within Honeywell TDC 3000 and Experion PKS architectures.

Hardware Specifications

Channel-to-Channel Isolation and Protocol Stability

The 51195153-002 cable maintains impedance stability at 75 Ω, ensuring deterministic communication across UCN layers. Shielding integrity suppresses cross-talk between adjacent coaxial runs, preserving protocol stability for process managers and network interface modules. Proper grounding at the termination end prevents ground-loop interference, critical for long-term reliability in distributed control environments.

Frequently Asked Questions (FAQ)

Q: What is the standard impedance of the cable? A: The RG-6/U coaxial cable is rated at 75 Ω, suitable for UCN data transmission.

Q: Can this cable be used with both HPM and APM modules? A: Yes. It is designed to connect High-Performance Process Managers, Advanced Process Managers, and NIMs to the UCN trunk line.

Q: Does the cable require special grounding? A: Yes. Shielding should be grounded at the system termination end only to avoid ground loops.

Field Installation Guidelines

• Route coaxial cables separately from high-voltage conductors to minimize induced noise.
• Maintain minimum bend radius per RG-6 specifications to prevent mechanical stress.
• Ensure shielding continuity and ground termination at the control cabinet end.
• Verify connector torque and strain relief to avoid mechanical damage during installation.
• Inspect cable integrity before commissioning to confirm no insulation breaches.
