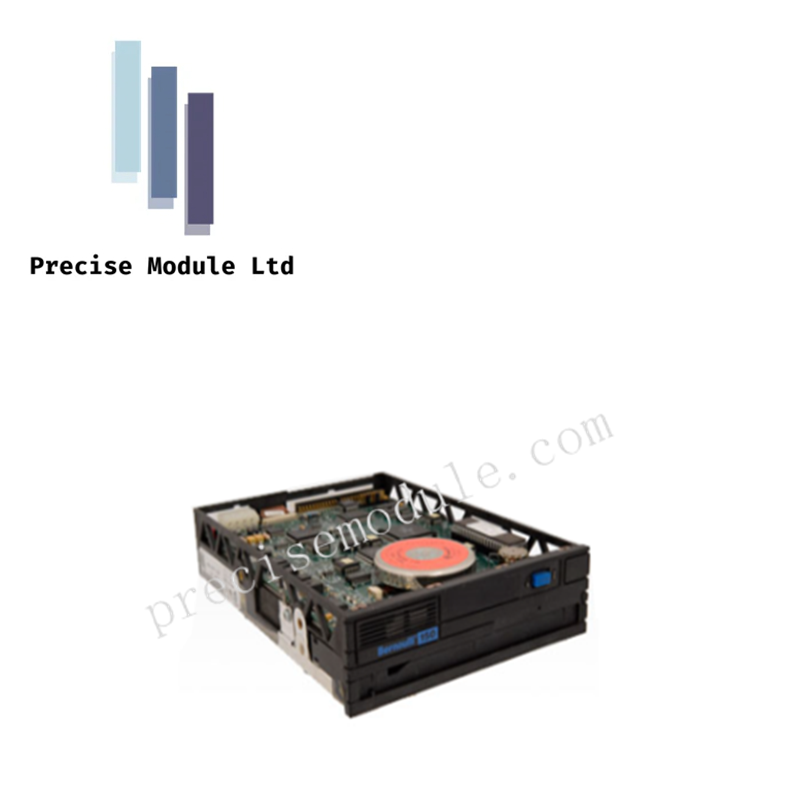

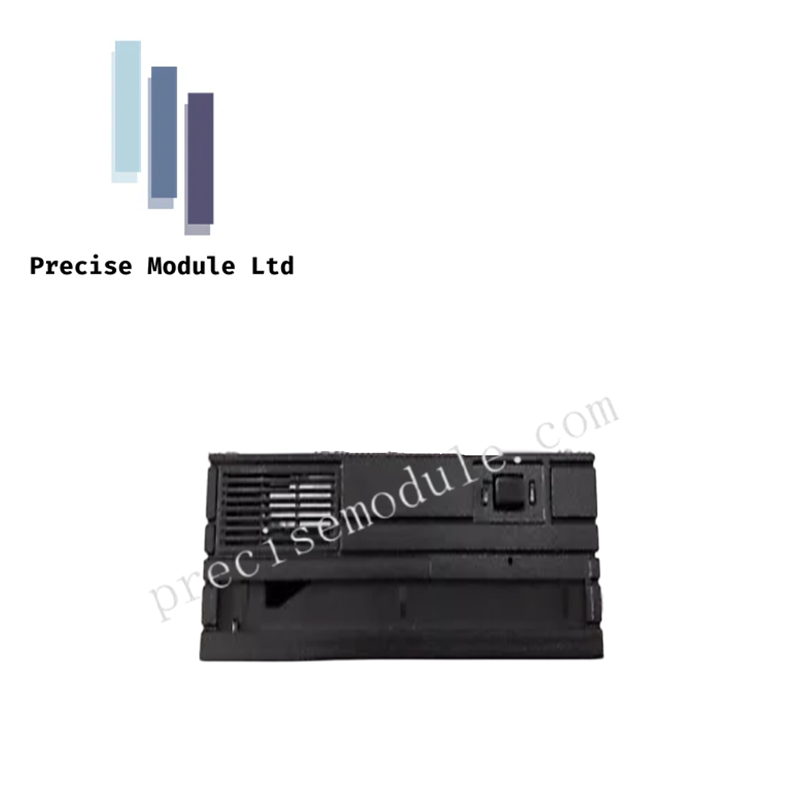

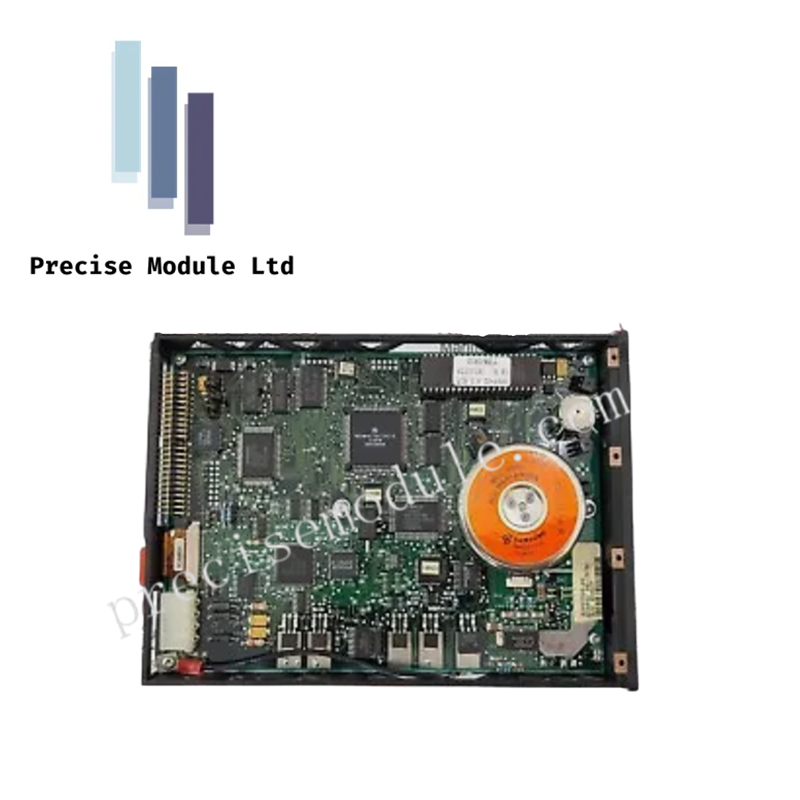

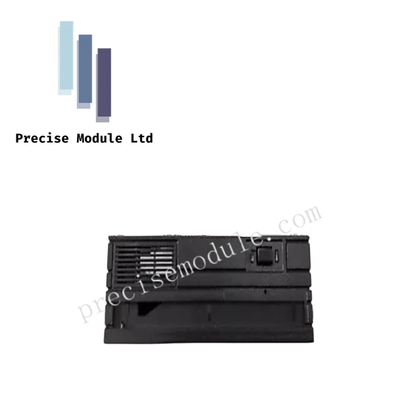

Honeywell 51196483-100 Bernoulli Drive 150MB Cart

Configured for removable data storage and archival functions in Honeywell distributed control environments, the Honeywell 51196483-100 (51196483 Bernoulli Drive 150MB Cart) provides direct SCSI-based mass storage access for system software, historical data, configuration backups, and maintenance records within Honeywell control system networks. The drive utilizes Bernoulli MultiDisk cartridge media and interfaces with legacy Honeywell DCS platforms requiring removable storage support.

Hardware Specifications

SCSI Storage Interface and Control System Data Management

The 51196483-100 provides removable storage capability through a SCSI communication interface commonly used in legacy industrial computing platforms. The drive supports read and write operations on 150 MB Bernoulli cartridge media, enabling offline storage and retrieval of application software, configuration databases, historical process records, and system maintenance files.

Within Honeywell control architectures, removable media devices can be incorporated into maintenance workflows requiring backup retention, software restoration, and system migration activities. Proper SCSI addressing and termination practices are necessary to maintain communication stability within multi-device storage chains.

Frequently Asked Questions

Q: What storage media is required by the 51196483-100?
A: The drive is designed for use with 150 MB Bernoulli MultiDisk cartridge media compatible with the Iomega Beta 150A platform.

Q: Which communication interface is used by the drive?
A: The unit uses a SCSI (Small Computer System Interface) connection for communication with the host system.

Q: Can this drive be used in Honeywell legacy control systems?
A: Yes. Available specifications identify compatibility with Honeywell TDC 3000, Experion PKS, and Local Control Network (LCN) environments.

Field Installation Guidelines

• Verify SCSI ID settings before connecting the drive to an existing storage bus.

• Confirm correct SCSI bus termination according to system architecture requirements.

• Ensure both +5 VDC and +12 VDC power rails are present and within specified tolerances before energizing the unit.

• Mount the drive securely within the designated 5.25 in equipment location.

• Avoid removing cartridge media while read/write operations are active.

• Maintain clean media handling practices to reduce contamination of removable cartridges.

• Inspect SCSI connectors and ribbon cables for bent pins or mechanical damage during maintenance.

• Create verified backups before replacing storage media or performing system migration activities.
