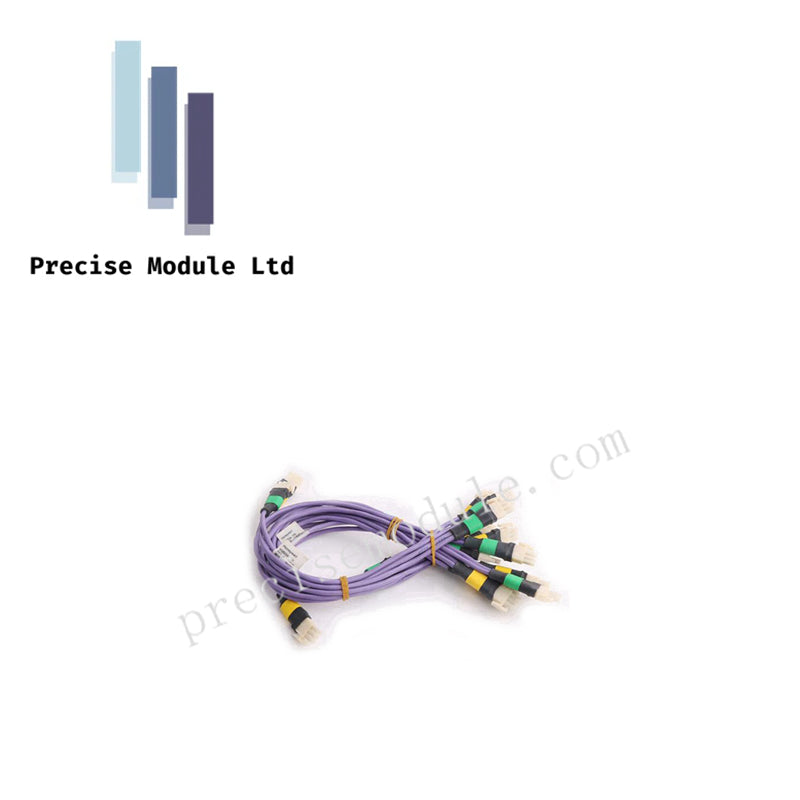

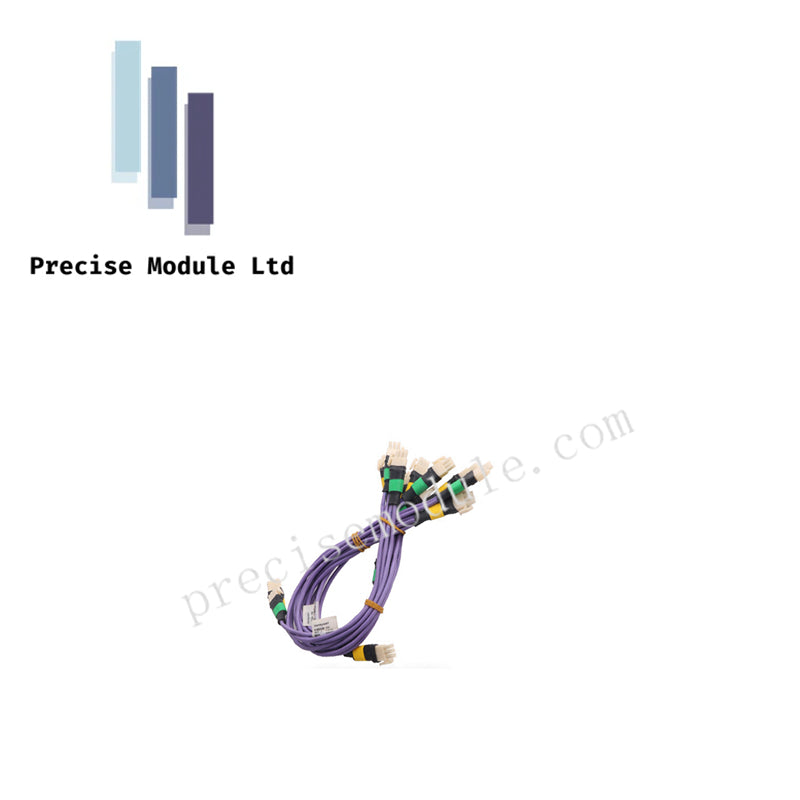

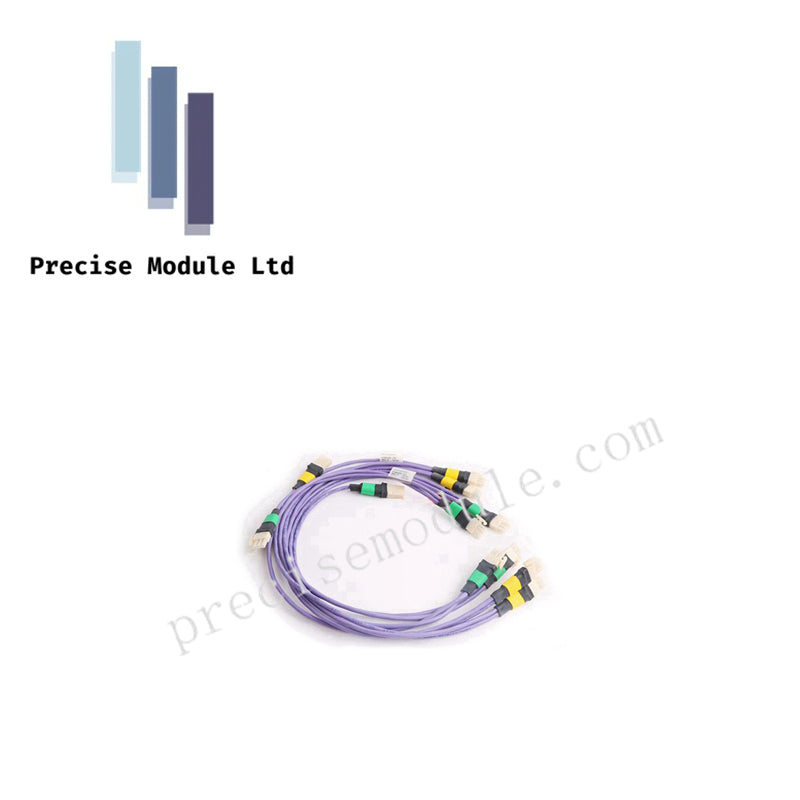

The Honeywell 51202329-110, also cataloged as the 51202329 Violet Drop Cable, serves as a Series C I/O Link 2 (IOL2) harness designated as Cable A for redundant Experion PKS system configurations.

Hardware Specifications

Channel-to-Channel Isolation and Redundant Connectivity

The violet drop cable enforces deterministic channel-to-channel isolation across redundant Series C IOL2 networks. Six discrete drops provide structured connectivity to I/O modules, while violet jacket coloration ensures clear identification in dense wiring environments. Yellow marking labels distinguish Cable A from Cable B, preventing misrouting in dual-channel redundancy. Shield continuity and grounding practices suppress induced noise during installation.

Frequently Asked Questions

Q: Can the 51202329-110 be used interchangeably with Cable B? A: No. It is designated as Cable A; redundant operation requires pairing with Cable B.

Q: How are redundant cables identified in the field? A: Jacket color and yellow marking labels provide clear distinction between Cable A and Cable B.

Q: What is the recommended installation spacing? A: Maintain the 6 in (152 mm) pitch spacing between drops to preserve mechanical integrity and alignment.

Field Installation Guidelines

• Assign Cable A correctly in redundant channel mapping; use yellow labels for identification.
• Route drop cables separately from high-voltage conductors to minimize EMI.
• Ground shielding at the controller end only to prevent ground loop currents.
• Verify continuity and drop assignment during commissioning with loop test equipment.
• Maintain bend radius within manufacturer specifications to protect conductor insulation.
