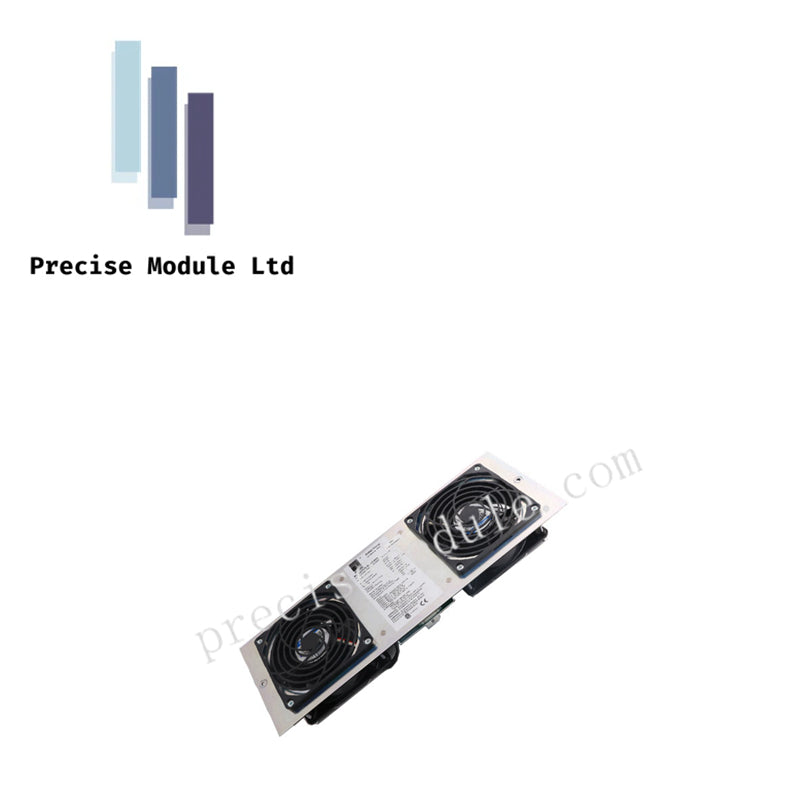

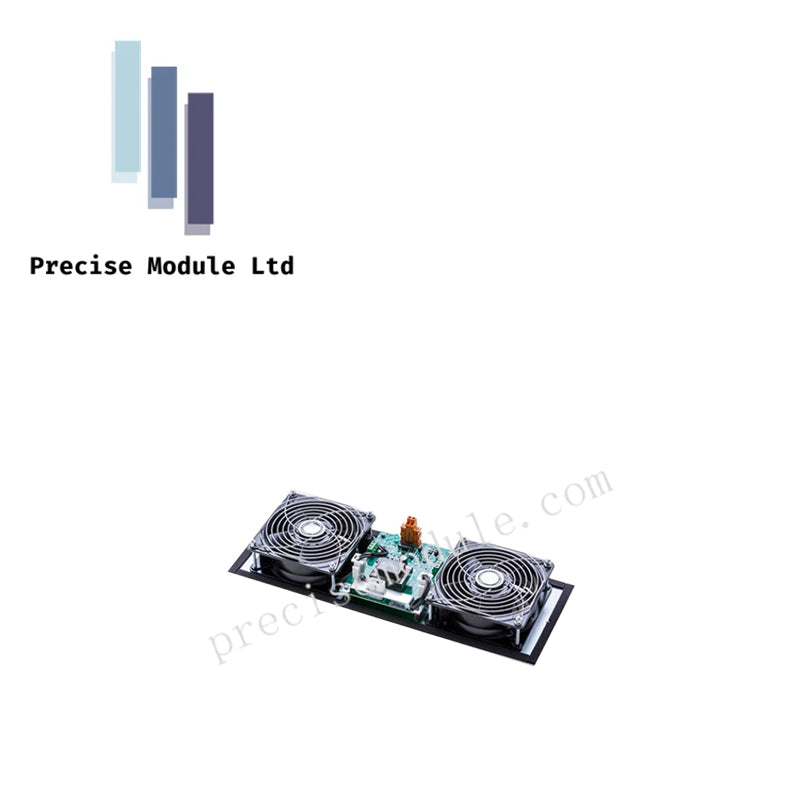

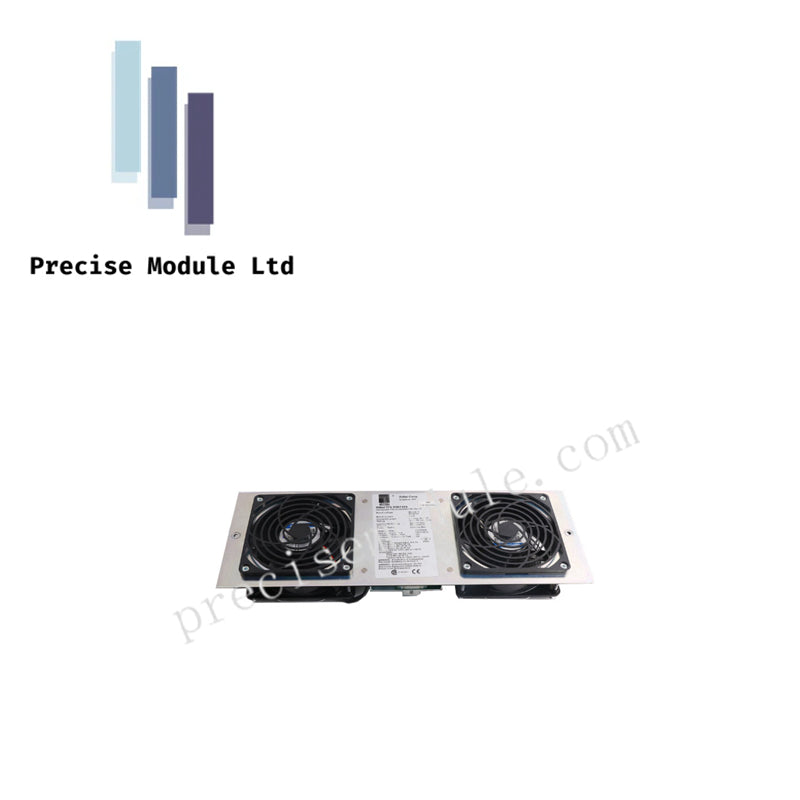

The Honeywell 51304074-100, also cataloged as the 51304074 Cabinet Fan Assembly, operates as a dual-fan cooling unit for airflow management in Honeywell DCS and industrial rack cabinets.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

Although primarily a mechanical cooling device, the 51304074-100 integrates with Honeywell cabinet monitoring systems. Alarm contacts can be wired into 4-20 mA HART loop monitoring channels, ensuring channel-to-channel isolation and preventing electrical noise from propagating into adjacent analog loops. This design supports stable operation in dense control environments.

Frequently Asked Questions (FAQ)

Q: Can the 51304074-100 fan assembly be hot-swapped? A: Mechanical replacement requires cabinet power isolation; alarm wiring must be de-energized before removal.

Q: Does the fan assembly draw backplane current? A: No. It operates from its dedicated AC supply; only alarm contacts interface with monitoring inputs.

Q: How should airflow be verified after installation? A: Confirm unobstructed intake and exhaust paths, and check fan rotation direction during commissioning.

Field Installation Guidelines

• Mount the fan assembly on designated cabinet cutouts using standard fasteners.
• Ensure intake and exhaust paths are unobstructed; avoid cable bundles blocking airflow.
• Route alarm contact wiring separately from AC supply lines to minimize interference.
• Bond chassis to cabinet ground to reduce induced noise.
• Verify AC supply voltage before energizing; check alarm indicators for operational status.
