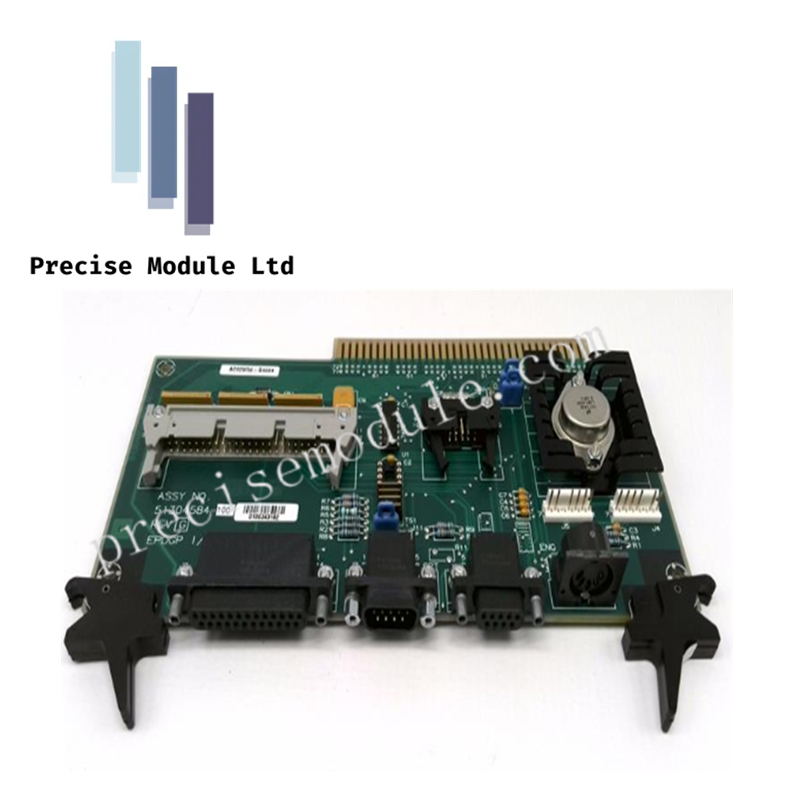

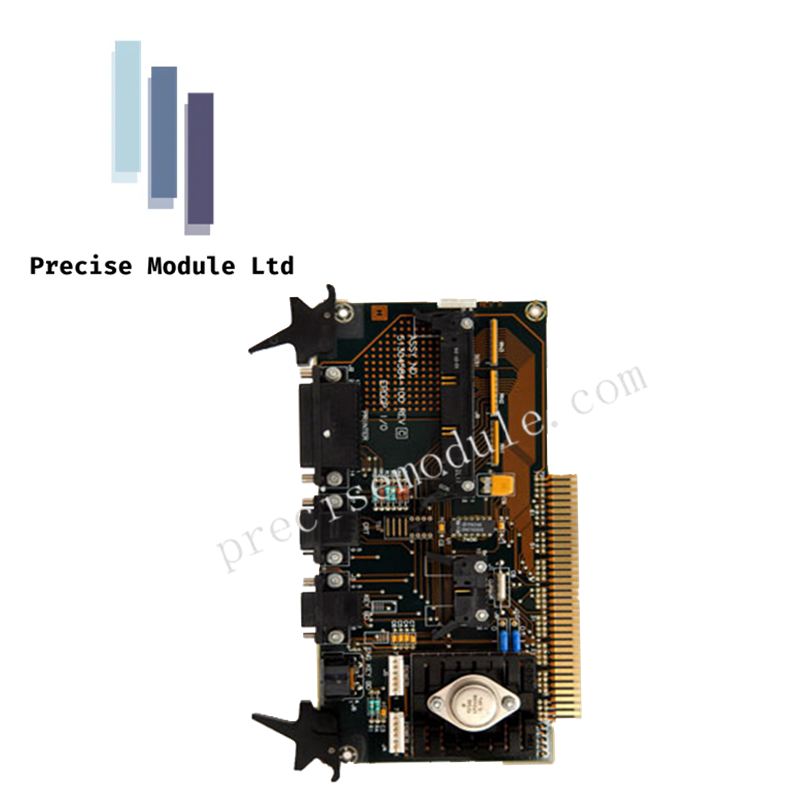

Honeywell 51304584-200 EPDGP I/O Control Board

Configured for field signal interfacing and I/O control functions in Honeywell distributed control environments, the Honeywell 51304584-200 (51304584-200 EPDGP I/O Control Board) provides direct electrical connectivity between process signals and system control infrastructure. The board is designed for integration within Honeywell legacy control architectures, including TDC 3000 systems, supporting signal routing through multiple field interface connections.

Hardware Specifications

Channel-to-Channel Isolation and Signal Interface Integrity

The 51304584-200 functions as an interface layer within Honeywell process automation architectures where field signal acquisition and control data exchange occur between I/O subsystems and higher-level control processors. Proper signal integrity is dependent upon cabinet grounding practices, wiring segregation, and connector termination quality.

In distributed control environments, isolation techniques are commonly applied to reduce the effects of ground potential differences, common-mode noise, and transient disturbances. Maintaining separation between low-level instrumentation wiring and power conductors assists in preserving measurement accuracy and control signal stability throughout the I/O path.

Frequently Asked Questions

Q: Is the 51304584-200 intended for use with Honeywell TDC 3000 systems?
A: Yes. Available documentation identifies compatibility with Honeywell TDC 3000 distributed control system architectures.

Q: What supply voltage is required by the board?
A: The supplied specification identifies a nominal operating supply of 24 VDC.

Q: Does the board support field signal termination through multiple connectors?
A: Yes. The design incorporates a multi-connector interface arrangement intended for field wiring integration and signal distribution.

Field Installation Guidelines

• Verify that the target cabinet and mounting arrangement are compatible with the board dimensions and panel mounting requirements.

• De-energize all associated control circuits before installation or removal.

• Confirm correct 24 VDC polarity prior to applying power.

• Route analog, digital, and power wiring separately where practical to reduce electrical interference.

• Inspect connector contacts for contamination, oxidation, or mechanical damage before commissioning.

• Terminate cable shields according to site grounding standards and avoid unintended ground loops.

• Secure all field wiring to prevent mechanical stress on board-mounted connectors.

• Perform point-to-point I/O verification after installation and before placing the system into operation.
