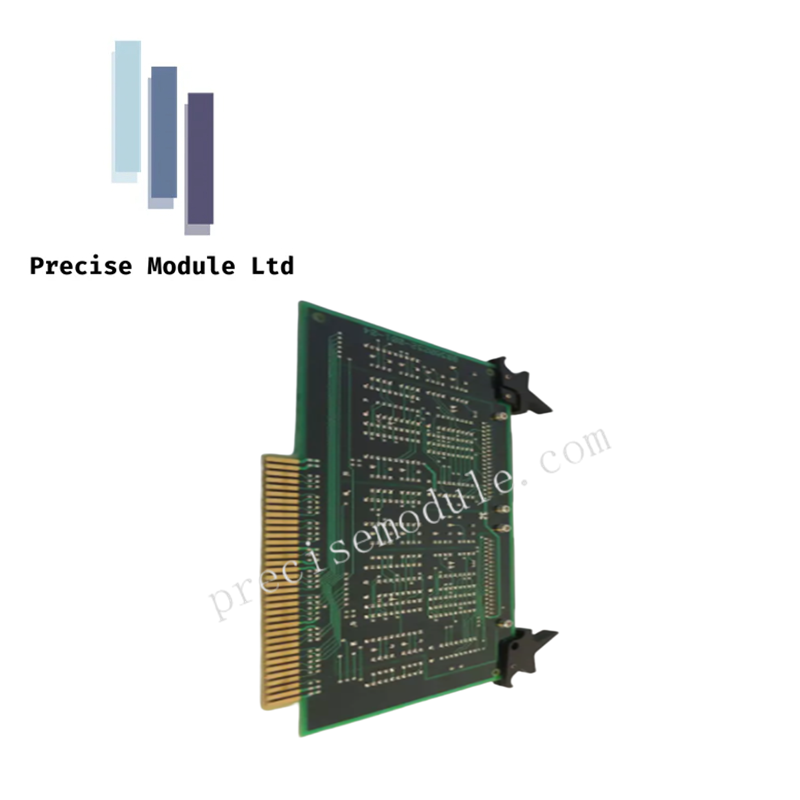

Honeywell 51305072-400 CLCNIO Circuit Board

Honeywell 51305072-400 is a CLCNIO (Coaxial Local Control Network Input/Output) circuit board designed for Honeywell Local Control Network (LCN) architectures. The board provides the interface between node-level processing hardware and the shared coaxial LCN communication backbone, supporting redundant network operation and continuous data exchange within Honeywell control system environments.

LCN Communication Function

The CLCNIO board serves as the network interface layer between a local control node and the Honeywell LCN infrastructure. It enables communication between node processors and the shared coaxial network used for system-wide data transfer.

By managing network connectivity at the node level, the board supports communication across the control system while maintaining compatibility with legacy Honeywell LCN architectures.

Redundant Network Architecture

The module supports dual redundant communication paths through:

• LCN A network channel

• LCN B network channel

The board automatically manages communication between these redundant channels. If the active network path becomes unavailable, the module can switch communication to the alternate network channel, helping maintain continuous system communications.

Node Identification and Addressing

The CLCNIO board requires a dedicated physical address plug or address pack to establish the node identity on the Local Control Network.

This addressing mechanism enables the control system to recognize and communicate with the installed node while maintaining the network topology defined within the Honeywell architecture.

Chassis Integration

The board is designed for installation within Honeywell LCN chassis systems and supports:

• Standard 5-slot Honeywell chassis

• Standard 10-slot Honeywell chassis

Its single-slot card format allows installation as part of existing Honeywell control system hardware without external network interface assemblies.

Legacy System Connectivity

The 51305072-400 is associated with Honeywell control system environments that utilize Local Control Network technology.

The board is identified for use in:

• Honeywell TDC 3000 systems

• Experion PKS environments incorporating legacy LCN infrastructure

In these applications, it functions as a communication interface between node electronics and the coaxial control network.

Serviceability and Maintenance

The module supports online replacement in properly configured redundant systems. When approved maintenance procedures are followed, replacement can be performed without interrupting overall system control functions.

Actual maintenance practices should follow the requirements of the installed Honeywell control system configuration.

Technical Specifications

Network Role

Unlike conventional I/O modules that directly acquire process signals, the 51305072-400 functions as a network communication interface board. Its primary responsibility is maintaining connectivity between node hardware and the Honeywell coaxial Local Control Network, making it an infrastructure component within the control system architecture.

Frequently Asked Questions

Q: What is the primary purpose of the 51305072-400 CLCNIO board?

A: The board interfaces a Honeywell control node with the Local Control Network (LCN), providing communication between node processors and the shared coaxial network backbone.

Q: Does the board support redundant network operation?

A: Yes. The module supports dual redundant communication channels identified as LCN A and LCN B, with automatic switchover capability.

Q: Can the 51305072-400 be replaced while the system is operating?

A: According to the supplied information, online replacement is supported in properly configured redundant systems when approved maintenance procedures are followed.
