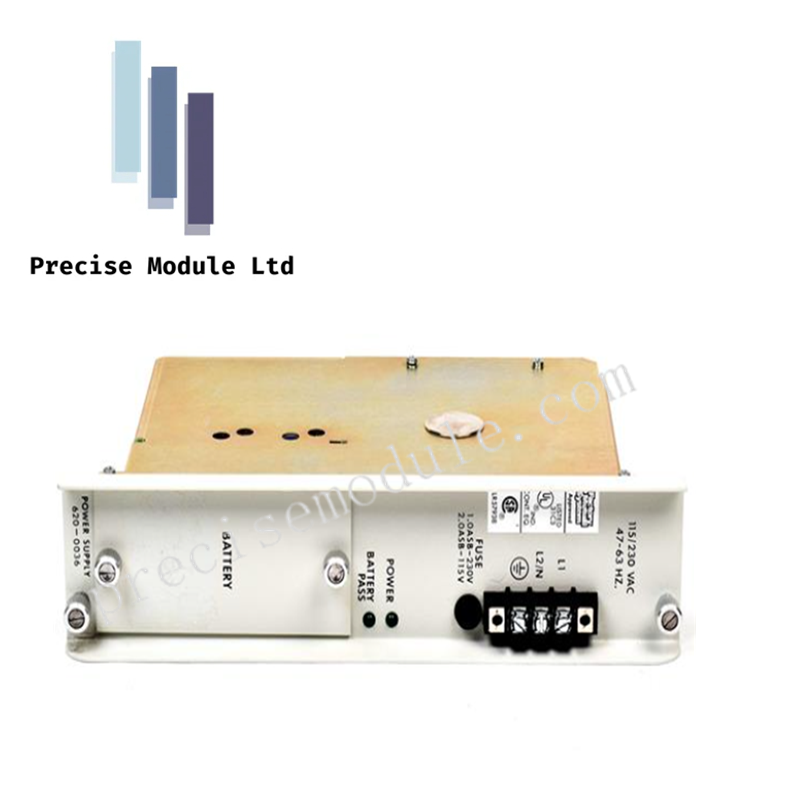

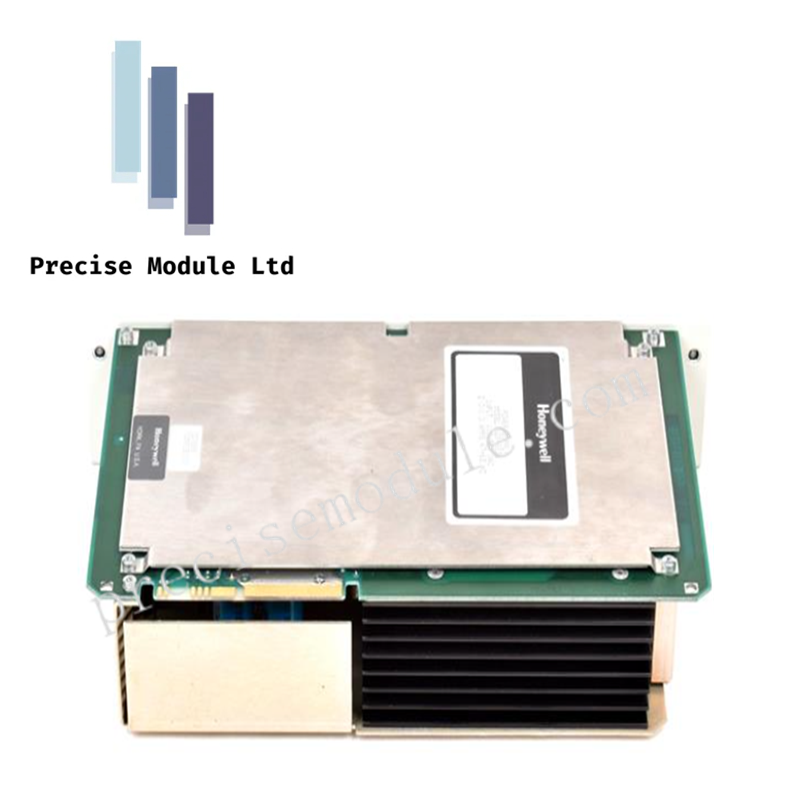

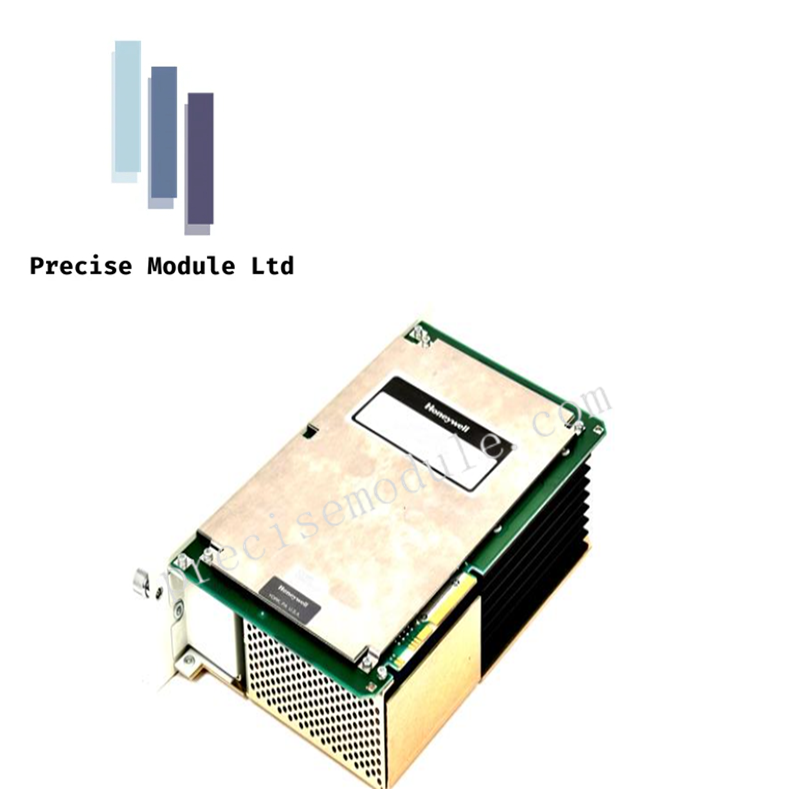

Honeywell 620-0036 AC Power Supply Module

Configured for regulated power conversion and distribution in programmable logic controller platforms, the Honeywell 620-0036, also cataloged as the 620-0036 AC Power Supply Module, provides direct physical and electrical execution.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

While functioning primarily as a robust alternating current power conversion unit, the module ensures isolated power distribution to safeguard sensitive processor backplanes against line transients and voltage fluctuations. The circuitry accommodates dual input ranges of 115 VAC and 230 VAC at 47 to 63 Hz while maintaining steady low-voltage DC output rails for system logic. Built-in thermal management and filtering minimize electromagnetic interference across cabinet power busses, preserving signal integrity throughout the connected industrial control network.

Frequently Asked Questions

Q: Can the input voltage selection be adjusted manually on the 620-0036 module?

A: Yes, the module supports selectable input ranges for 115 VAC and 230 VAC via internal jumpers or terminal configuration to match local plant supply requirements prior to energization.

Q: Does the power supply module support hot-swap capabilities within the PLC rack?

A: No, standard system safety guidelines require completely isolating and powering down the rack enclosure before inserting or removing the power supply unit to prevent electrical shock or backplane damage.

Field Installation Guidelines

• Mount the module securely into the designated chassis slot of the Honeywell PLC system, ensuring all mechanical retention fasteners are fully tightened.

• Verify the input voltage jumper or switch configuration matches the incoming AC line supply (115 VAC or 230 VAC) before connecting mains power.

• Route AC input wiring and DC output distribution cables away from high-voltage motor leads and use proper chassis grounding to prevent ground loops.
