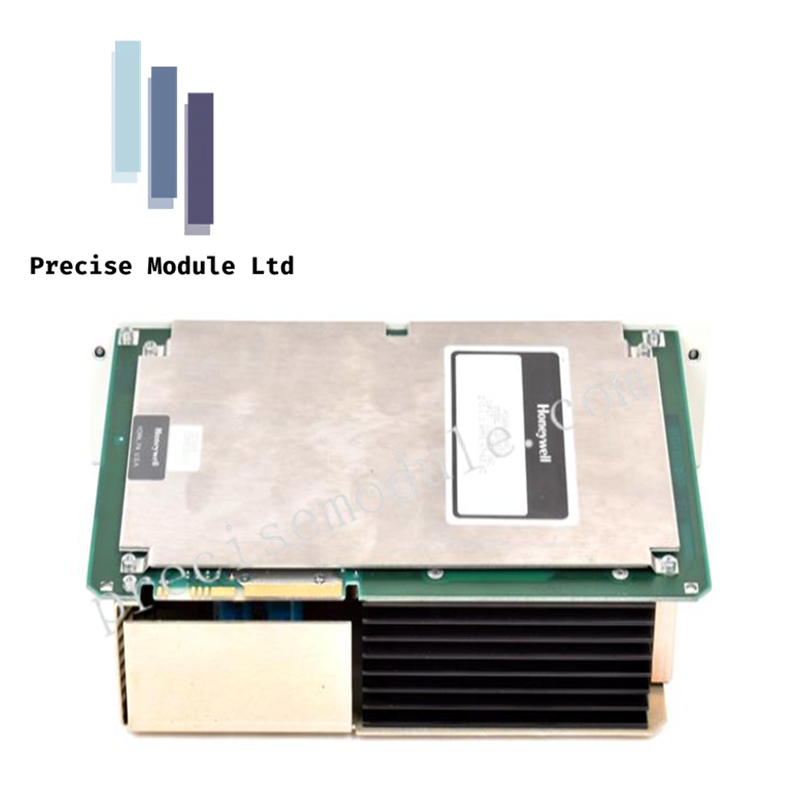

Honeywell 620-0047 DC Power Supply Module

Honeywell 620-0047 DC Power Supply Module

The Honeywell 620-0047 is a DC Power Supply Module designed for the IPC 620 Series and ISSC 600 control systems. It provides regulated DC power for processors and associated control hardware, serving as a central power distribution component within the controller chassis. The module supports industrial DC supply ranges and delivers up to 5 A output capacity for system operation.

Product Specifications

Power Supply Function

The 620-0047 is designed to provide operating power to controller processors and supporting system modules within Honeywell IPC 620 and ISSC 600 platforms. Stable DC power delivery is essential for processor operation, communications, and I/O subsystem functionality.

As a dedicated power module, it forms part of the system infrastructure rather than performing process control or signal processing functions directly.

System Compatibility

This module is associated with the IPC 620 family of industrial control systems, including IPC 620-20, IPC 620-25, IPC 620-30, and IPC 620-35 platforms. It is also used in ISSC 600 system architectures where regulated DC power is required for controller hardware.

When replacing an installed unit, users should verify the part number and applicable system revision to ensure compatibility with the existing rack and power distribution configuration.

Electrical Characteristics

The module operates from a nominal DC input source within the 20-28 VDC range. Its 5.0 A output capability allows it to support controller hardware and associated modules connected through the system backplane or power distribution assembly.

Proper sizing of the external power source should account for the total load requirements of the controller chassis and connected modules.

Installation Considerations

The 620-0047 is intended for installation within compatible Honeywell control system assemblies. As a system power supply module, it should be installed in accordance with the platform's rack configuration and power distribution requirements.

During maintenance activities, power should be isolated and the replacement module matched to the original part number to maintain system compatibility.

Frequently Asked Questions

Q: What systems use the Honeywell 620-0047 power supply module?

A: The module is used with IPC 620 Series platforms, including IPC 620-20, IPC 620-25, IPC 620-30, and IPC 620-35 systems, as well as ISSC 600 control systems.

Q: What input voltage does the 620-0047 require?

A: Available product information specifies an operating input range of 20-28 VDC.

Q: What is the output current rating of the module?

A: The module is rated for 5.0 A output capacity.
