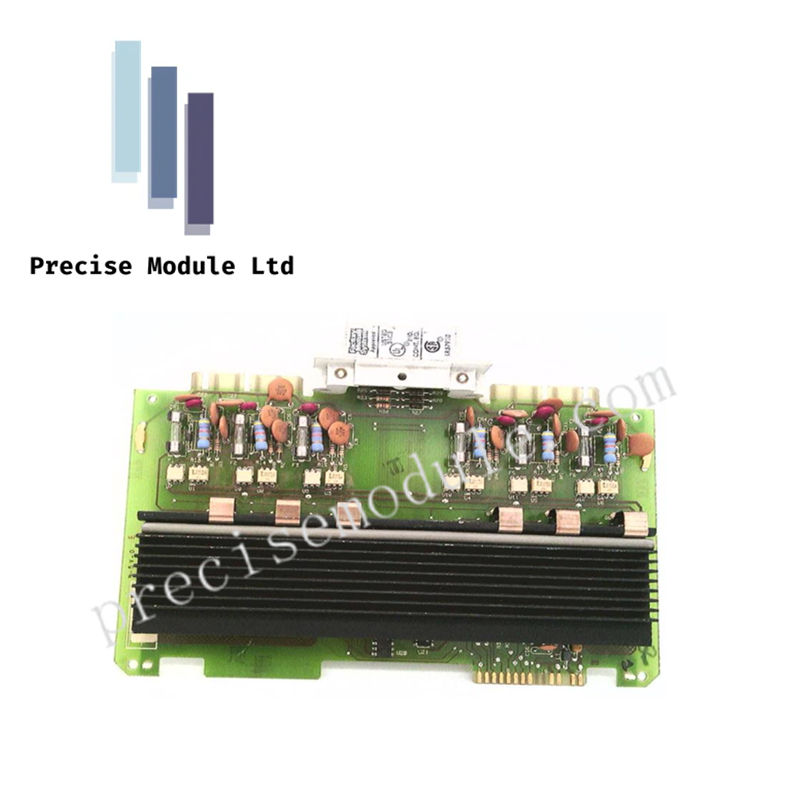

Honeywell 621-0000 Analog Input Module

The Honeywell 621-0000 is an 8-channel analog input module designed for voltage signal acquisition in Honeywell IPC 620, TDC 2000, and TDC 3000 control systems. The module converts multiple field analog signals into digital process data for controller processing, supporting several bipolar and unipolar voltage ranges to accommodate different instrumentation requirements.

Signal Acquisition Capabilities

The module provides eight independent analog input channels for monitoring process variables transmitted as DC voltage signals. Multiple input ranges allow the same module type to be applied across different measurement points without requiring separate hardware versions for each signal level.

For current-based instruments such as 4-20 mA transmitters, signal conversion through an external precision resistor may be required because the module is designed for voltage input measurement.

Technical Specifications

Conversion Performance

The module incorporates a 12-bit conversion architecture with a conversion time of 75 us per channel. This combination provides sufficient resolution for process monitoring applications while allowing rapid scanning of multiple analog inputs.

An accuracy specification of up to +/-0.4% of full scale at 25 deg C supports reliable acquisition of process measurements within the calibrated operating range.

System Integration

The 621-0000 is designed for rack-mounted installation and receives operating power directly from the system backplane. This arrangement simplifies wiring requirements and allows the module to be integrated into existing Honeywell controller racks without a dedicated external power connection.

Compatibility with IPC 620, TDC 2000, and TDC 3000 platforms makes the module suitable for maintaining and expanding legacy Honeywell automation systems.

Diagnostics and Maintenance

Front-panel LED indicators provide basic operational and diagnostic information. These indicators assist maintenance personnel in verifying module status and identifying potential power or communication issues during commissioning and troubleshooting.

Because analog measurements are processed through independent input channels, channel-level signal verification can be performed without affecting the acquisition capability of other inputs.

Frequently Asked Questions

Q: Does the Honeywell 621-0000 accept 4-20 mA transmitter signals directly?

A: The published input ranges are voltage-based. When a 4-20 mA signal must be measured, an external precision resistor is typically used to convert the current signal into a compatible voltage input.

Q: How many field signals can the module monitor simultaneously?

A: The module provides eight independent analog input channels, allowing up to eight analog voltage signals to be monitored within a single module.

Q: Which Honeywell control systems support the 621-0000 module?

A: The module is specified for use with Honeywell IPC 620, TDC 2000, and TDC 3000 control systems, subject to the applicable rack and system configuration requirements.
