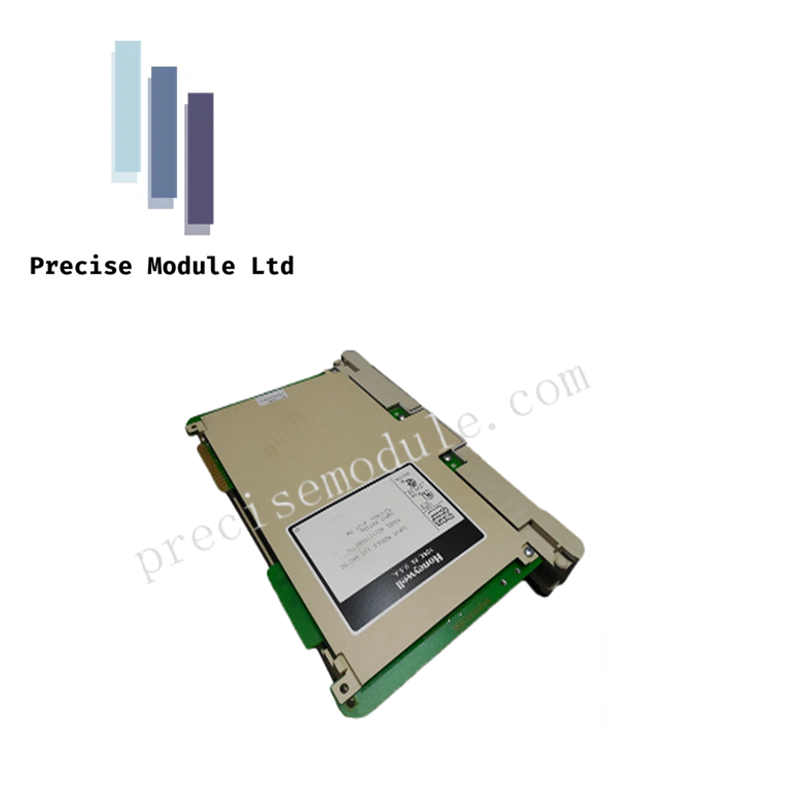

Honeywell 621-0021 Diagnostic Module

Manufacturer: Honeywell
Product No.: 621-0021
Condition：in Stock
Product Type: Diagnostic Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 590g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Honeywell 621-0021 Diagnostic Module

The Honeywell 621-0021 Diagnostic Module is a rack-mounted diagnostic and watchdog monitoring module for Honeywell IPC 621 and Logic Manager control systems. It provides system diagnostic functions, fault monitoring, watchdog supervision, and alarm output capabilities while occupying a fixed number of controller I/O addresses.

Diagnostic and System Functions

The module continuously monitors controller operation and diagnostic conditions within the control system. Built-in watchdog functionality helps detect processor or communication faults and can initiate predefined output actions when abnormal conditions are detected.

A 4-position DIP switch allows local configuration of watchdog timing, operating mode selection, and fault response behavior.

Output and Monitoring Features

The module includes relay outputs that can be used for fault annunciation, interlocking, or external alarm circuits.

Supported output ratings include:

1 A at 24 VAC
500 mA at 115 VAC
80 mA at 230 VAC
1 A at 24 VDC

Configuration Options

The onboard 4-position DIP switch provides hardware-level configuration:

Switches 1 and 2: Watchdog timer setting
Switch 3: Parallel or serial I/O mode selection
Switch 4: Fault response configuration

Technical Specifications

Parameter	Specification
Model	621-0021
Brand	Honeywell
Product Type	Diagnostic Module
Compatible Systems	Honeywell IPC 621, Logic Manager
I/O Address Usage	8 points
Supply Voltage	5 VDC from rack bus
Typical Current Consumption	150 mA
Response Time	Approx. 2 ms per scan
Isolation Voltage	500 VDC
AC Output Rating	1 A at 24 VAC
AC Output Rating	500 mA at 115 VAC
AC Output Rating	80 mA at 230 VAC
DC Output Rating	1 A at 24 VDC
Operating Temperature	0 deg C to 60 deg C
Dimensions	4.5 in x 1.5 in x 10.0 in
Dimensions	11.4 cm x 3.8 cm x 25.4 cm
Weight	0.59 kg

Installation Notes

The module is installed directly into a compatible IPC 621 or Logic Manager rack and receives operating power from the backplane. Configuration switches should be verified before commissioning to ensure correct watchdog and fault-handling behavior.

Frequently Asked Questions

Q: How many I/O addresses does the 621-0021 use?

A: The module occupies 8 fixed I/O address points within the control system.

Q: How is the module powered?

A: The module receives 5 VDC directly from the rack backplane and does not require an external power supply.

Q: What is the purpose of the onboard DIP switch?

A: The 4-position DIP switch is used to configure watchdog timing, select serial or parallel operating mode, and define fault response behavior.
