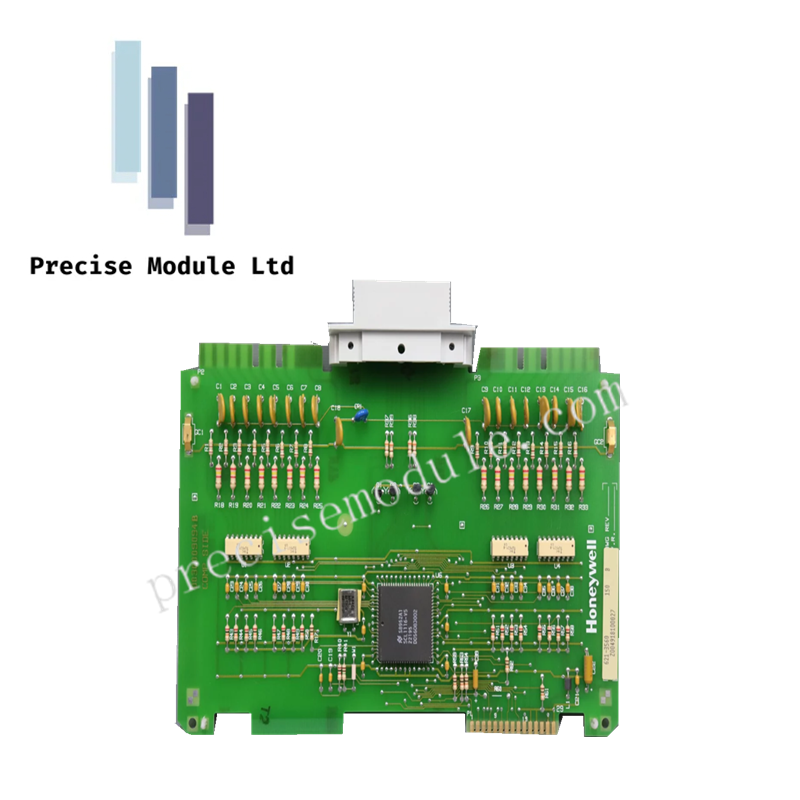

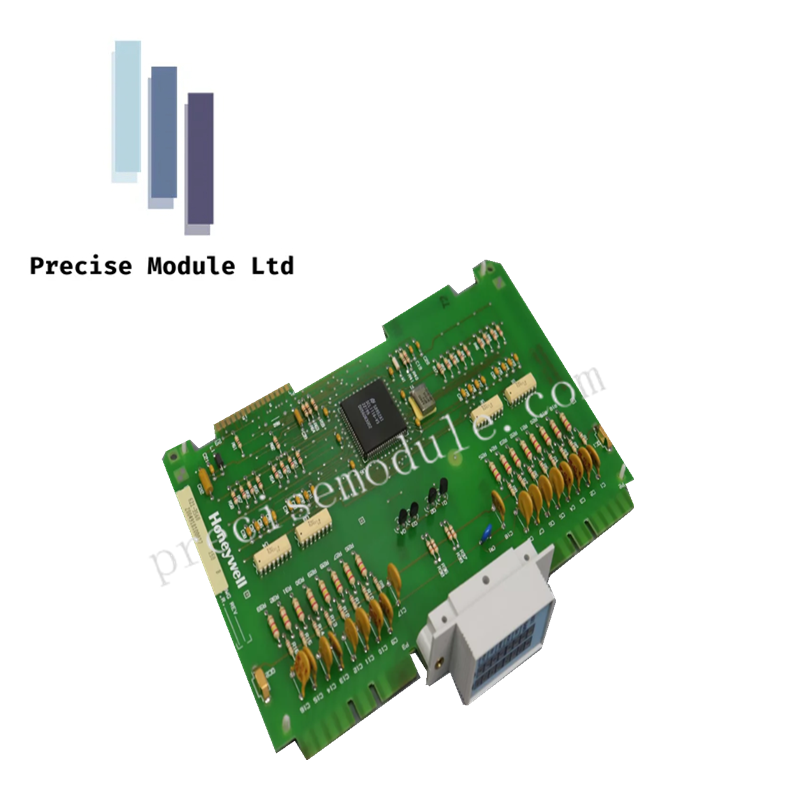

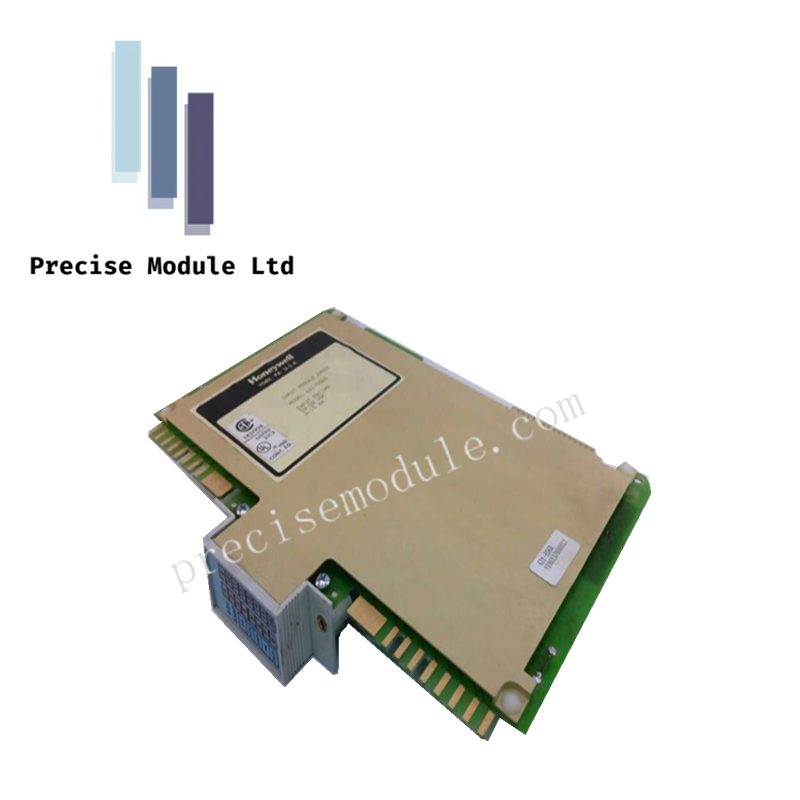

Honeywell 621-3560 Digital Input Module

The Honeywell 621-3560 is a 16-point digital input module designed for Honeywell IPC 620 control systems and related automation platforms. It accepts DC field signals from switches, sensors, and other discrete devices, providing isolated input channels that can be configured for either sink or source wiring arrangements. The module is intended for reliable status monitoring in PLC and DCS I/O applications.

Input Functions

The module provides 16 digital input channels for monitoring discrete field signals. Its isolated input architecture helps separate field wiring from internal control electronics and reduces the effects of electrical noise between input circuits and the control system.

Support for both sink and source input configurations provides flexibility when integrating with different sensor and switch types commonly found in industrial installations.

Electrical Characteristics

The 621-3560 operates with field input voltages from 18 VDC to 28 VDC and is designed for nominal 24 VDC systems. This voltage range covers most standard industrial discrete input applications.

Input current consumption varies according to channel status and operating conditions, with a specified range of 6 mA to 15 mA. Proper field-device sizing should account for the required input current.

System Integration

The module is designed for Honeywell IPC 620 processor platforms, including systems such as the 620-25 and 620-35 processors. It has also been identified for use within certain TDC 3000 DCS implementations where compatible I/O infrastructure is employed.

Installation is intended in dedicated IPC 621 I/O chassis slots. The module supports compatibility with Honeywell double swing terminal blocks, allowing field wiring to remain connected during selected maintenance procedures.

Environmental Characteristics

The specified operating temperature range is -40 deg C to +70 deg C, supporting installation in a wide variety of industrial control environments.

The module is rated for operation in humidity levels from 5% to 95% RH, non-condensing. These limits should be observed to ensure reliable long-term operation.

Technical Specifications

Wiring Considerations

The module supports sink and source input configurations, allowing it to interface with a wide range of industrial field devices. Input voltage should remain within the specified operating range to ensure correct state detection and reliable signal acquisition.

Frequently Asked Questions

Q: What type of field devices can be connected to the 621-3560?
A: The module is intended for discrete DC input signals from devices such as limit switches, proximity sensors, pushbuttons, auxiliary contacts, and other digital field inputs operating within the specified voltage range.

Q: Does the 621-3560 support both sink and source wiring methods?
A: Yes. The module supports isolated sink/source digital inputs, allowing integration with different field-device wiring conventions.

Q: Which Honeywell systems are compatible with this module?
A: The module is designed for IPC 620 series control systems, including 620-25 and 620-35 processors, and is also associated with certain TDC 3000 DCS installations using compatible I/O hardware.

Q: Can field wiring be maintained without removing all terminal connections?
A: The module is compatible with Honeywell double swing terminal blocks, which are designed to facilitate maintenance while preserving field wiring connections.
