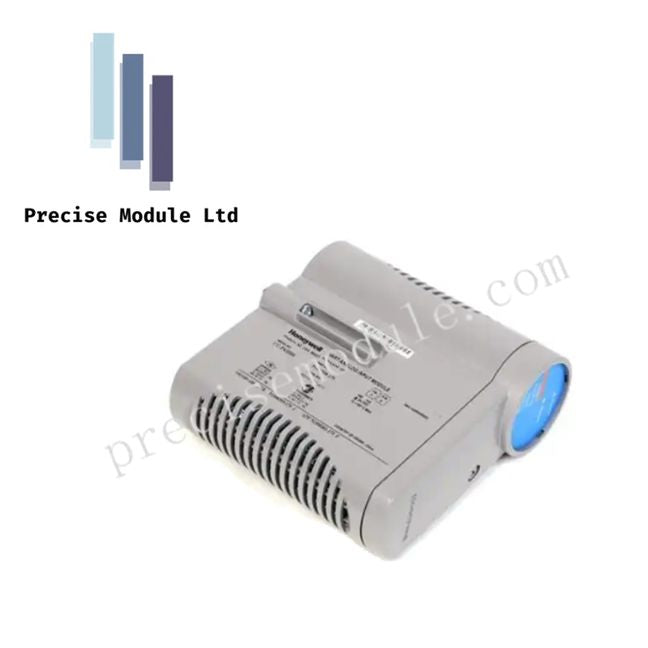

Honeywell 8C-PAIH52 51307070-175 Analog Input Module

Honeywell 8C-PAIH52 Analog Input Module

The Honeywell 8C-PAIH52, also cataloged as the 51307070-175 analog input module, operates as a dedicated hardware component for multi-channel analog signal acquisition within Honeywell Series 8 distributed control systems.

Hardware Specifications

4-20 mA HART Loop Protocol

The 8C-PAIH52 supports standard 4–20 mA current loops and voltage inputs, with integrated HART 6.0 protocol for intelligent instrument asset management. Channel-to-channel isolation ensures deterministic acquisition, while the 16-bit A/D converter provides high-resolution signal processing. Cold junction compensation is not required for this module, as it is designed for direct analog signal interfacing.

Frequently Asked Questions

Q: Can the 8C-PAIH52 be hot-swapped during operation? A: The module supports replacement within Series 8 chassis; however, system power isolation is recommended to avoid transient signal loss.

Q: What is the minimum scan cycle for all channels? A: The module completes a full 16-channel scan in 50 ms.

Q: How does the module handle HART communication? A: HART 6.0 protocol is supported, enabling integration with asset management systems for diagnostics and configuration.

Field Installation Guidelines

• Mount the module securely in the Series 8 chassis slot with proper alignment.
• Use shielded cabling for analog inputs to minimize EMI.
• Maintain separation between analog signal wiring and high-voltage circuits.
• Verify polarity and compliance with supported ranges (4–20 mA, 0–20 mA, 1–5 VDC, 0–5 VDC).
• Observe environmental limits of -40 to +70 deg C and 5–95% RH non-condensing.
• Ensure IP20 protection is adequate for the installation environment; additional enclosure may be required in harsh conditions.
