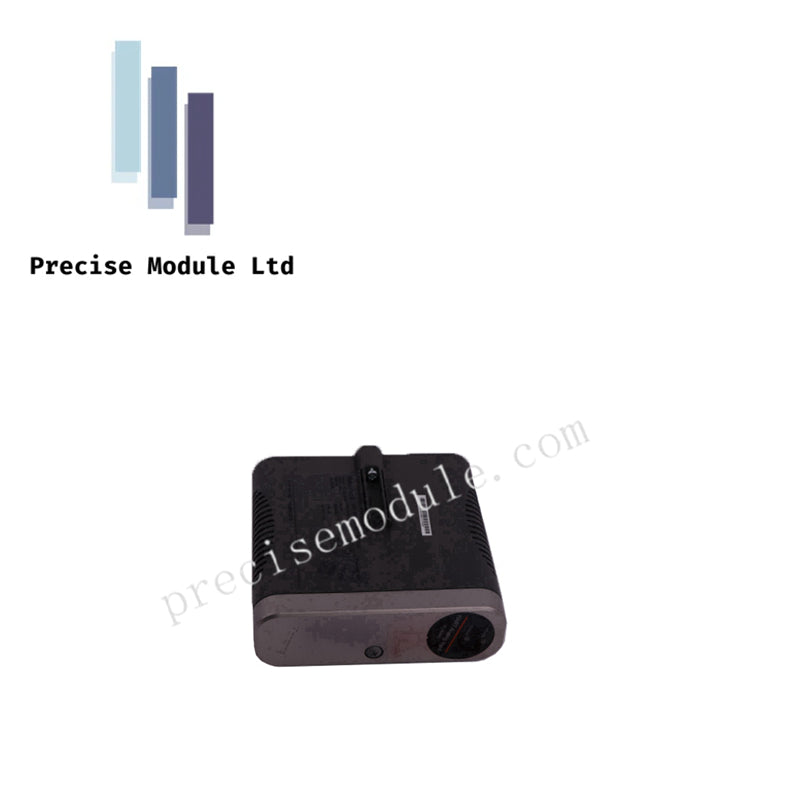

Honeywell 8C-PAON01 51454357-175 Analog Output Module

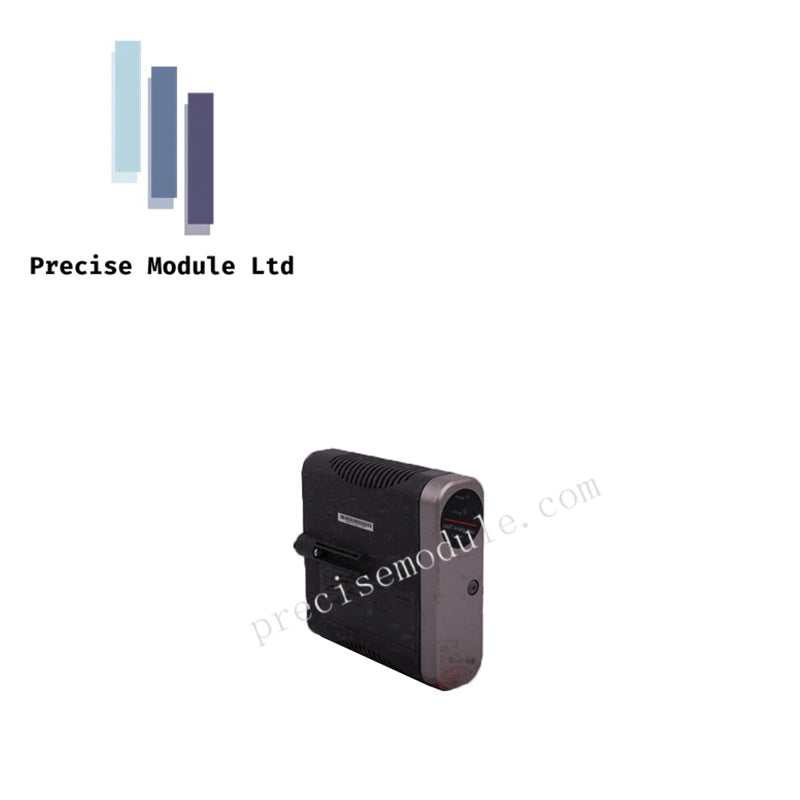

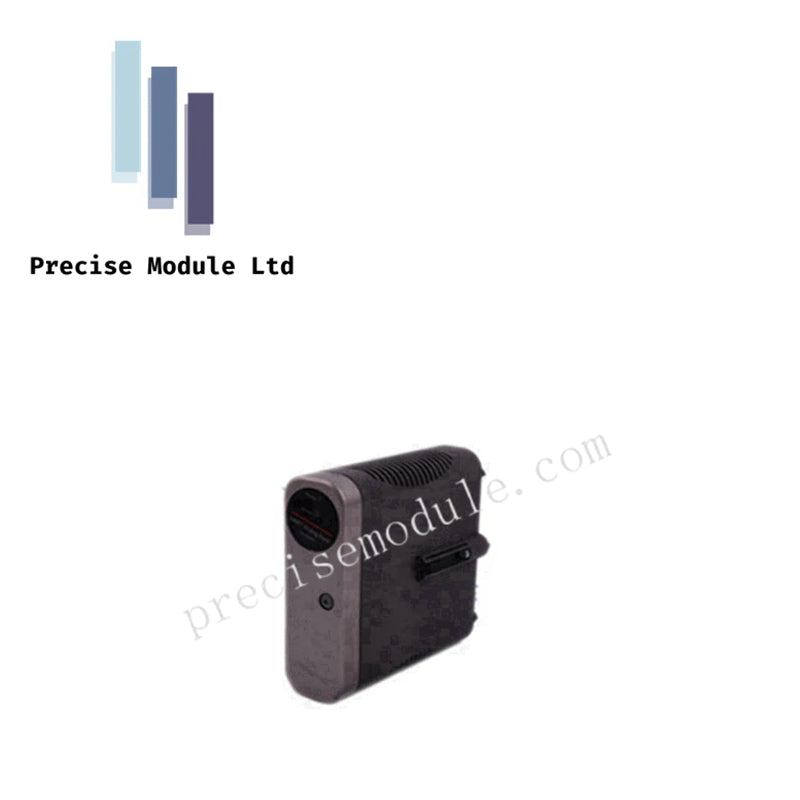

Honeywell 8C-PAON01 Analog Output Module

The Honeywell 8C-PAON01, also cataloged as the 51454357-175 analog output module, operates as a dedicated hardware component for current loop signal generation within Experion PKS and C300 distributed control systems.

Hardware Specifications

4-20 mA HART Loop Protocol

The 8C-PAON01 supports deterministic 4–20 mA current loop outputs with integrated HART protocol for intelligent field device communication. Configurable ranges (0 mA or 2.9–21.1 mA) allow flexible adaptation to process requirements. Channel-to-channel isolation ensures stable operation, while fail-safe options provide controlled behavior under fault conditions. Ripple suppression and calibrated accuracy maintain compliance with industrial control standards.

Frequently Asked Questions

Q: Can the 8C-PAON01 be hot-swapped in Series 8 chassis? A: Yes, the module supports hot-swap replacement when mounted on compatible IOTA bases.

Q: What is the maximum load resistance supported? A: The module supports up to 800 Ω resistive load with compliance voltage limited to 16 V.

Q: How does the fail-safe configuration work? A: Each channel can be set to hold its last value or shed to a predefined safe value during fault conditions.

Field Installation Guidelines

• Mount the module securely on the designated IOTA base (non-redundant or redundant).
• Use shielded cabling for analog outputs to minimize EMI.
• Maintain separation between analog wiring and high-voltage conductors.
• Verify polarity and compliance voltage before energizing.
• Observe environmental limits and ensure adequate ventilation for operation up to 60 deg C.
• Confirm diagnostic indicators during commissioning to validate output states.
