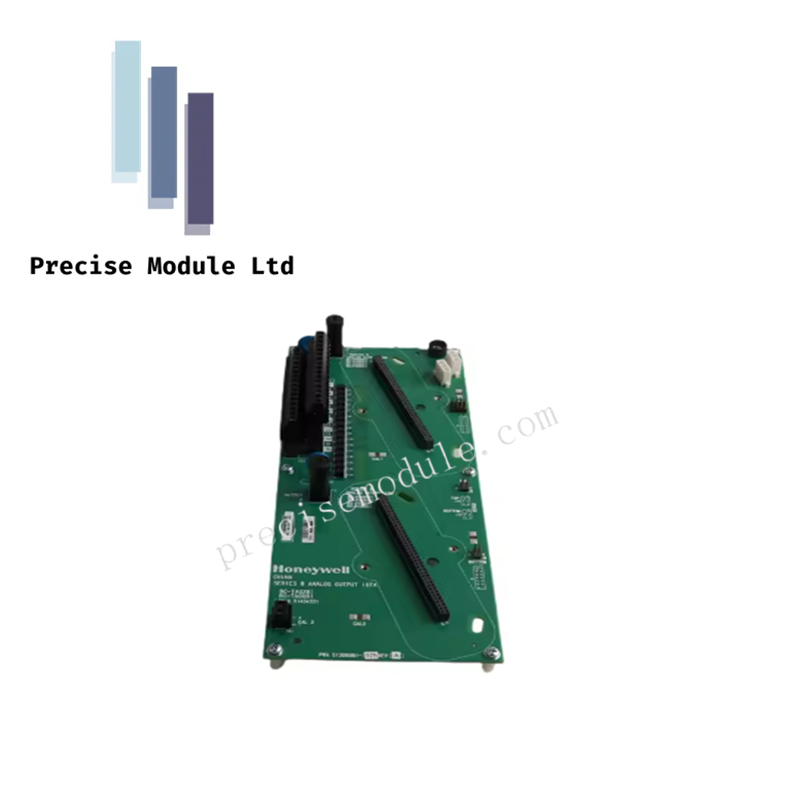

Honeywell 8C-TAOX61 51306981-175 Analog Output Module

Honeywell 8C-TAOX61 51306981-175 Analog Output Module

  • Manufacturer: Honeywell

  • Product No.: 8C-TAOX61 51306981-175

  • Condition：in Stock

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Shanghai/Yiwu/Shenzhen

  • Warranty: 12 months

Honeywell 8C-TAOX61 Analog Output Module

The Honeywell 8C-TAOX61, also cataloged as the 51306981-175 Analog Output Module, provides 16-channel analog signal generation with redundancy and fail-safe features for Experion PKS Series 8 and C300 control networks.

Hardware Specifications

Parameter Specification
Model 8C-TAOX61
Brand Honeywell
Channels 16 independent analog outputs
Signal Type 4–20 mA current loops, 0–10 VDC configurable
Resolution 16-bit DAC
Accuracy ±0.1% to ±0.35% of full scale
Load Resistance Up to 750–800 Ω
Update Rate 50–250 ms synchronous refresh
Power Supply 24 VDC nominal (±10%)
Power Consumption 3.5–6 W max
Isolation 1500 VDC field-to-bus, 500 VDC channel-to-channel
Redundancy 1:1 hardware redundancy supported
Hot-Swap Online replacement supported
Safety Features FAILOPT, open-wire detection, overcurrent protection
Operating Temp -40 to +60 deg C (extended +70 deg C)
Form Factor Series 8 IOTA, conformal coating options

4-20 mA HART Loop Protocol

The 8C-TAOX61 supports 4-20 mA HART loop protocol, enabling simultaneous analog output control and digital diagnostics. This ensures precise actuator positioning while maintaining communication integrity. Channel isolation prevents interference across multiple loops.

Frequently Asked Questions

Q: Can the 8C-TAOX61 be replaced while the system is powered? A: Yes, the module is hot-swappable and supports online replacement without interrupting field loops.

Q: What is the redundancy switchover delay? A: Fail-over to the redundant module occurs seamlessly within the controller’s supervisory cycle.

Q: How is per-channel fail-safe configured? A: FAILOPT parameters are set via system software, defining output states during fault conditions.

Field Installation Guidelines

  • Mount securely in Series 8 IOTA assemblies with proper mechanical engagement.
  • Maintain shielded cabling for analog outputs to minimize EMI.
  • Separate digital and analog wiring to reduce cross-talk.
  • Verify backplane connector alignment before energizing.
  • Observe environmental limits of -40 to +60 deg C and non-condensing humidity up to 95%.
