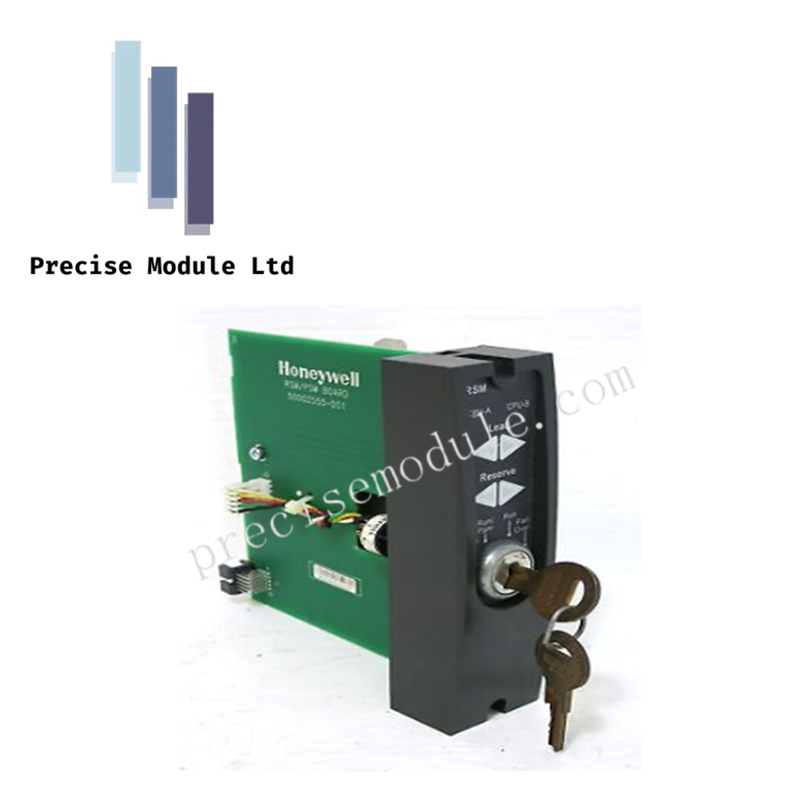

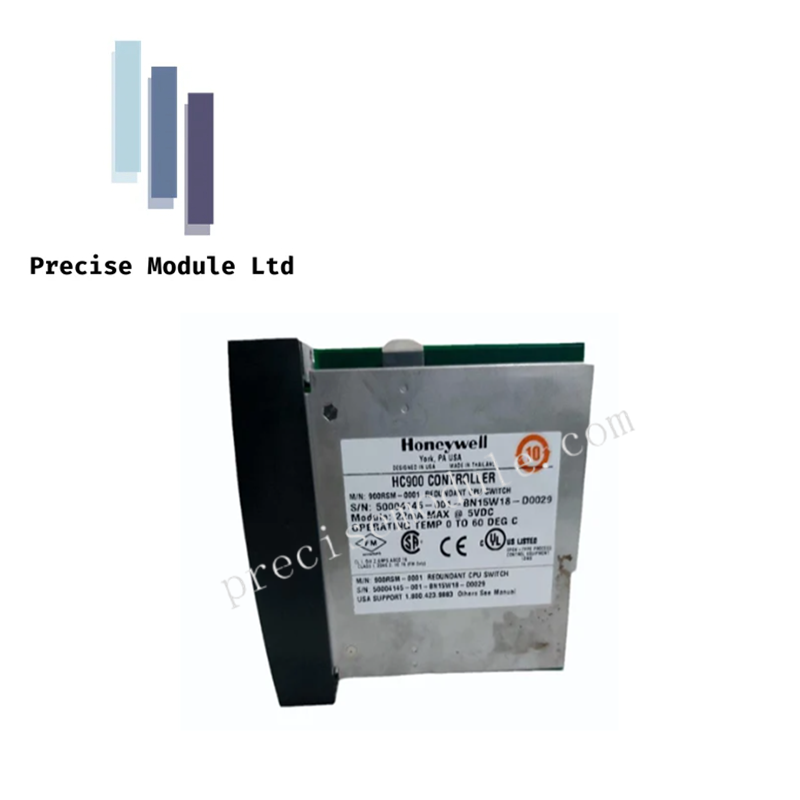

Honeywell 900RSM-0001 Redundant CPU Switch Module

The Honeywell 900RSM-0001, also cataloged as the 900RSM Redundant CPU Switch Module, operates as a dedicated hardware component for hot-standby CPU switchover management within Honeywell ControlEdge HC900 control systems. The module coordinates 1:1 redundant controller operation, supervises processor redundancy status, and supports continuous control execution during primary-to-standby processor transitions.

Hardware Specifications

Redundant Controller Switchover Architecture

The 900RSM-0001 functions as the redundancy management interface within ControlEdge HC900 systems utilizing dual CPU configurations. The module coordinates communication between primary and standby processors, enabling hot-standby operation without requiring interruption of normal controller execution.

During redundant operation, processor status information is continuously exchanged to maintain synchronization between active and standby CPUs. If the active controller becomes unavailable, the redundancy architecture permits transfer of control responsibility to the standby processor according to the configured redundancy strategy of the HC900 platform.

Frequently Asked Questions

Q: What is the primary function of the 900RSM-0001 module?
A: The module manages redundant CPU operation and processor switchover functions within Honeywell ControlEdge HC900 controller systems.

Q: Does the module support hot-standby redundancy?
A: Yes. The module is designed for 1:1 hot-standby CPU redundancy configurations.

Q: Can the module be installed on DIN rail assemblies?
A: Yes. The module supports both DIN rail mounting and panel mounting installations.

Field Installation Guidelines

• Install the module only within compatible Honeywell ControlEdge HC900 redundant controller architectures.

• Verify correct placement according to the controller redundancy layout before energizing the system.

• Confirm stable 5 VDC power availability prior to commissioning.

• Secure all redundancy communication connections before enabling controller synchronization.

• Route communication wiring separately from high-voltage or high-current conductors.

• Maintain cabinet environmental conditions within the specified temperature and humidity limits.

• Inspect module connectors periodically for loosening caused by vibration or maintenance activities.

• Validate redundancy status and switchover diagnostics after installation and during scheduled maintenance intervals.
