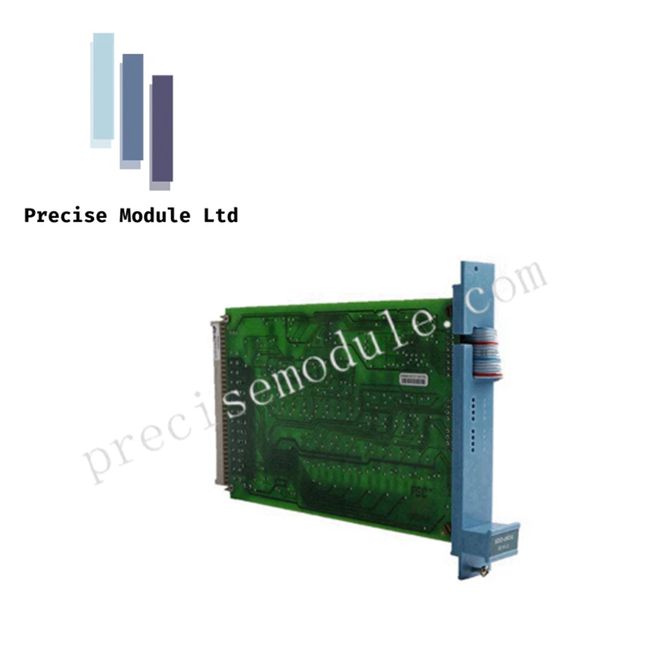

Honeywell FC-IO-0001 SIL 3 I/O Extender Bus Module

Product Description

Overview

The Honeywell FC-IO-0001 is a high-performance Input/Output Extender Module designed to expand and manage communication between the central Safety Manager controller and distributed I/O chassis. Also known as an I/O Bus Driver or Link module, it ensures reliable data transfer from sensors and actuators to the Control Processor Module (CPM) in safety-critical industrial environments. Certified for SIL 3, it is engineered to maintain the integrity of large-scale, redundant safety systems.

Key Features

High-Speed Data Handling

• Bus Extension Capability: Efficiently extends the internal I/O bus to support additional modules without impacting performance.

• Synchronized Communication: Guarantees that input signals across multiple racks are time-aligned for precise event sequencing (SOE).

Safety and Reliability

• SIL 3 Compliance: Meets the highest industrial safety standards to prevent undetected failures in safety loops.

• Fault Isolation: Prevents bus errors from propagating to the main controller, maintaining operational continuity.

Robust Design

• Galvanic Isolation: Protects the controller from electrical surges and ground loops originating in I/O wiring.

• Low Power Usage: Designed for efficient operation, reducing heat output and extending system lifespan.

Diagnostics and Maintenance

• Status LEDs: Front-panel indicators provide real-time feedback on module health and bus link status.

• Hot-Swap Ready: In redundant systems, modules can be replaced online without interrupting critical processes.

Technical Specifications

Primary Applications

• Distributed Safety Racks: Enables multi-rack connectivity in large plants such as refineries and power stations.

• Redundant Safety Links: Maintains system availability during cable or module failures.

• Emergency Shutdown (ESD) and Fire & Gas (F&G): Supports high-volume input/output signals for plant-wide safety monitoring.

FAQ

Q: Can the FC-IO-0001 be installed in an online system?
A: Yes, it supports hot-swapping in redundant safety architectures without process interruption.

Q: Does this module provide galvanic isolation?
A: Yes, it isolates the controller from electrical noise and surges in the I/O wiring.

Q: What safety integrity level is supported?
A: The module is certified to SIL 3 standards according to IEC 61508.

Comparison to Similar Models

• FC-IO-0002: Offers additional bus link channels for very large distributed I/O networks.

• FC-IO-0000: Basic I/O extender for smaller rack configurations with lower channel requirements.
