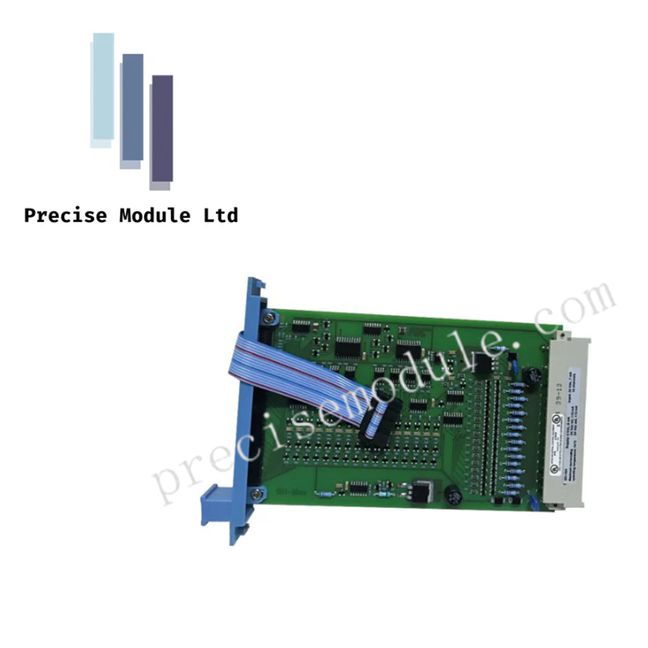

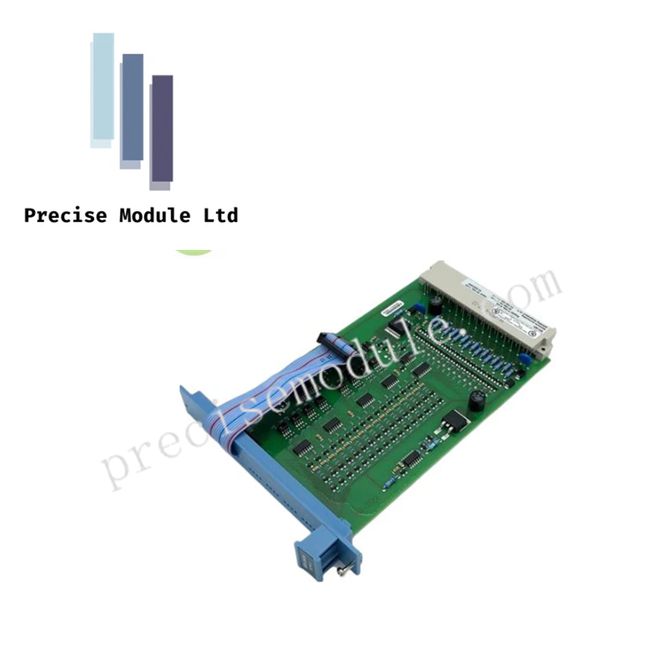

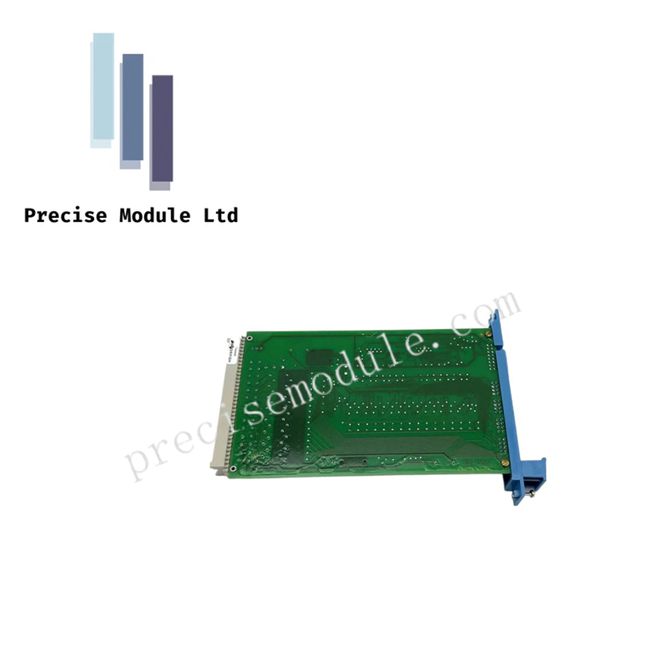

Honeywell FC-SDI-1624 SIL 3 Safe Digital Input Module

Product Description

Overview

The Honeywell FC-SDI-1624 (also referenced as SDI-1624) is a high-density Safe Digital Input (SDI) module engineered for integration with Honeywell Safety Manager and Fail Safe Control (FSC) systems. Designed for safety-critical applications, it monitors digital field signals with the highest integrity and reliability. The module is fully certified for SIL 3 applications, ensuring that emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS) operate safely under all conditions.

Key Performance Features

Safety and Diagnostics

• SIL 3 Certified: Suitable for high-integrity safety loops.

• Continuous Self-Testing: Performs internal diagnostics every few milliseconds to detect faults in hardware or signal lines.

• Short-Circuit Detection: Each input channel is protected against shorts to ground or external power sources.

Field Signal Monitoring

• Open and Short Circuit Detection: Configurable with end-of-line resistors for monitoring sensor wiring integrity.

• Galvanic Isolation: Electrical isolation separates field inputs from internal system logic, preventing surge or noise damage.

Operational Reliability

• Low Power Consumption: Optimized to reduce heat and minimize cooling requirements in control cabinets.

• Hot-Swap Support: Allows replacement in redundant configurations without interrupting the safety process.

• Status Indicators: Front-panel LEDs for each channel show input state and module health at a glance.

Technical Specifications

Applications

• Emergency Shutdown (ESD): Monitoring critical trip and safety signals.

• Fire & Gas Systems (F&G): Interfaces with flame, smoke, and gas detectors.

• Burner Management Systems (BMS): Verifies valve positions and flame detection.

• Critical Process Interlocks: Ensures safe operating conditions before process sequences continue.

FAQ

Q: Can the FC-SDI-1624 detect wiring faults?
A: Yes, it monitors open circuits and short circuits when used with appropriate EOL resistors.

Q: Is this module hot-swappable?
A: Yes, in redundant configurations it can be replaced without interrupting the safety system.

Q: What safety certification does this module have?
A: It is certified to SIL 3 according to IEC 61508 standards.

Comparison to Similar Models

• FC-SDI-1608: Supports fewer channels (8), suitable for smaller I/O racks.

• FC-SDI-1632: Higher channel density (32 channels) for larger process control systems.
