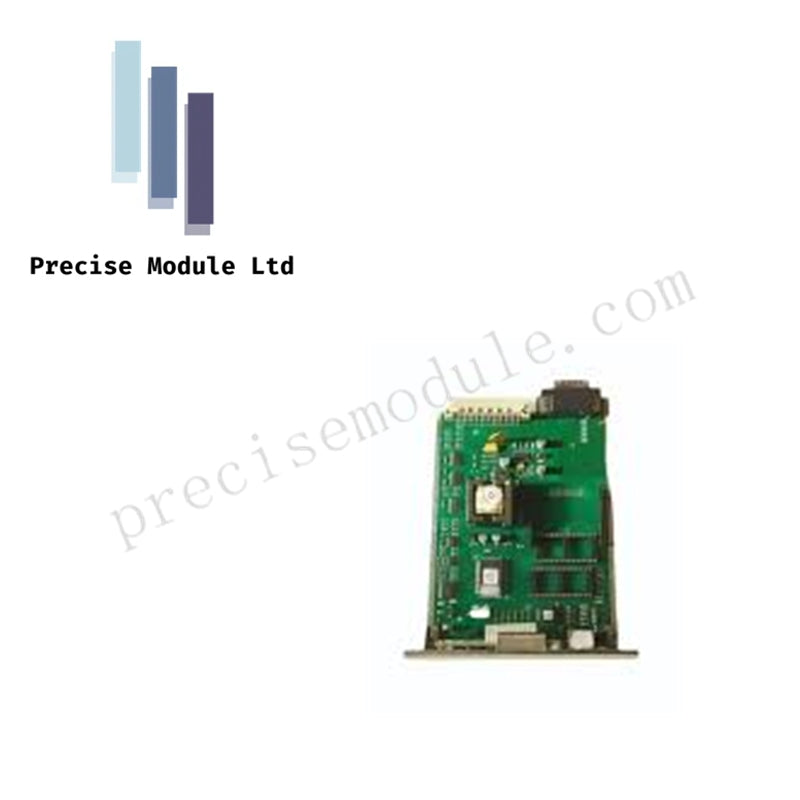

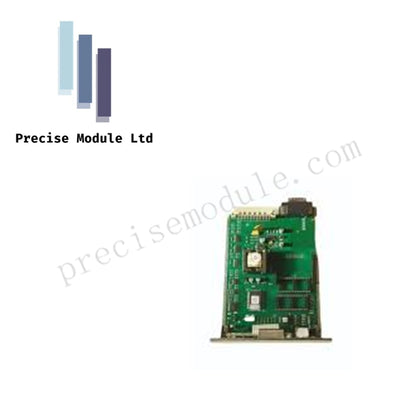

Honeywell FC-SDO-0824 Digital Output Module | Safety Manager SIL 3

Product Description:

The Honeywell FC-SDO-0824 is a high-safety Digital Output Module designed for integration with Honeywell's Safety Manager and Safety Manager SC systems, formerly known as Fail-Safe Control (FSC). As an essential component of Safety Instrumented Systems (SIS), it ensures reliable control of final elements such as solenoid valves, motors, and emergency shutdown (ESD) devices, critical to maintaining process safety in high-integrity applications.

The FC-SDO-0824 is certified for use in SIL 3 safety loops, offering robust performance, safety diagnostics, and extensive fault tolerance. The module supports 8 independent digital output channels, each capable of handling 24 VDC loads up to 2A per channel, making it ideal for complex safety systems that require precise, fail-safe operation.

Key Features:

• High-Safety SIL 3 Certification: Suitable for high-integrity safety loops, meeting the strict requirements of IEC 61508 for SIL 3 applications.

• Redundancy & Fault Tolerance: Supports 1oo2 (one-out-of-two) redundancy configurations, enhancing system availability and fault tolerance.

• Short-Circuit Protection: Each channel features built-in short-circuit protection, automatically shutting down the affected channel to prevent damage to the module.

• Hot-Swappable: Designed for hot-swap functionality, allowing for safe module replacement without system shutdown (with a redundant partner active).

• Continuous Self-Test: The module continuously self-tests its output transistors and read-back circuitry, ensuring that output states remain correct and safe.

• Extensive Diagnostics: Integrated diagnostics include line monitoring for open circuits and short circuits, ensuring any wiring issues are immediately detected and reported.

Technical Specifications:

Safety & Diagnostics:

• Fail-Safe Operation: In the event of module failure or communication loss, all outputs are de-energized (turned OFF) by default, maintaining system safety.

• Line Monitoring: Constantly checks for open or short circuits in field wiring, providing real-time monitoring and alerts.

• Internal Diagnostics: Performs self-tests on output transistors and other internal components to ensure correct functionality.

Application Areas:

The FC-SDO-0824 is widely used in industries where process safety is critical, including:

• Oil & Gas

• Chemical Processing

• Petrochemical

• Power Generation

FAQ:

Q: What is the maximum load currentFC-SDO-O824 per channel?
A: Each output channel can handle up to 2A of current at 24 VDC.

Q: Can the module be replaced without shutting down the system?
A: Yes, the FC-SDO-0824 supports hot-swapping, allowing it to be replaced while the system is online (with redundancy configured).

Q: How does the module ensure safety in case of a failure?
A: In case of a failure or loss of communication, all outputs default to a de-energized (OFF) state, maintaining fail-safe operation.
