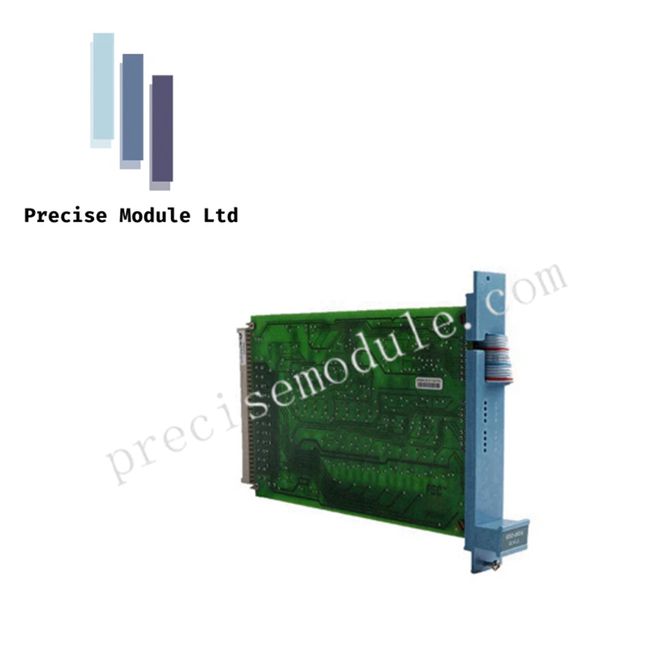

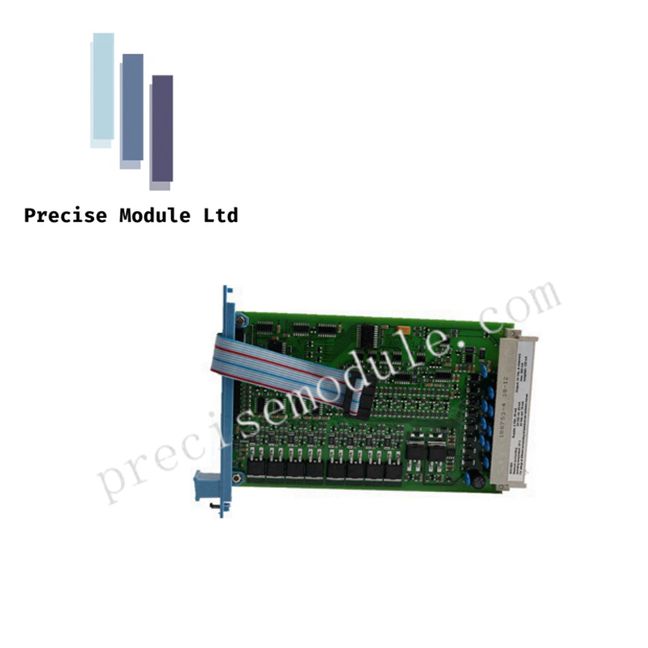

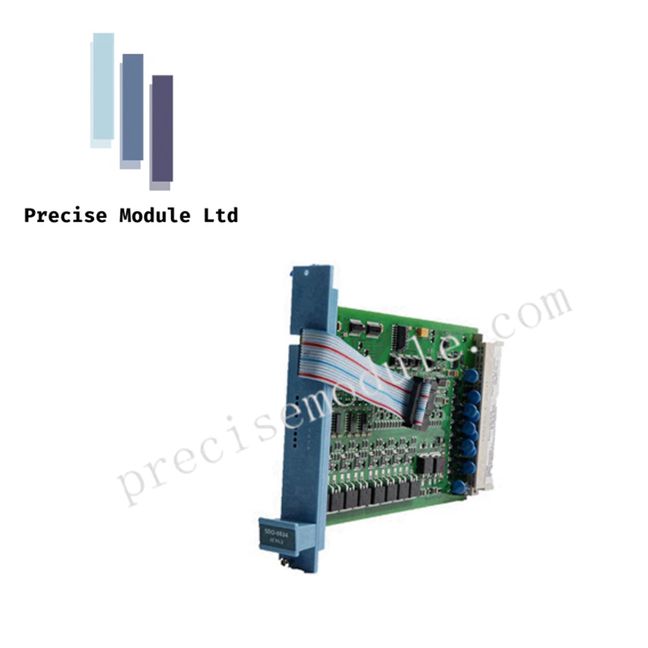

Honeywell FC-SDO-0824 SIL 3 Safe Digital Output Module 8-Channel SDO

Product Description

Overview

The Honeywell FC-SDO-0824 is a high-density, safety-rated Digital Output Module designed for the Honeywell Safety Manager platform. Engineered for safety-critical systems, it provides 8 independent output channels to control final elements such as valves, motors, and indicator lamps. This module is SIL 3 certified, offering robust fail-safe operation for emergency shutdown (ESD), Fire & Gas (F&G), and Burner Management System (BMS) applications.

Key Features

Safety and Reliability

• SIL 3 Certified: Meets IEC 61508 requirements for use in critical safety loops.

• Continuous Self-Diagnostics: Internal testing continuously monitors each channel and hardware components to detect short circuits, open circuits, or faults without interrupting the process.

Output Capabilities

• 8 Channels: Each output supports up to 0.55 A, with electronic short-circuit and overload protection.

• Lamp Load Support: Capable of driving indicator lamps up to 120 mA (approx. 2.9 W per channel).

• Voltage Drop: Less than 2 V at full load ensures stable and reliable operation of actuators.

Electrical Isolation & Robust Design

• Galvanic Isolation: Protects the Safety Manager bus from field-side electrical interference or surges.

• Low Off-Current: Under 0.1 mA minimizes leakage when outputs are off.

• Watchdog Input: Monitors module activity to ensure communication integrity.

Maintenance & Redundancy

• Hot-Swappable: In redundant 1oo2 configurations, the module can be replaced without shutting down the process.

• LED Indicators: Channel and module status LEDs provide immediate visual feedback for quick troubleshooting.

• Redundant Operation: Supports dual-module configurations to maintain continuous safety function even if one module fails.

Technical Specifications

Typical Applications

• Emergency Shutdown (ESD): Controls isolation and shutdown valves in high-risk process areas.

• Fire & Gas (F&G): Activates alarms, beacons, and suppression systems.

• Burner Management Systems (BMS): Manages fuel and air valve sequences in industrial boilers.

FAQ

Q: Can the FC-SDO-0824 be used in redundant systems?
A: Yes, it supports 1oo2 redundancy to maintain safety function even if one module fails.

Q: Are the outputs protected against short circuits?
A: Each output channel has built-in short-circuit and overload protection.

Q: Is this module hot-swappable?
A: Yes, hot-swapping is supported in redundant configurations without shutting down the process.

Comparison with Similar Modules

• FC-SDO-0816: 8-channel output module without SIL 3 certification.

• FC-SDO-1624: Higher channel density, suitable for large-scale safety racks.
