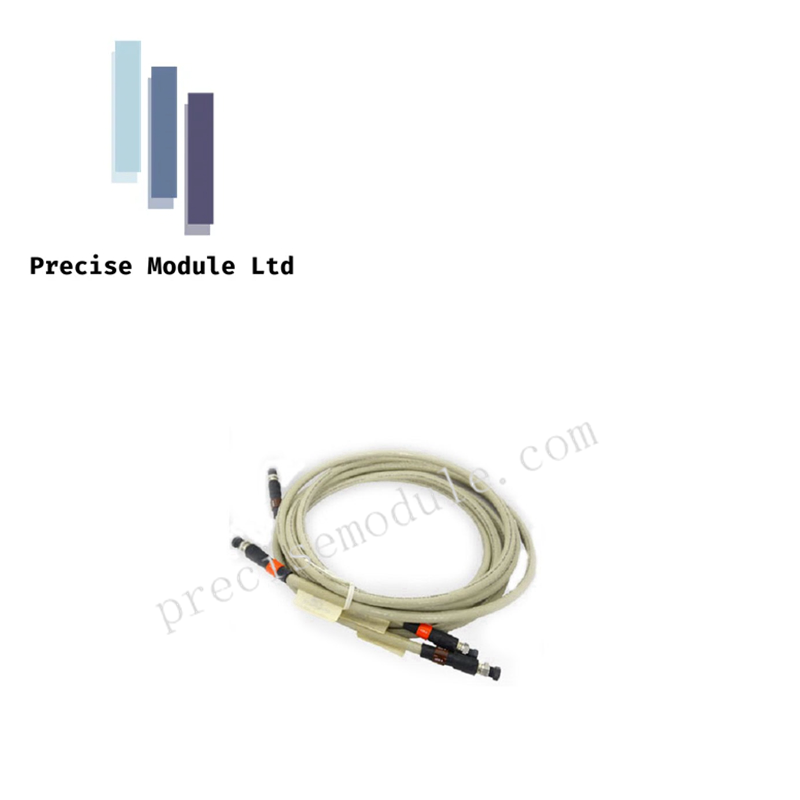

Honeywell MU-KLAM06 51304465-400 Internal Cabinet Cable

Honeywell MU-KLAM06 51304465-400 Internal Cabinet Cable

Configured for high-density signal and power distribution in Experion PKS and TDC 3000 cabinet architectures, the Honeywell MU-KLAM06 51304465-400 (51304465-400 Internal Cabinet Cable) provides direct physical/electrical execution.

Hardware Specifications

Process Control and Channel-to-Channel Isolation

High-density internal cabling maintains low-latency signal continuity between power adapter modules, I/O cards, and Field Termination Assemblies (FTAs) such as Modbus FTA units. Overall aluminum foil shielding with 100% coverage and an integrated drain wire suppresses high-frequency electromagnetic interference (EMI) generated by nearby power supplies and switching relays within the control cabinet. The individual conductor insulation design supports channel-to-channel isolation parameters up to the cable's maximum 600 V dielectric rating.

Frequently Asked Questions

Q: Can the MU-KLAM06 cable be routed outside the control cabinet to external junction boxes?

A: No. The MU-KLAM06 cable is specifically rated and length-optimized for internal cabinet interconnections between FTAs and local power adapter modules.

Q: What is the benefit of the overall foil shielding with integrated drain wire in cabinet wiring?

A: It provides 100% electrostatic and high-frequency EMI shielding coverage, preventing noise pickup across all 50 conductors without increasing overall cable outer diameter.

Field Installation Guidelines

• Inspect cable end connectors and pins prior to installation to ensure no bent terminals or debris are present.
• Route the cable through designated vertical or horizontal cabinet wire ducts, maintaining adequate separation from 120/230 VAC power distribution lines.
• Maintain a minimum bend radius of 40 mm (1.5 inches) along the cable path to prevent conductor fatigue or shield foil tearing.
• Connect the drain wire securely to the designated cabinet single-point chassis ground point at the FTA mounting plate.
• Seat multi-pin cable connectors firmly into the FTA and power adapter mating sockets, engaging locking latches or screws to resist cabinet vibration.
