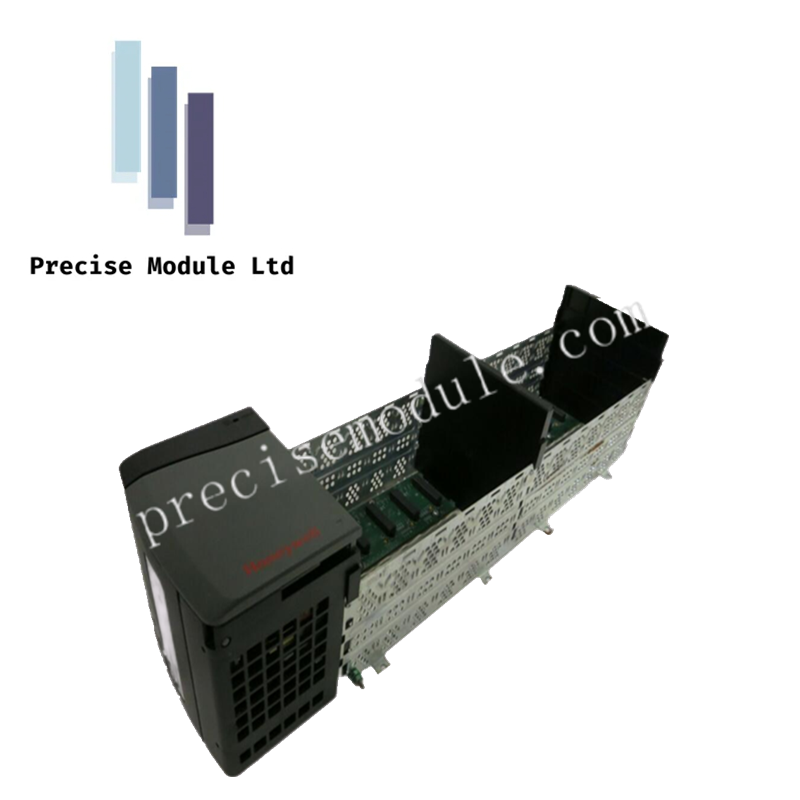

The Honeywell TK-FXX102, also cataloged as the TK-FXX102 10-Slot Rack, operates as a dedicated hardware component for module hosting, backplane power distribution, and controller integration within Honeywell Experion PKS and Experion LS platforms. The chassis provides ten module positions for controllers, power supplies, redundancy modules, and Series A I/O assemblies while distributing regulated backplane power across the installed system architecture.

Hardware Specifications

Backplane Power Distribution and Module Integration

The TK-FXX102 serves as the physical infrastructure for Honeywell Series A control system assemblies. The rack incorporates a passive backplane architecture that distributes system power and communication paths between installed controllers, network modules, power supplies, and I/O modules.

The chassis supports redundant power supply configurations and mechanical interlock arrangements for associated power adapters. High-speed backplane communication paths allow installed modules to exchange operational data while maintaining separation between field wiring and internal system interconnections.

Frequently Asked Questions

Q: How many modules can be installed in the rack?
A: The TK-FXX102 provides ten available slots for compatible Honeywell Series A modules.

Q: Does the rack support redundant power supplies?
A: Yes. The chassis is rated for redundant power supply configurations and associated mounting hardware.

Q: Are active electronic components integrated into the rack backplane?
A: No active processing functions are specified. The backplane is described as a passive architecture used for power and communication distribution.

Field Installation Guidelines

• Mount the rack on a rigid cabinet or panel surface.
• Verify adequate clearance for module insertion and removal.
• Balance module loading according to backplane current ratings.
• Secure protective earth connections before energization.
• Separate communication and power cable routing where practical.
• Verify backplane voltage availability during commissioning.
